l5*10/100M RJ45 ports, 512K port buffer.
lOperating temperature range of -40℃~+75℃, IP40 protection rating, wide temperature and high protection for harsh environments.
lCompliant with IEEE 802.3af/at standards, supporting up to 30W per port.

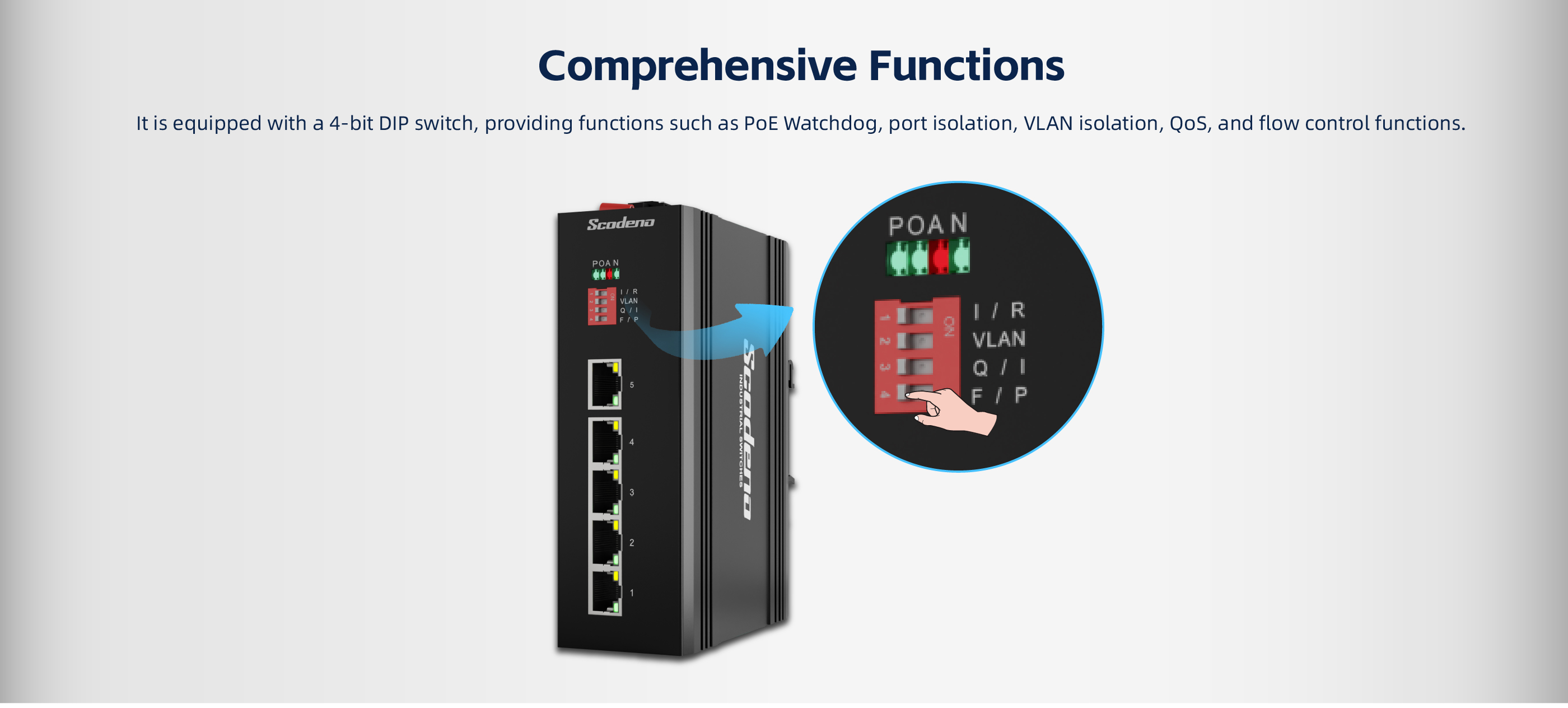

lFeatures 4-position DIP switch functionality and fanless design for silent and energy-efficient operation.

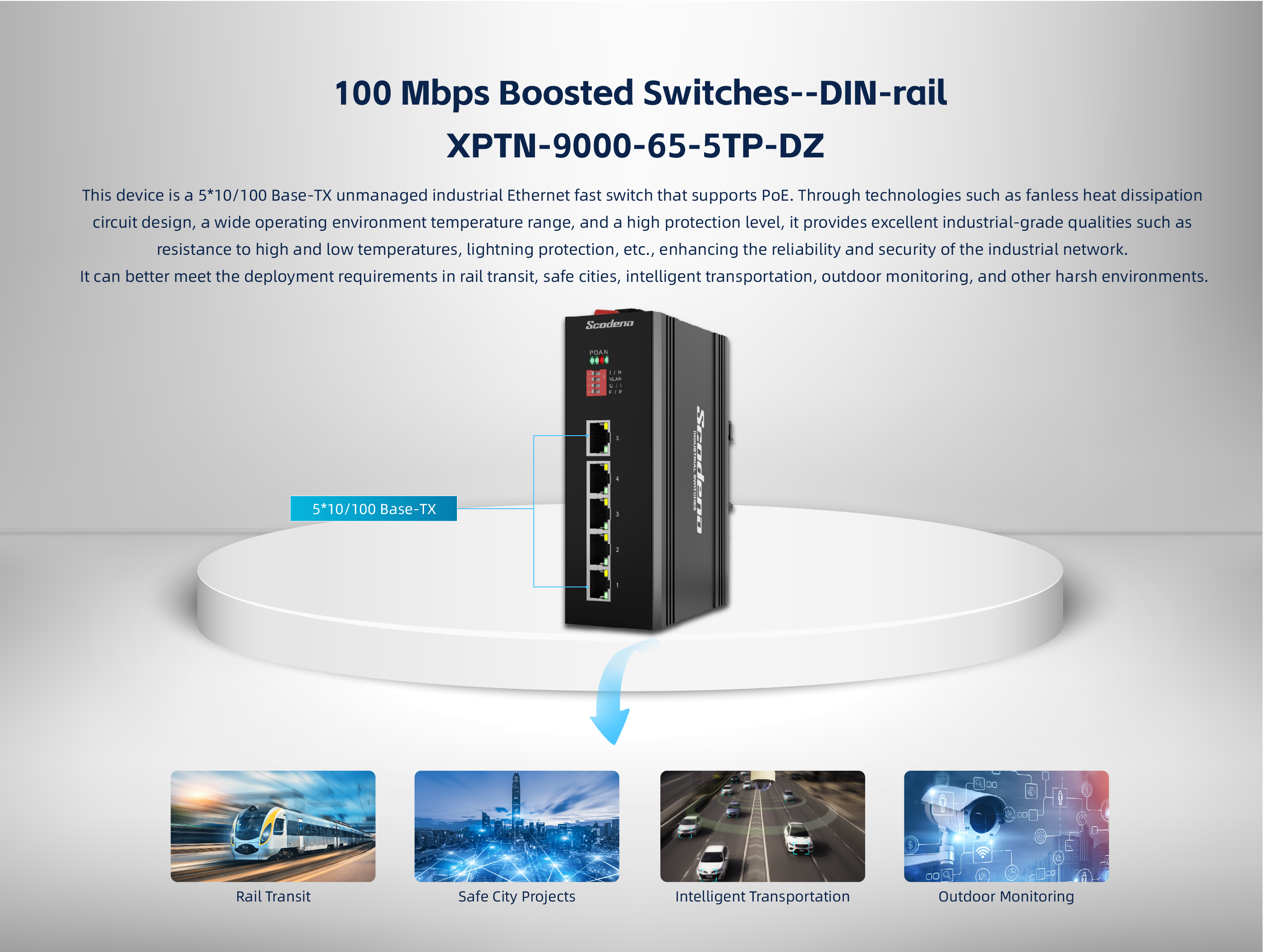

A Layer 2 switch with 5 Fast Ethernet ports, meeting line-speed forwarding and low-delay transmission requirements.
Hardware Specifications
Model | XPTN-9000-65-5TP-DZ |
Interface | 5*10/100M RJ45 ports |
Switching | 1.4Gbps |
Packets Forwarding Rate | 0.744Mpps |
MAC | 1K |
Port Buffer | 512K |
Forwarding Delay | <5us |
Power Supply | Phenix terminal, DC redundant input |
Input Voltage: DC12-30V | |
PoE Support | 1-4 ports support PoE |
PoE budget: 60W | |
IEEE802.3 af/at standard | |
PIN Sequence: 1,2+/3,6- | |
LED Indicators | PWR,OPT,NMC,ALM |
DIP Specification | PoE Watchdog 250m Extend Port Isolation VIP power supply & QoS |
Environment | Working Temperature: –40℃ ~ 85℃ |
Storage Temperature: –40℃ ~ 85℃ | |
Working Humidity: 5%~95% non-condensing | |
Storage Humidity: 5%~95% non-condensing | |
SIZE(W*D*H) | 143*104*48mm |
Weight | 0.45KG |

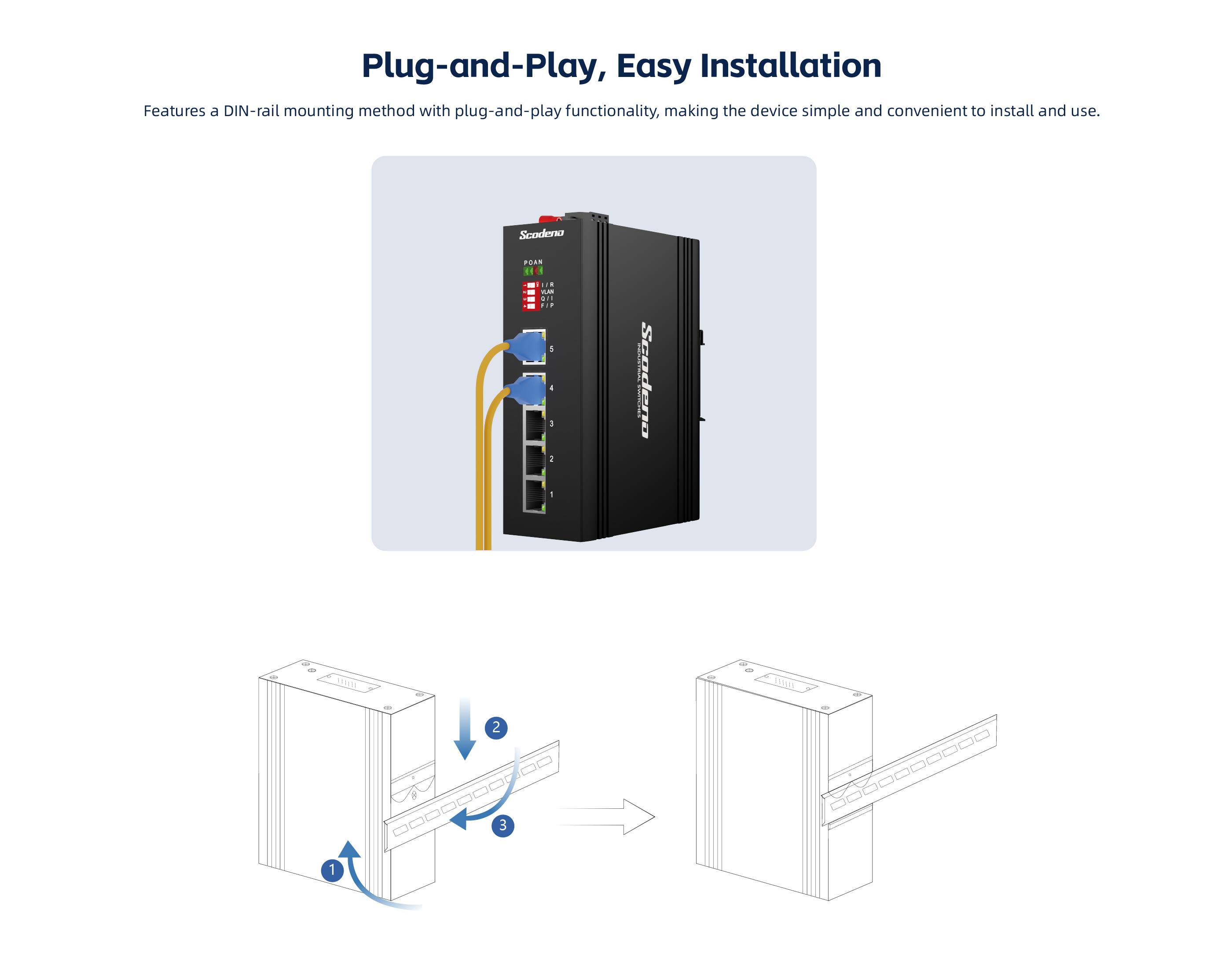

Installation Method | Din Rail |
Certificate Compliance | CE/FCC/RoHS |
MTBF | 100,000 hours |
