XPTN-9000-45-8TXm

Input voltage: DC12-58V

Working temperature:- 40℃ ~ +70℃

Shell: IP40 protection level, fanless design

Inspection report: CE/FCC/RoHS

Anti static: 8KV-15KV

M T B F :  100000 hours

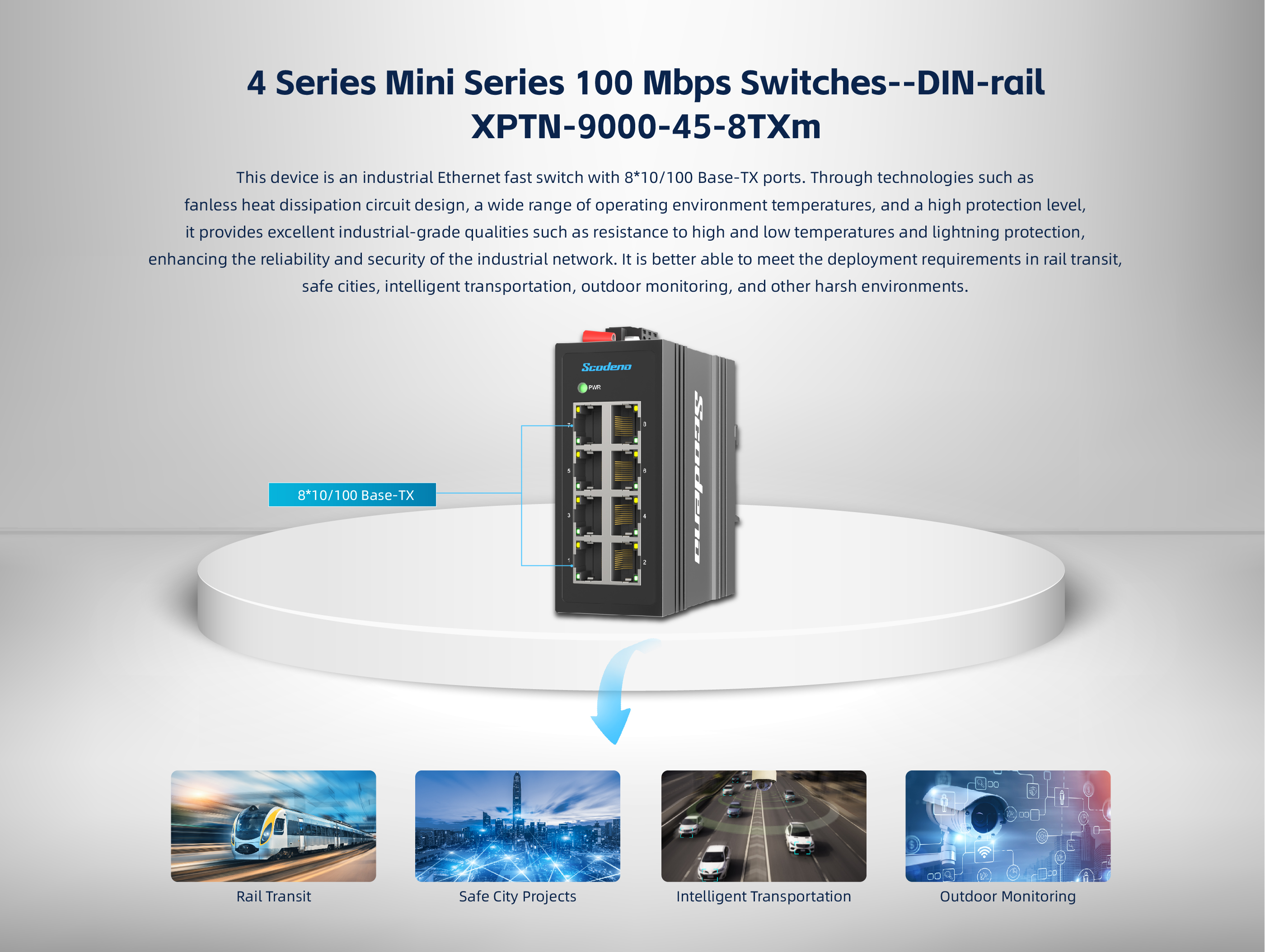

This device is an industrial Ethernet fast switch with 8 10/100M adaptive network ports.

Through fanless cooling circuit design, wide range working environment temperature,

high protection level and other technologies, it provides excellent industrial grade quality

such as high/low temperature resistance and lightning protection, enhancing the reliability

and security of industrial networks. It can better meet the deployment requirements of rail t

ransit, safe cities, intelligent transportation, outdoor monitoring, and other harsh environments.


Overview
Parameter
Application
Files

1


Provider Mode Ports
Fixed port8*10/100 Base-TX
Power interfacePhoenix terminal, dual power redundancy
LED IndicatorsPWR ,Link/ACT LED
Cable type&Transmission distance
Twisted-pair0-100m( CAT5e,CAT6)
Network Topology
Ring topologyNot Supported
Star topologysupport
Bus topologysupport
Tree Topologysupport
Electrical Specifications
input voltageDC12-58V
Total Power consumption<6W
Layer 2 Switching
Switching capacity1.8G
Packet forwarding rate1.33Mpps
MAC address table2K
Buffer512K
Forwarding delay<4us
MDI/MDIXsupport
Jumbo Framesupport 2048 Byte
Mechanical Dimensions
Product size41X91X95mm

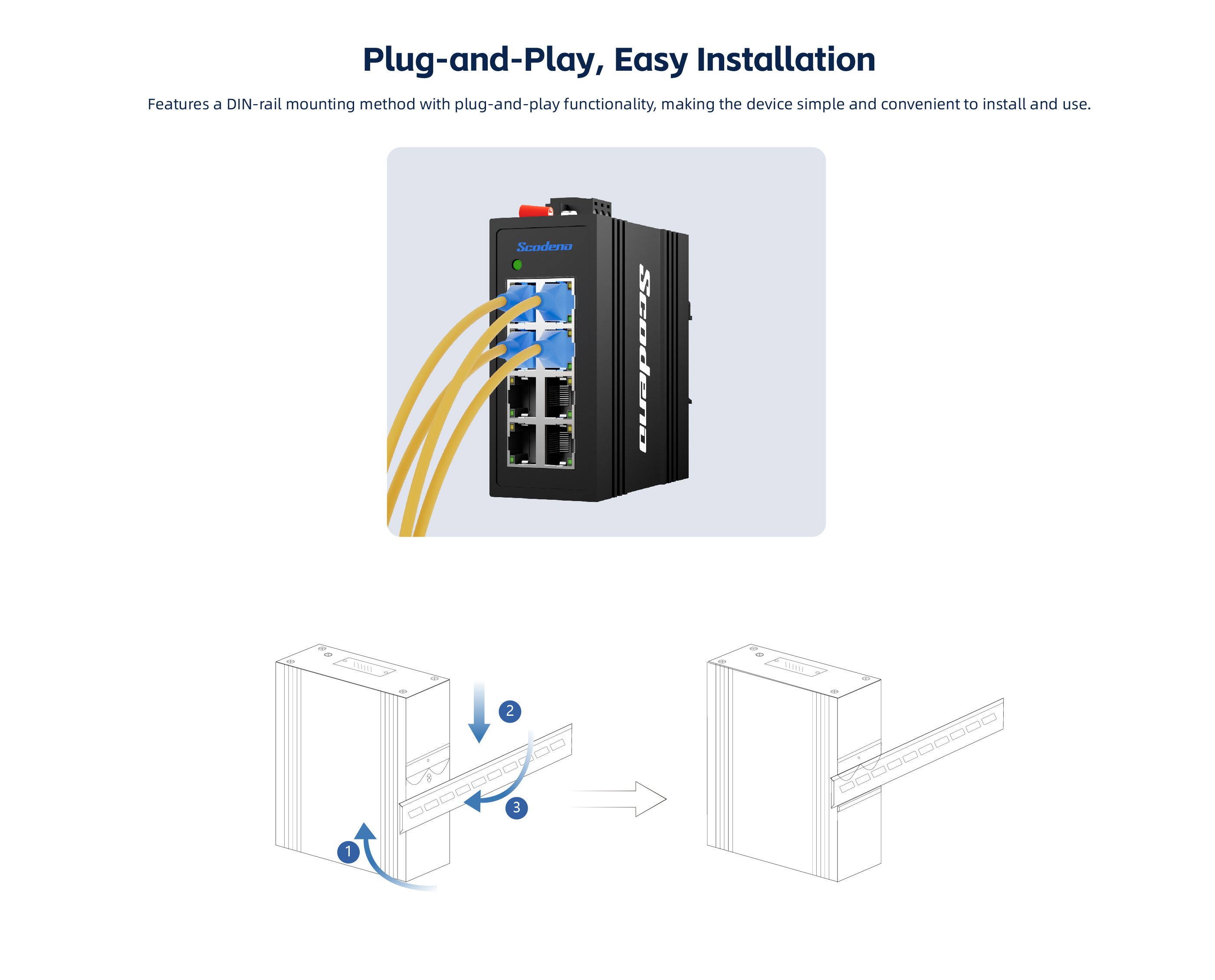

Installation MethodCard rail installation
Weight
Environment
about 0.37KG
Environment
Operating temperature-40℃ ~ +70℃
Storage temperature-40℃ ~ +70℃
Relative humidity10%~90% does not support non condensing
Thermal methodsFanless design, natural heat dissipation
MTBF100,000 小时
EMC&INGRESS PROTECTION
IP LevelIP40
Surge protection of PowerIEC 61000-4-5  Level 3 (4KV/2KV)( 8/20us)
Surge protection of Ethernet portIEC 61000-4-5  Level 3 (4KV/2KV)( 10/700us)
ESDIEC 61000-4-2  Level 4( 8K/15K)
Authentication
AuthenticationInspection reports and network access permits from the Ministry of Public Security and the Ministry of Industry and Information Technology CE/FCC/RoHS
Accessories
AccessoriesEquipment, terminals, certificate of conformity, instruction manual, power adapter (optional)
Optional model
XPTN-9000-45-8TXm8 10/100M adaptive electrical ports
