XPTN-9000-45-8GT

Input voltage: DC12-58V

Working temperature: -40 ℃~+75 ℃

Shell: IP40 protection level, fanless design

Inspection report: CE/FCC/RoHS

Anti static: 8KV-15KV

M T B F: 100000 hours

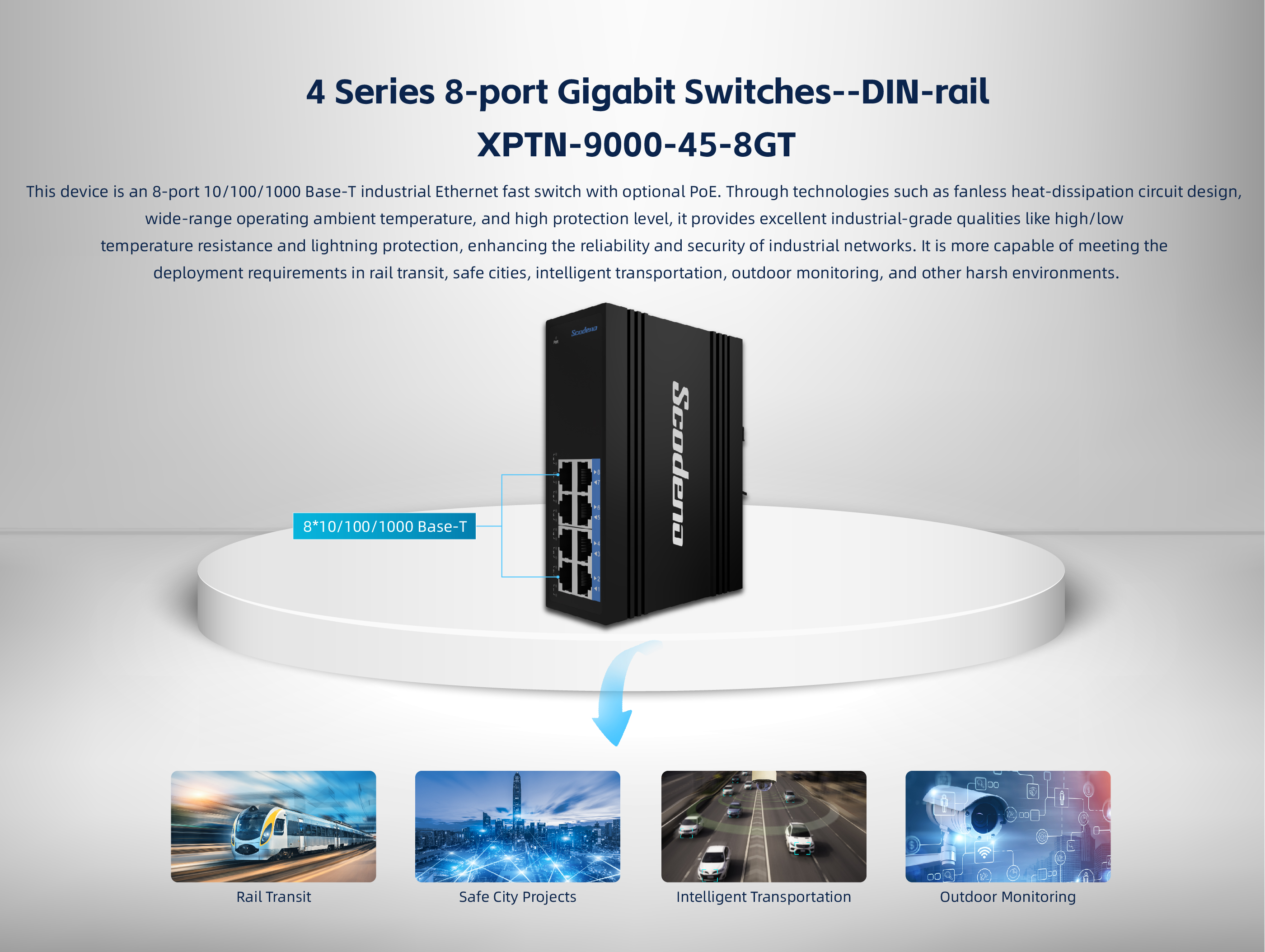

This device is an industrial Ethernet fast switch with 8 10/100/1000M adaptive

Ethernet ports, with optional POE. Through fanless cooling circuit design, wide

range working environment temperature, high protection level and other technologies,

it provides excellent industrial grade quality such as high/low temperature resistance

and lightning protection, enhancing the reliability and security of industrial networks.

It can better meet the deployment requirements of rail transit, safe cities, intelligent

transportation, outdoor monitoring, and other harsh environments.


Overview
Parameter
Application
Files

1

Provider Mode Ports
Fixed port8*10/100/1000 Base-T
Power interface

Phoenix terminal, dual power redundancy

LED IndicatorsPWR ,Link/ACT LED
Cable type&Transmission distance
Twisted-pair0-100m( CAT5e,CAT6)
Network Topology
Ring topology

Not Supported

Star topologySupported
Bus topologySupported
Tree TopologySupported
Electrical Specifications
input voltageDC12-58V  PoE 48-58V
Total Power consumptionTotal power<5W; PoE full load<245W
PoE Support
PoE port1-8
PoE Protocol802.3af ,802.3at
Pin Assignment1,2,3,6
Layer 2 Switching
Switching capacity20G
Packet forwarding rate14.88 Mpps
MAC address table16K
Buffer2M
Forwarding delay<5us
MDI/MDIXsupport
Jumbo FrameSupports 10KBytes
Mechanical Dimensions
Product size46X104X143mm

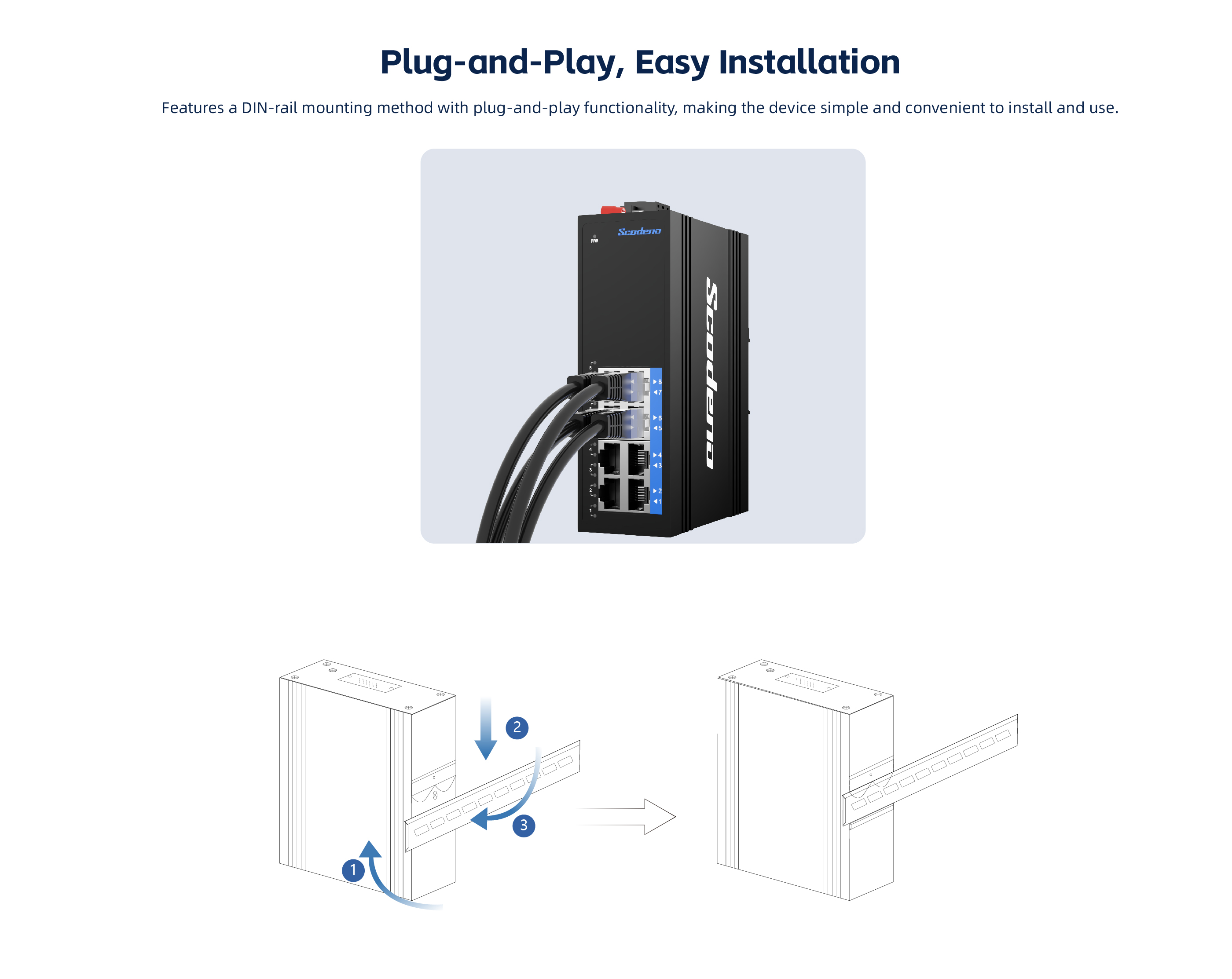

Installation MethodCard rail installation
Weight0.55KG
Environment
Operating temperature-40℃ ~ +75℃
Storage temperature-40℃ ~ +75℃
Relative humidity10%~90% does not support non condensing
Thermal methodsFanless design, natural heat dissipation
MTBF100,000 hour
EMC&INGRESS PROTECTION
IP LevelIP40
Surge protection of PowerIEC 61000-4-5  Level 3 (4KV/2KV)( 8/20us)
Surge protection of Ethernet portIEC 61000-4-5  Level 3 (4KV/2KV)( 10/700us)
ESDIEC 61000-4-2  Level 4( 8K/15K)
Authentication
AuthenticationInspection reports and network access permits from the Ministry of Public Security and the Ministry of Industry and Information Technology CE/FCC/RoHS
Accessories
AccessoriesEquipment, terminals, certificate of conformity, instruction manual, power adapter (optional)
Optional model
XPTN-9000-45-8GT8 10/100/1000M adaptive electrical ports (PoE optional)
