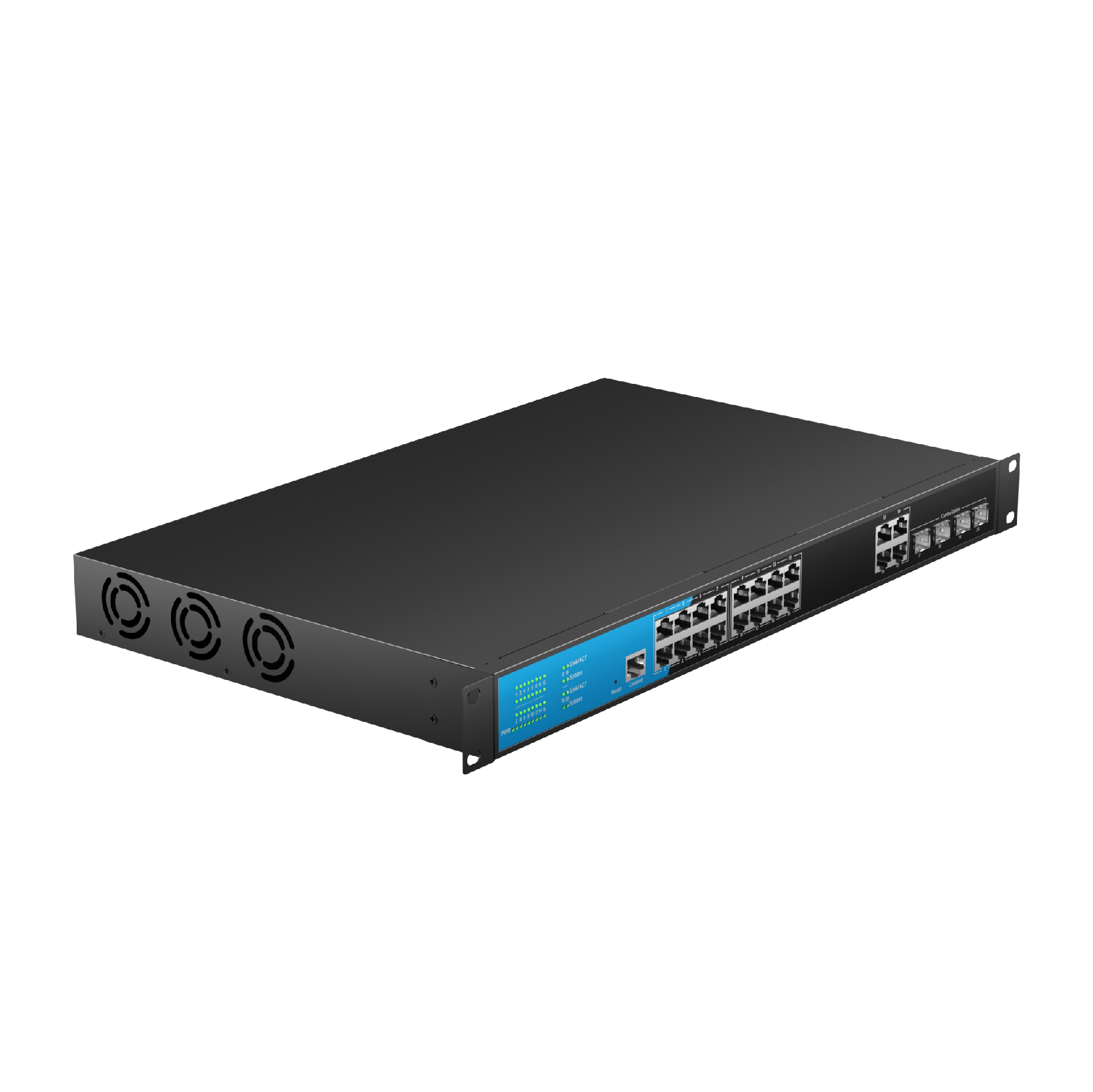

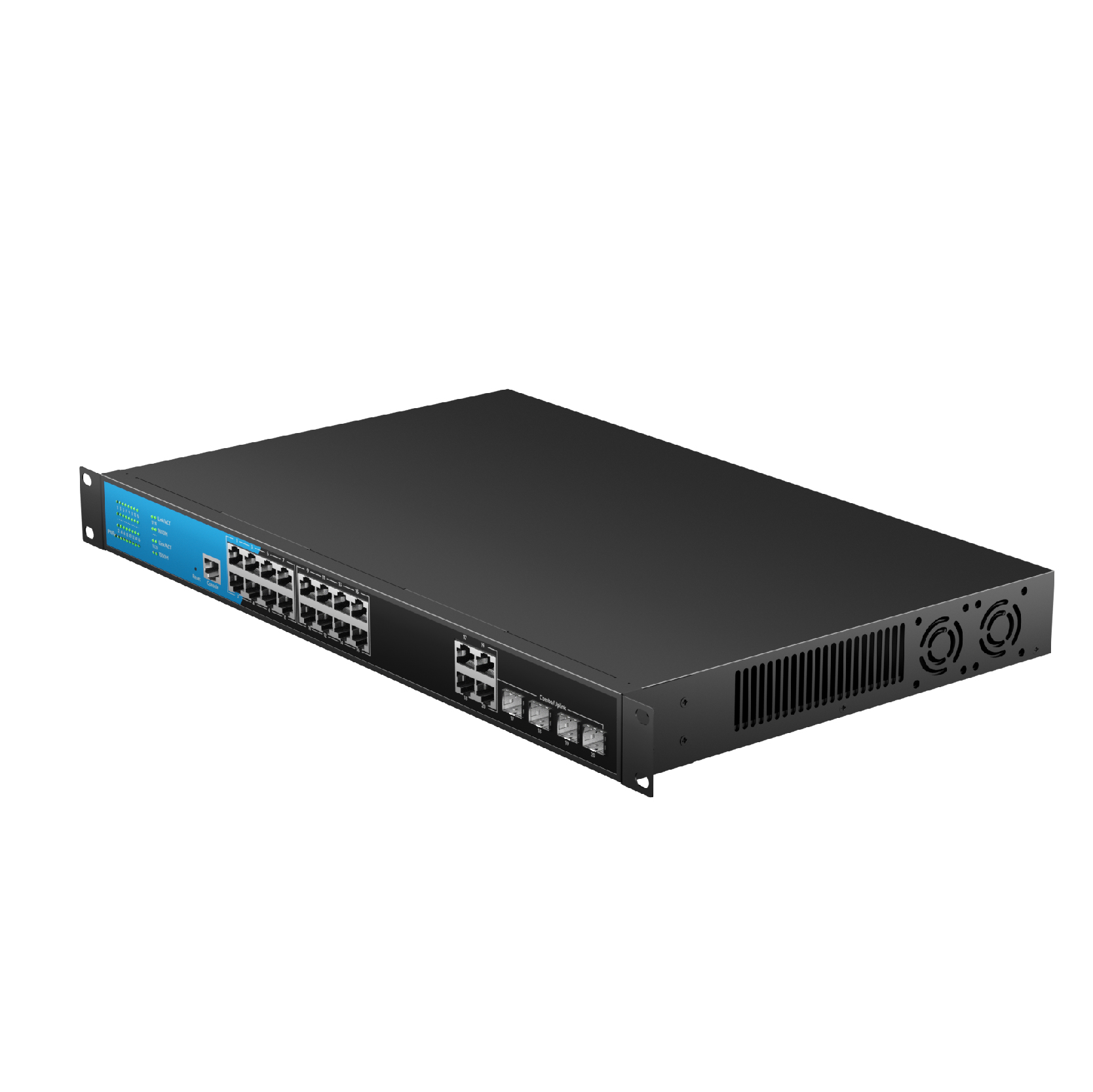

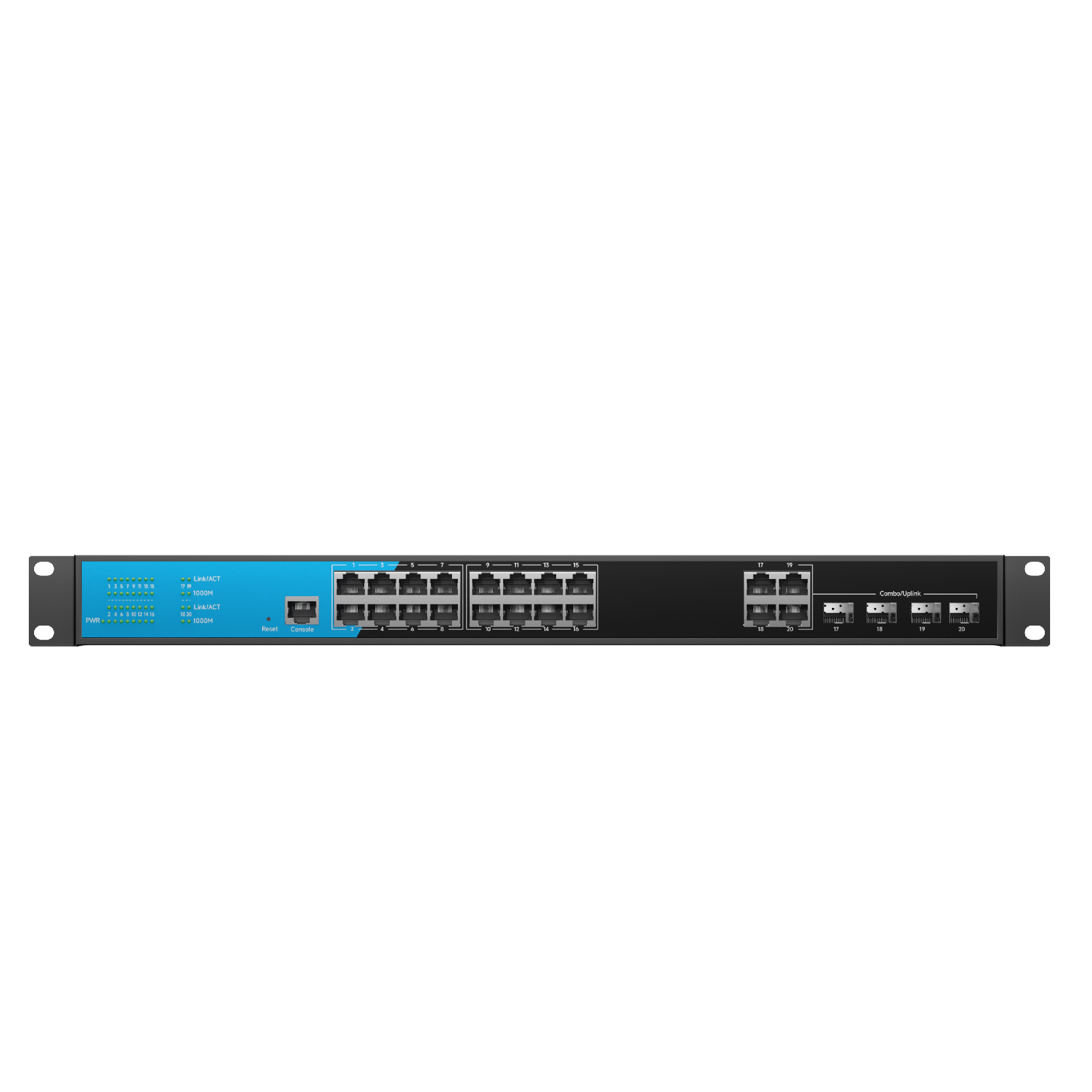

S200-20GCPM-B2C4-ACR

lSupports IEEE 802.3 af/at, PoE management, and PoE Watchdog;

l6KV port lightning protection;

lESD: contact 8KV, air 15KV;

l-10~50℃ wide operating temperature range;

lSupport static routing function;

lSupport L2 management functions such as VLAN, LLDP, LACP etc.;

lSupport rich security features such as 802.1X, AAA, Port Security, DHCP Snooping, Port Isolation, DAI etc.;

lSupport Telnet/SSH, SNMP, WEB UI, CLI.


The S200 series of management switches adopts low power consumption design, which meets the requirements of green environmental protection   and energy saving; Rich L2/L3 functional features to meet different business requirements; Powerful security policies and rich security features ensure network security; The management platform is simple and easy to use, greatly facilitating the operation and maintenance methods of management personnel.


Overview
Parameter
Application
Files

Shenzhen Scodeno Technology Co., Ltd.

| Hardware Features

Model

S200-20GCM-C4-ACR

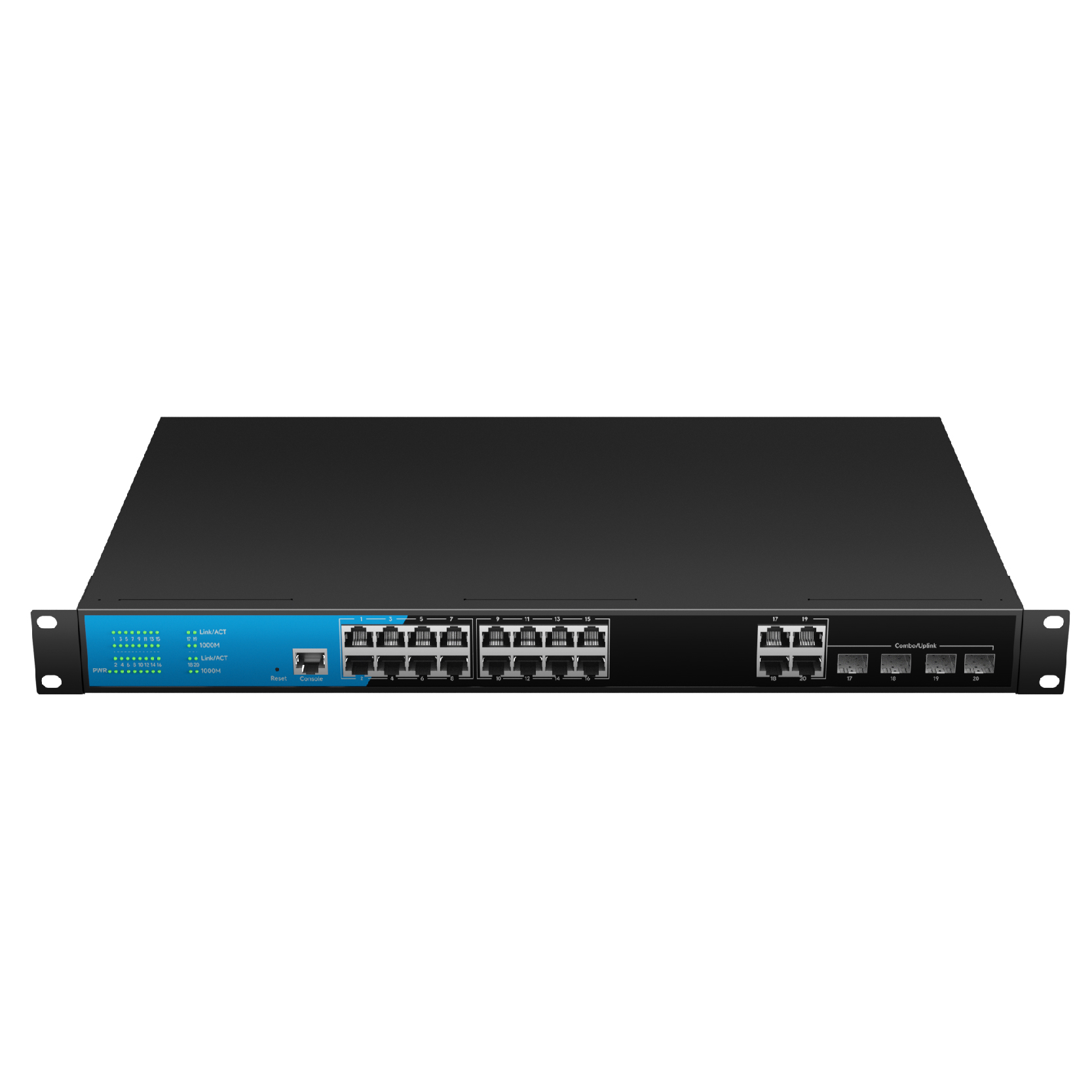

S200-20GCPM-C4-ACR

S200-20GCPM-B2C4-ACR

Interface

4*1000M Combo ports + 16*10/100/1000M RJ45 ports

1*Console Management

Switching Capacity

56Gbps

Packets Forwarding Rate

29.76Mpps

MAC Table

8K

Packet Buffer

4.1Mbits

Transfer Delay

<10us

Power Supply

AC100-240V 50/60HZ

Empty Load Power: <20W

LED Indicators

PWR, SYS,Link/ACT


Model

S200-20GCM-C4-ACR

S200-20GCPM-C4-ACR

S200-20GCPM-B2C4-ACR

PoE

——

1-16ports support PoE

1-16ports support PoE

1-2Ports support PoE++

IEEE 802.3 af/at standards

IEEE 802.3 af/at/bt standards

PoE power: 300W

PoE power: 300W

PIN Sequence: 1,2+/3,6-

PoE:PIN Sequence: 1,2+/3,6-

PoE++:PIN Sequence: 1,2,4,5+/3,6,7,8


Environment

Working Temperature: –10 ℃ ~ 50℃

Storage Temperature: –40 ℃ ~ 85℃

Working Humidity: 10%~95% non-condensing

Storage Humidity: 10%~95% non-condensing

Size(W*D*H)

440*280*44mm

Weight

3.38KG

3.4KG

3.4KG

EMC

Power Surge Protection: 6KV/2KV

Ethernet Port Surge Protection: 4KV/2KV

Anti-static Interference: 8KV/15KV

Free Drop: 0.5M

Certificate Compliance

CE/FCC/RoHS

| Software Specifications

Model

S200-20GCM-C4-ACR

S200-20GCPM-C4-ACR

S200-20GCPM-B2C4-ACR

VLAN

Support 4K IEEE 802.1Q VLAN

Support protocol VLAN

Support MAC VLAN

Model

S200-20GCM-C4-ACR

S200-20GCPM-C4-ACR

S200-20GCPM-B2C4-ACR

VLAN

Support voice VLAN

Support video VLAN

Support GARP

LACP

Support IEEE 802.3ad

Support static LACP

Support dynamic LACP

STP

Support IEEE 802.1d STP

Support IEEE 802.1w RSTP

Support IEEE 802.1s MSTP

Spanning Tree BPDU Filtering

Spanning Tree BPDU Guard

Spanning Tree Edge Port

LLDP

Support IEEE 802.1ab protocol

ERPS

Support ITUT G.8032 protocol

Port

Support Jumbo Frame

Support IEEE802.3X Flow Control

Support port statistics


Support Auto-MDI/MDIX

Multicast

Support IGMP Snooping

Support MLD Snooping

Support MVR


ACL

Support MAC Standard/Extended ACL

Support IPv4 Standard/Extended ACL

Support IPv6 Standard/Extended ACL

QoS

Support QoS Re-marking

Support Port Trust

Support Port Rate Limiting

Support Egress Queue Rate Limiting

Model

S200-20GCM-C4-ACR

S200-20GCPM-C4-ACR

S200-20GCPM-B2C4-ACR

QoS

Support SP, WRR scheduling algorithms

Support CoS, DSCP, IP Priority Mapping



DHCP

DHCP Interface Priority IP Binding

Support DHCP Snooping

Support DHCP Client

Support DHCP Server




L3 Route

IPv4 Management Address

IPV6 Management Address

Static IPv4 Route

Static IPv6 Route

ARP

Loopback Interface





Security

Support Management Channel Configuration

Support AAA

Support IEEE802.1X

Support MAC-Based IEEE802.1X

Support WEB-Based IEEE802.1X

Denial of Service Protection

Dynamic ARP Inspection(DAI)

IP Source Guard

Port Security

Port Isolation

DNS

Support DNS Client

Support DNS Server

Diagnosis

Support Console Logs

Support RAM logs

Support Flash logs

Support Port Mirroring(1:1,N:1)

Support Ping

Model

S200-20GCM-C4-ACR

S200-20GCPM-C4-ACR

S200-20GCPM-B2C4-ACR

Diagnosis

Support Traceroute

Support Cable Test

Support UDLD protocol

Support Optical Module Information




Management





Support User Management

Support System Log

Support Firmware Upgrade

Support File Upgrade

Support SNMP

Support WEB Management

Support Console

Support CLI

Support Telnet/SSH

Support SNTP Client

Support RMON

EEE

Support IEEE802.3az
