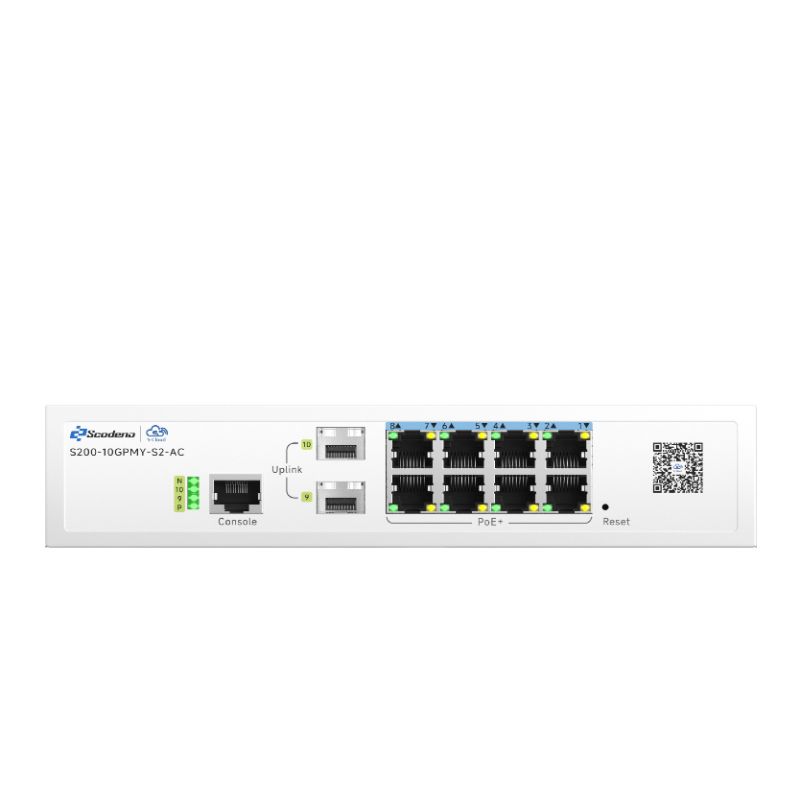

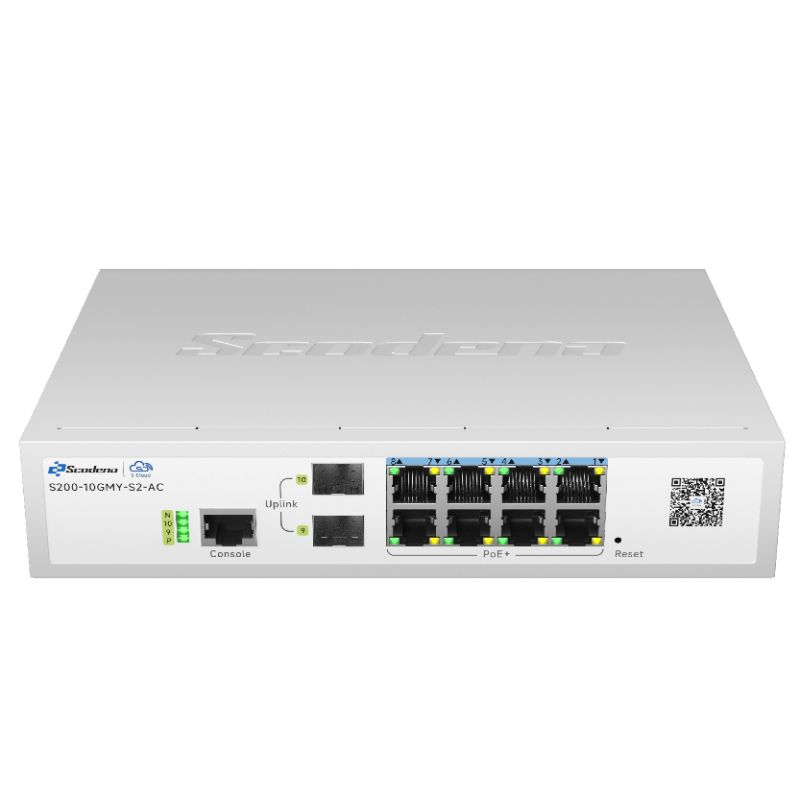

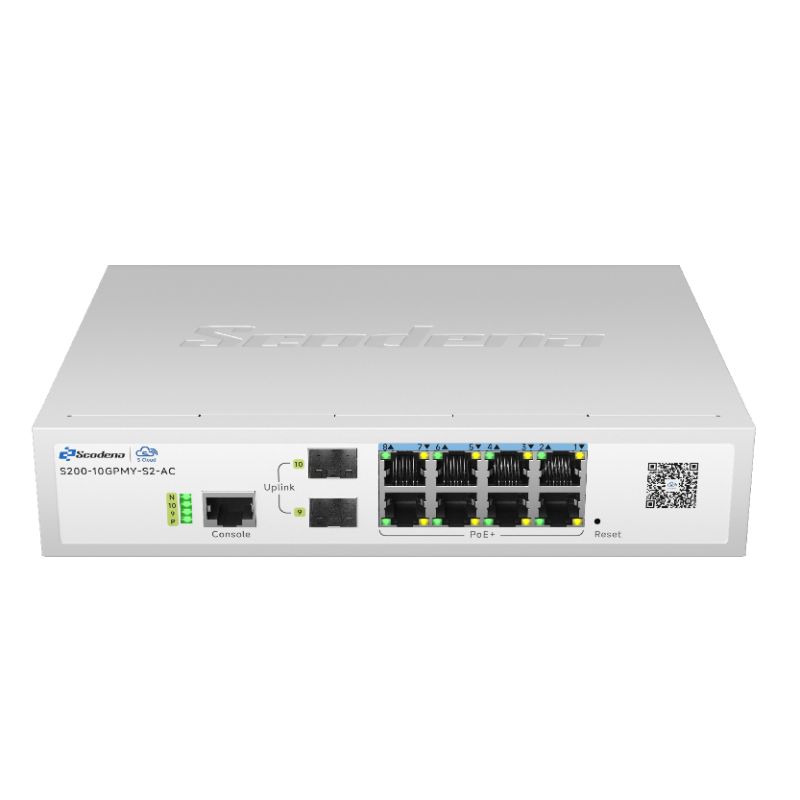

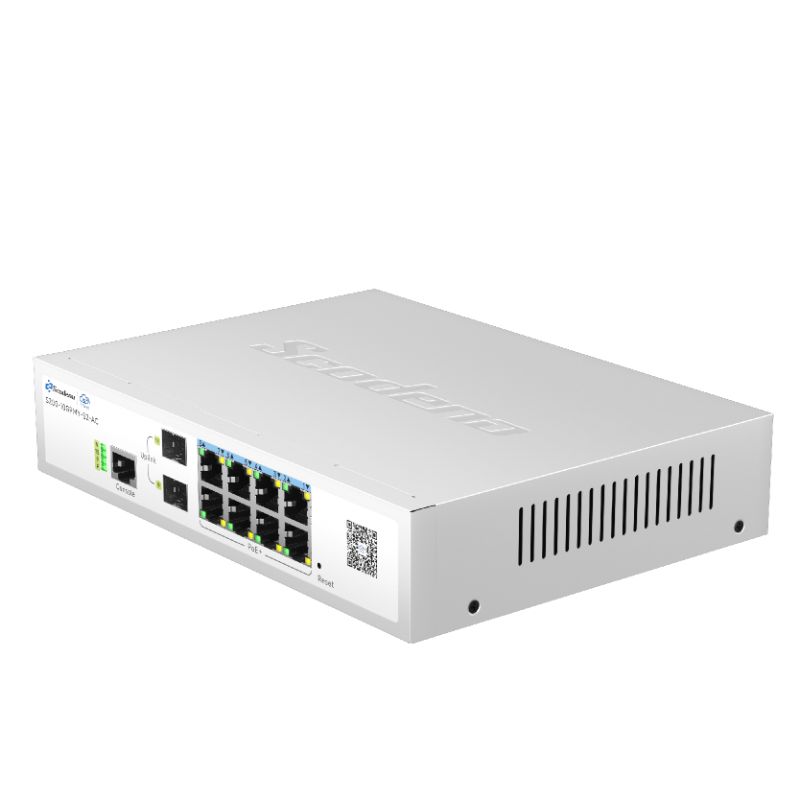

S200-10GPMY-S2-AC Gigabit Managed POE Switch

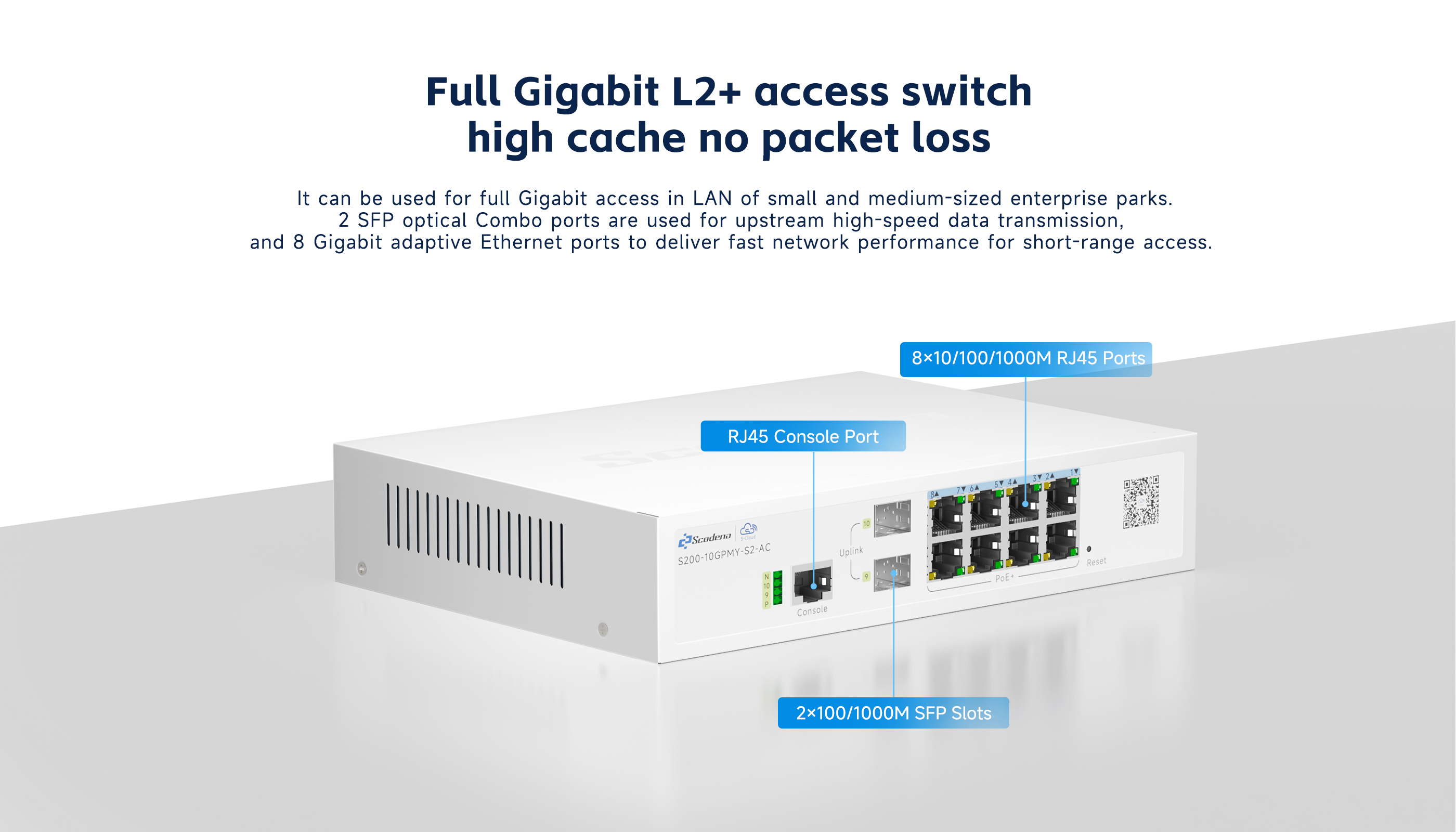

· 8*1000M RJ45 ports, 2*1000M SFP ports for uplink,4MB cache.

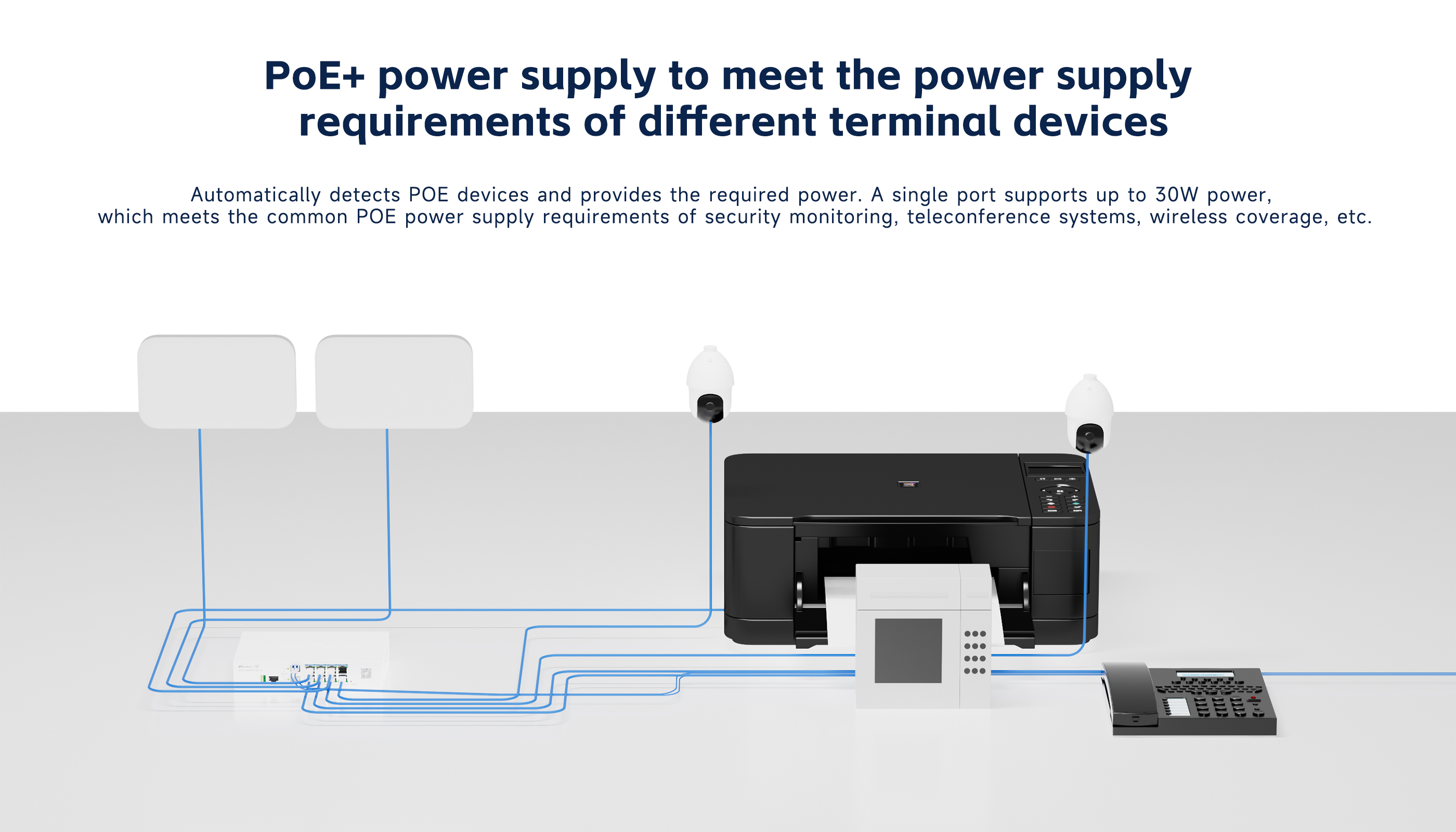

· In accordance with IEEE 802.3 af/at standard, single port support max 30W.

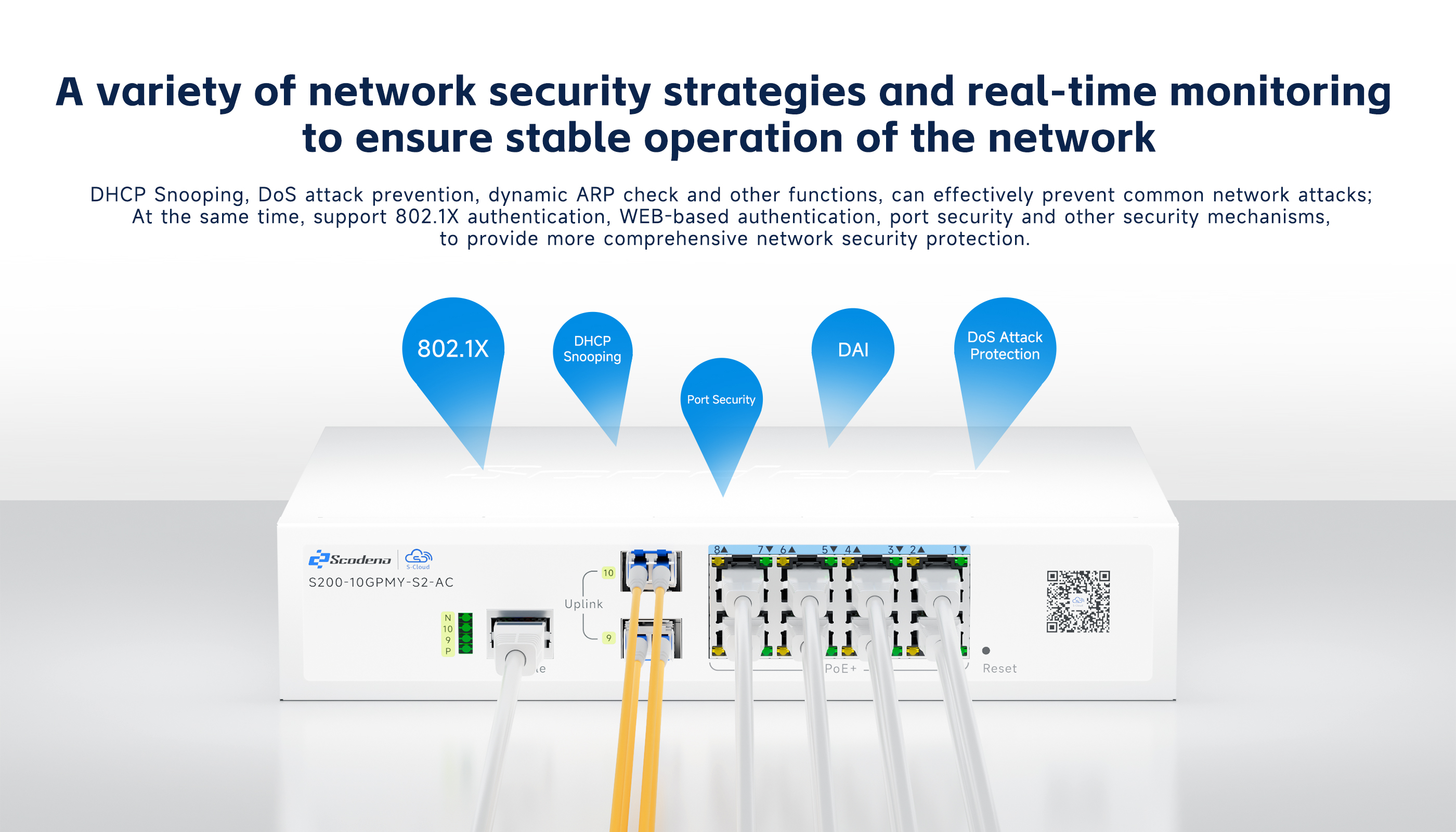

· Strong networking security policies,abundant safe features to protect networking.

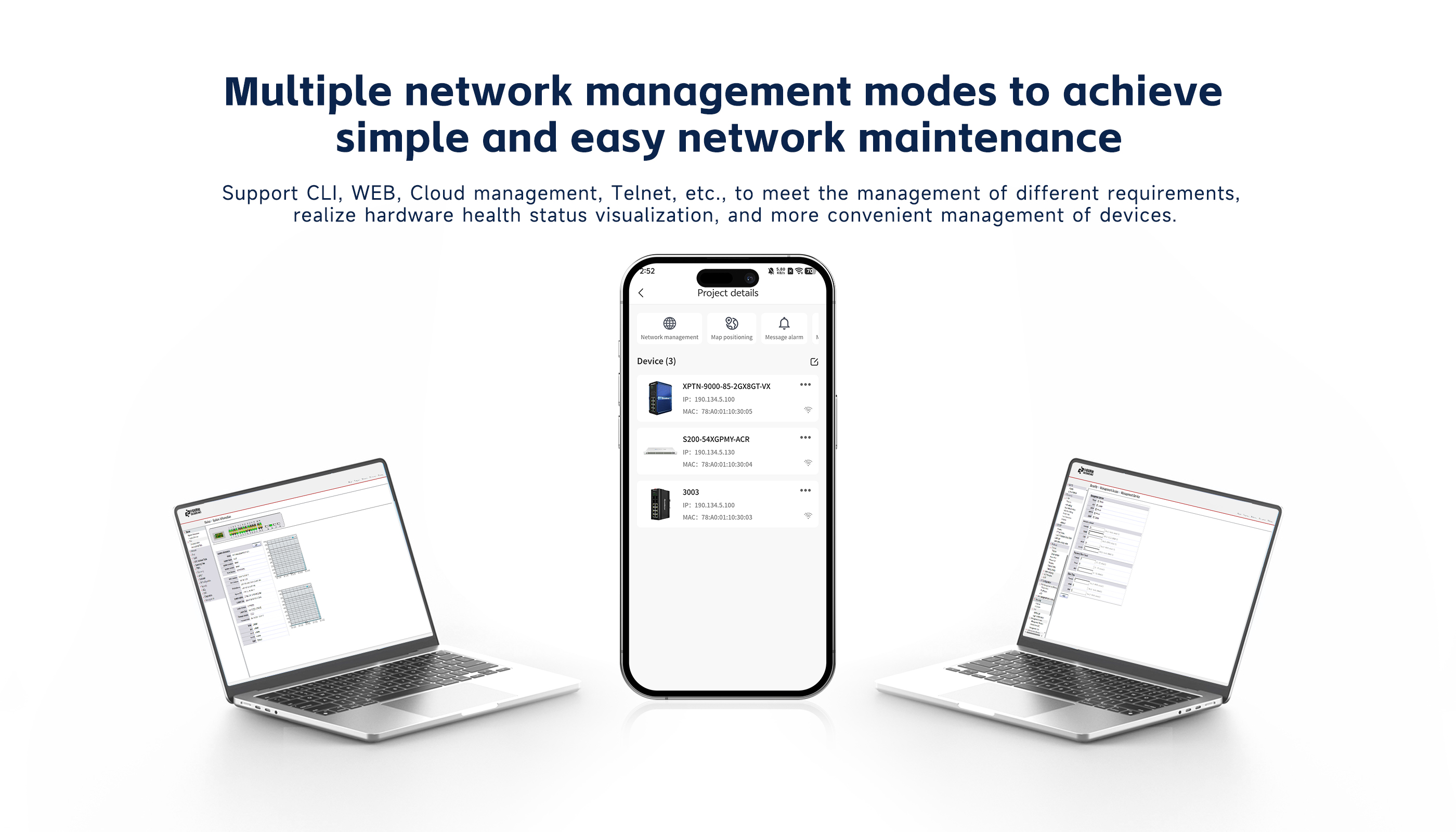

· Support CLI,WEB,Cloud multiple management methods.

· White shell, low power design, environmental protection and energy saving.

S200-10GPMY-S2-AC supports 8*10/100/1000Mbps adaptive RJ45 ports and 2*SFP optical Combo interfaces. Each RJ45 port supports auto-port switching and line-rate forwarding, complying with IEEE 802.3af/at standards. Maximum single-port power is 30W. Utilizing store-and-forward technology with QoS integration, it ensures efficient bandwidth allocation across all ports while delivering stable data transmission.The system provides multiple management options including CLI, WEB, and Cloud management, providing intuitive operation and simplified maintenance processes.


Overview
Parameter
Application
Files







Provider Mode Ports
Fixed Port

2*1000Base-X + 8*10/100/1000Base-T

Management PortSupport console

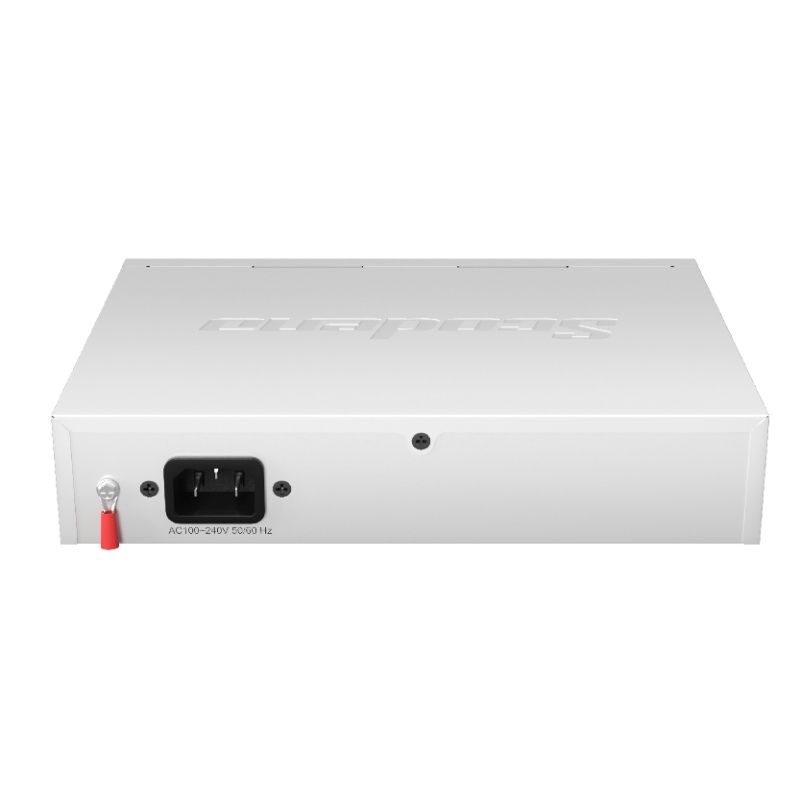

Power InterfaceAC Interface
LED IndicatorsPWR ,   Link/ACT, LED
Cable Type&Transmission Distance
Twisted-pair0-100m ( CAT5e,CAT6)
Monomode Optical Fiber20/40/60/80/100KM
Multimode Optical Fiber550m
Network Topology
Ring TopologySupport
Star TopologySupport
Bus TopologySupport
Tree TopologySupport
Hybrid TopologySupport
Electrical Specifications
Input VoltageAC 100-240V 50/60Hz
Total Power Consumption

≤120W

Main Board Power

<10W

PoE Support

PoE Port

1-8

PoE Protocol

IEEE 802.3af,IEEE 802.3at

PoE Pin Assignment

1,2+; 3,6-

PoE Management Mode

Support

Layer 2 Switching
Switching Capacity20Gbps
Packet Forwarding Rate14.88Mpps
MAC Address Table8K
Buffer4.1Mbit
Forwarding Delay<10us
MDX/MIDXSupport
VLAN Support Quantity256
GARP VLANSupport
 Protocol VLANSupport
Voice VLANSupport
Surveillance VLANSupport
MAC VLANSupport
Ethernet Channel/802 .3adSupport
LACPSupport
Interface SpeedSupport
 Flow ControlSupport
Jumbo FrameSupport
DHCP ClientSupport
SNTP ClientSupport
Port StatisticsSupport
Protected PortsSupport
EEESupport
Ethernet Ring Protection SwitchingSupport
LLDPSupport
LLDP 802.1 TLVSupport
MSTP / RSTP /STPSupport
STP BPDU FilterSupport
STP BPDU GuardSupport
STP Port FastSupport
IGMP SnoopingSupport
MLD SnoopingSupport
MVRSupport
DHCP Interface Prioritizes IP bindingSupport
Device Scanning Support
Layer 3 Route
IPV4 management addressSupport
IPV6 management addressSupport
Static Routes IPv4Supports 32 items
Static Routes IPv6Supports 32 items
ARPSupport
Loopback InterfaceSupport
DHCP ServerSupport

DNS Server

Support

DNS Client

Support
Convergence
ACLSupport MAC standard/extended ACL
Support IPv4 standard/extended ACL
Support IPv6 standard/extended ACL
QOSSupport QoS retagging
Support port trust
Support port speed limit
Support export queue speed limit
Support SP and WRR scheduling algorithms
Support COS mapping, DSCP mapping, IP priority mapping
Management
User ManagementSupport
SyslogSupport
Upgrade FirmwareSupport
Configuration File Download/UploadSupport
SNMPSNMP V1/V2/V3
WEB Support
ConsoleSupport
CLISupport
Telnet/SSHSupport
RMONSupport
Security
Manage Channel ConfigurationSupport
AAASupport
802.1XSupport
MAC-Based AuthorizationSupport
WEB-Based AuthorizationSupport
Anti-DoSSupport
DAISupport
DHCP SnoopingSupport
IP Source GuardSupport
Port SecuritySupport
Protected PortsSupport
Storm ControlSupport
Equipment diagnosis
Console LogSupport
RAM LogSupport
Flash LogSupport
Port MirroringSupport 1:1 or 1:M
PingSupport
TracerouteSupport
Electrical Interface TestingSupport
Optical Module InformationSupport
UDLDSupport

EMC&Ingress Protection

Operating Temperature

-10℃~+50℃

Storage Temperature

-40℃~+85℃

Relative Humidity

10% to 90% RH

Heat Dissipation Method

Fanless design, natural heat dissipation

MTBF

100,000 hours

Mechanical Dimensions

Product Size220*161*44mm
Weight
0.97KG
Installation MethodDesktop installation
EMC&Ingress Protection
Surge Protection of PowerCommon model 6KV Differential model 2KV
Surge Protection of Ethernet portCommon model 4KV Differential model 2KV
ESDTouch 8K ,Air 15K
Free Fall0.5m
Accessories
Accessories

Device, power cord, user manual




Villa security:

Project pain points:

1. The villa security system technology is complex, integrating multiple security technologies, making project management difficult, with diverse business types that need to be divided according to needs and not interfere with each other.

2. The cost of outdoor wiring is high, and it is necessary to streamline the types of wiring.

Project features:

1. The access layer uses management type switches with POE function, and van isolation is used between different business systems to reduce management difficulty.

2. The access layer equipment adopts switches with POE function to reduce wiring and ensure the convenience of villa security design.



5  安防(别墅).png

S200-10GPM-S2-AC
