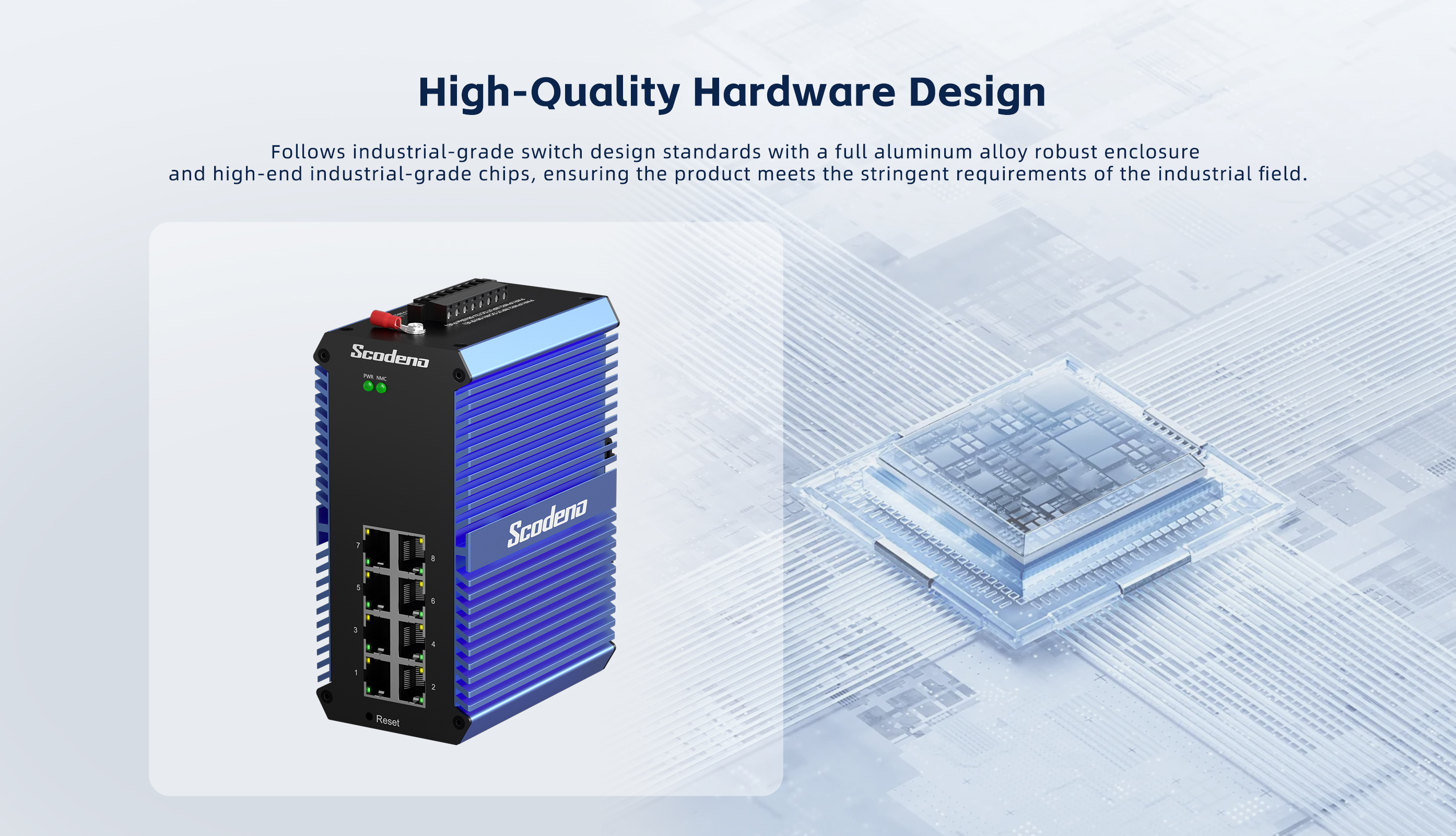

XPTN-9000-87-8GT-VX Managed Industrial Switch

l8*10/100/1000 M RJ45 port with 12M port buffer.

lOperating temperature range of -40℃ to +85℃, IP50 protection rating, wide temperature tolerance and high protection for harsh environments.

lSupports IEEE 802.3 af/at standards, with a maximum of 30W per port.

lRobust network security policies and comprehensive security features protect the network.

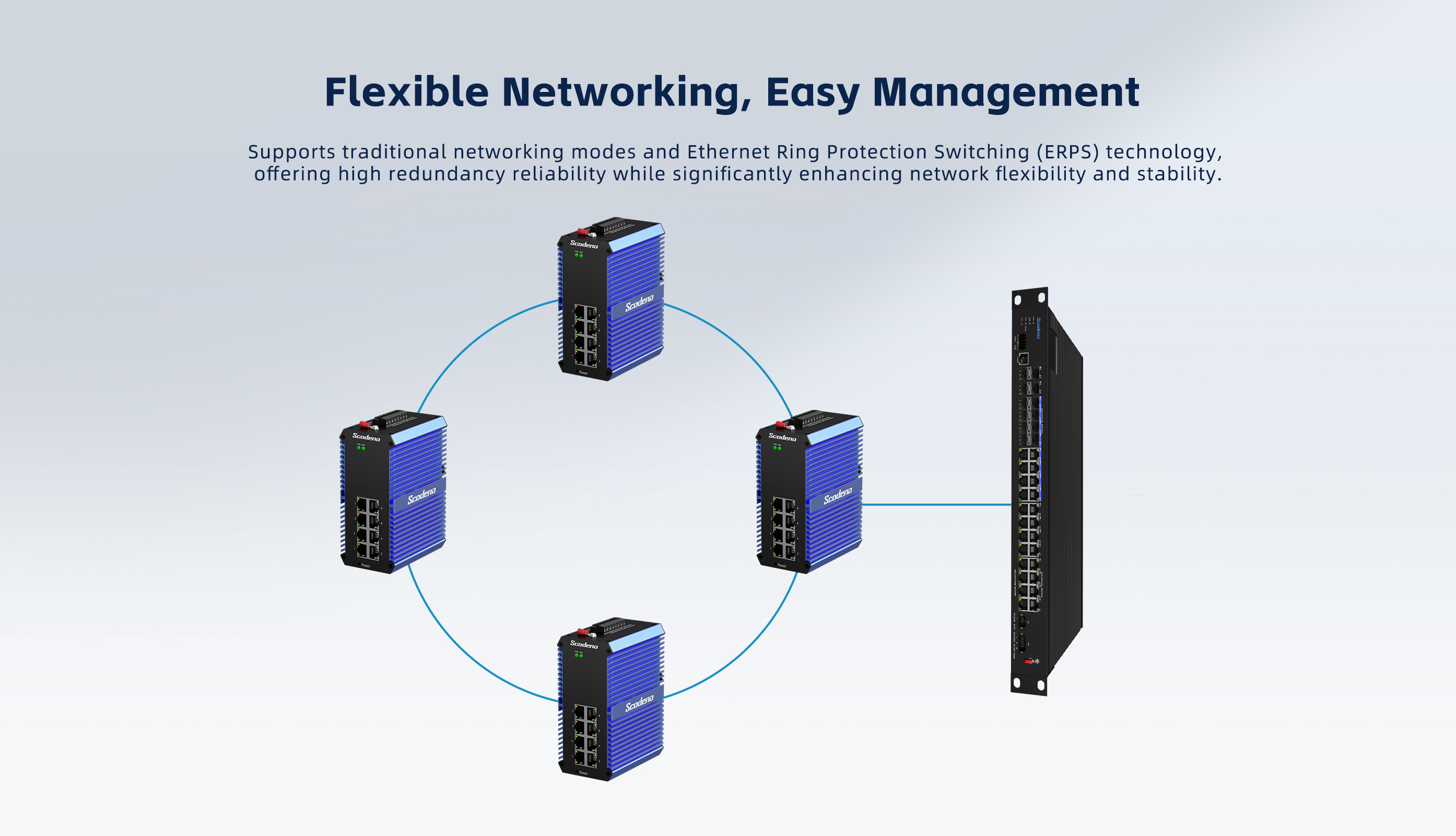

      lERPS recovery time is less than 15ms, ensuring business continuity.


A L2 switch with 8 Gigabit Ethernet ports, high buffer capacity and zero packet loss, balancing "backbone transmission" and "terminal interconnection" to simplify network hierarchy.


Overview
Parameter
Application
Files


Hardware Specifications

Model

XPTN-9000-87-8GT-VX

XPTN-9000-87-8GP-VX

XPTN-9000-87-8GP2B-VX

Interface

8*10/100/1000M RJ45 ports

Switching

36Gbps

Packets Forwarding Rate

26.78Mpps

MAC

16K

Port Buffer

12M

Forwarding Delay

<10us


Power Supply

Phenix terminal, DC redundant input

Input Voltage: DC12-58V

Input Voltage: DC48-58V

Input Voltage: DC48-58V

Empty Load Power: <10W

LED Indicators

PWR, Link/ACT

PoE

1-8 ports support PoE

1-8 ports support PoE

PoE budget:250W

PoE budget: 250W

IEEE802.3 af/at standard

IEEE802.3 af/at standard

PIN Sequence: 1,2+/3,6-

PIN Sequence: 1,2+/3,6-

PoE++

1-2 ports support PoE++

PoE budget: 250W

IEEE802.3 af/at/bt standard

PIN Sequence:1245+ 3678-

Environment

Working Temperature: –40 ℃ ~ 85

Storage Temperature: –40 ℃ ~ 85

Working Humidity: 5%~95% non-condensing

Storage Humidity: 5%~95% non-condensing

SIZE(W*D*H)

143*104*65mm

Weight

0.85KG

0.87KG

0.87KG

Installation Method

Din Rail

Certificate Compliance

CE/FCC/RoHS

MTBF

100,000 hours

Software Specifications

Model

XPTN-9000-87-8GT-VX

XPTN-9000-87-8GP-VX

XPTN-9000-87-8GP2B-VX


VLAN

Support 4K IEEE 802.3Q VLAN

Support protocol VLAN

Support GARP


LACP

Support IEEE 802.3ad

Support static LACP

Support dynamic LACP

STP

Support IEEE 802.1d STP

Support IEEE 802.1w RSTP

Support IEEE 802.1s MSTP

ERPS

Support ITUT G.8032 protocol

Port

Support Jumbo Frame

Support IEEE802.3X Flow Control

Support port statistics

Support Auto-MDI/MDIX

Multicast

Support IGMP Snooping

Support MVR


ACL

Support MAC Standard/Extended ACL

Support IPv4 Standard/Extended ACL

Support IPv6 Standard/Extended ACL

QoS

Support QoS Re-marking

Support Port Trust

Support Port Rate Limiting

Support Egress Queue Rate Limiting

DHCP

Support DHCP Snooping

Support DHCP Client

Support DHCP Server

L3 Route

IPv4 Management Address

IPV6 Management Address

Static IPv4 Route

Static IPv6 Route

ARP

Loopback Interface

Security

Support IEEE802.1X

Support MAC-Based IEEE802.1X

Support WEB-Based IEEE802.1X

IP Source Guard

Port Security

Port Isolation

Diagnosis


Support Console Logs

Support RAM logs

Support Flash logs

Support Port Mirroring(1:1,N:1)

Support Ping

Support Traceroute

Support Cable Test

Support Optical Module Information




Management





Support User Management

Support System Log

Support Firmware Upgrade

Support File Upgrade

Support SNMP

Support WEB Management

Support Console

Support CLI

Support Telnet/SSH
