XPTN-9000-88-4XG48GT-HR-V

l4*10G SFP ports, 48*10/100/1000M RJ45 ports, 12M port buffer.

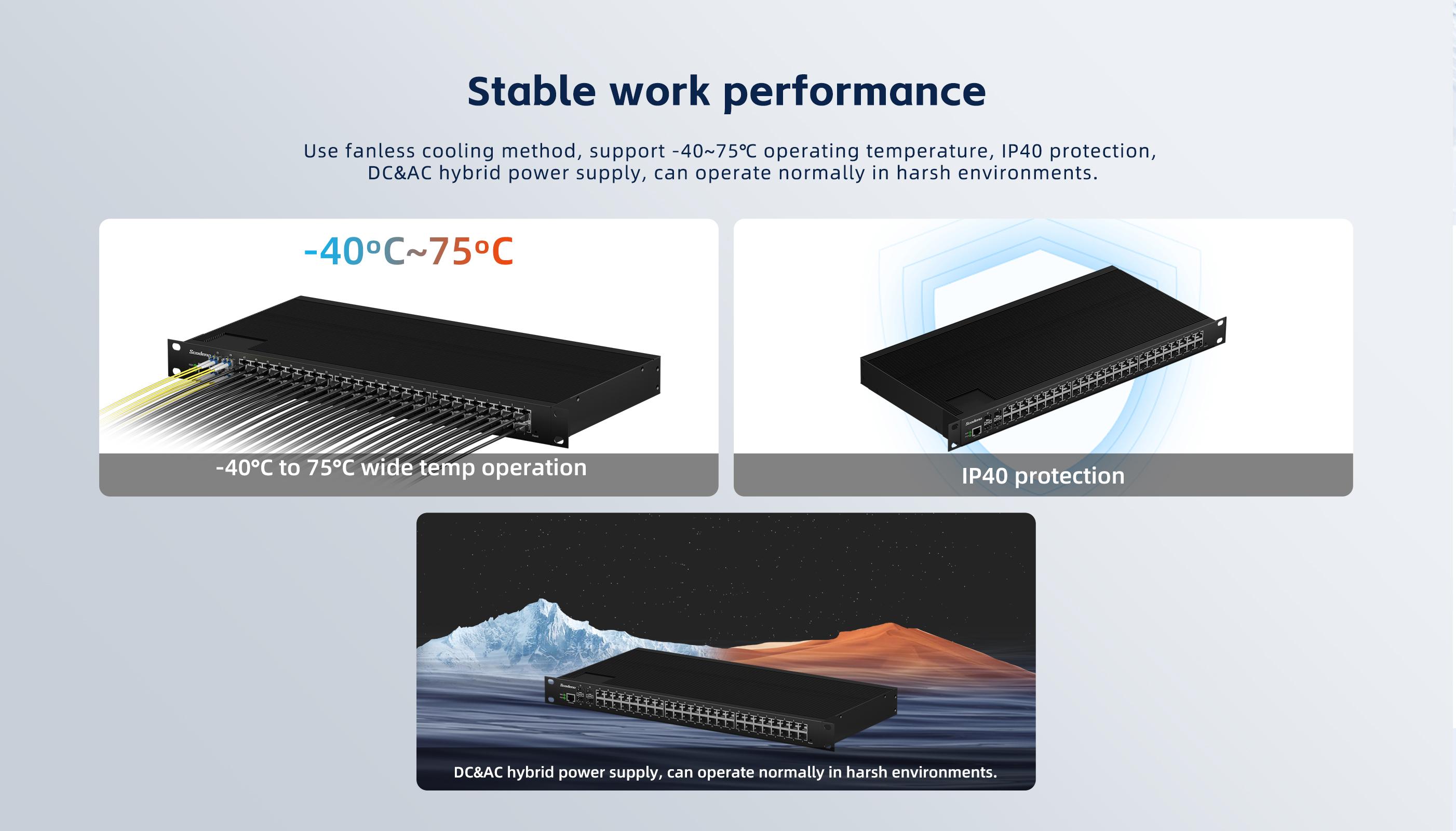

lOperating temperature range of -40℃ to +75℃, IP40 protection rating, wide temperature tolerance and high protection for harsh environments.

lAC+DC redundant power supply, DC power supports PoE.

lRobust network security policies with comprehensive security features to safeguard the network, supporting static routing, IS-IS, OSPFv2/RIP to meet Layer 3 transmission requirements.

      lERPS recovery time under 15ms ensures business continuity.

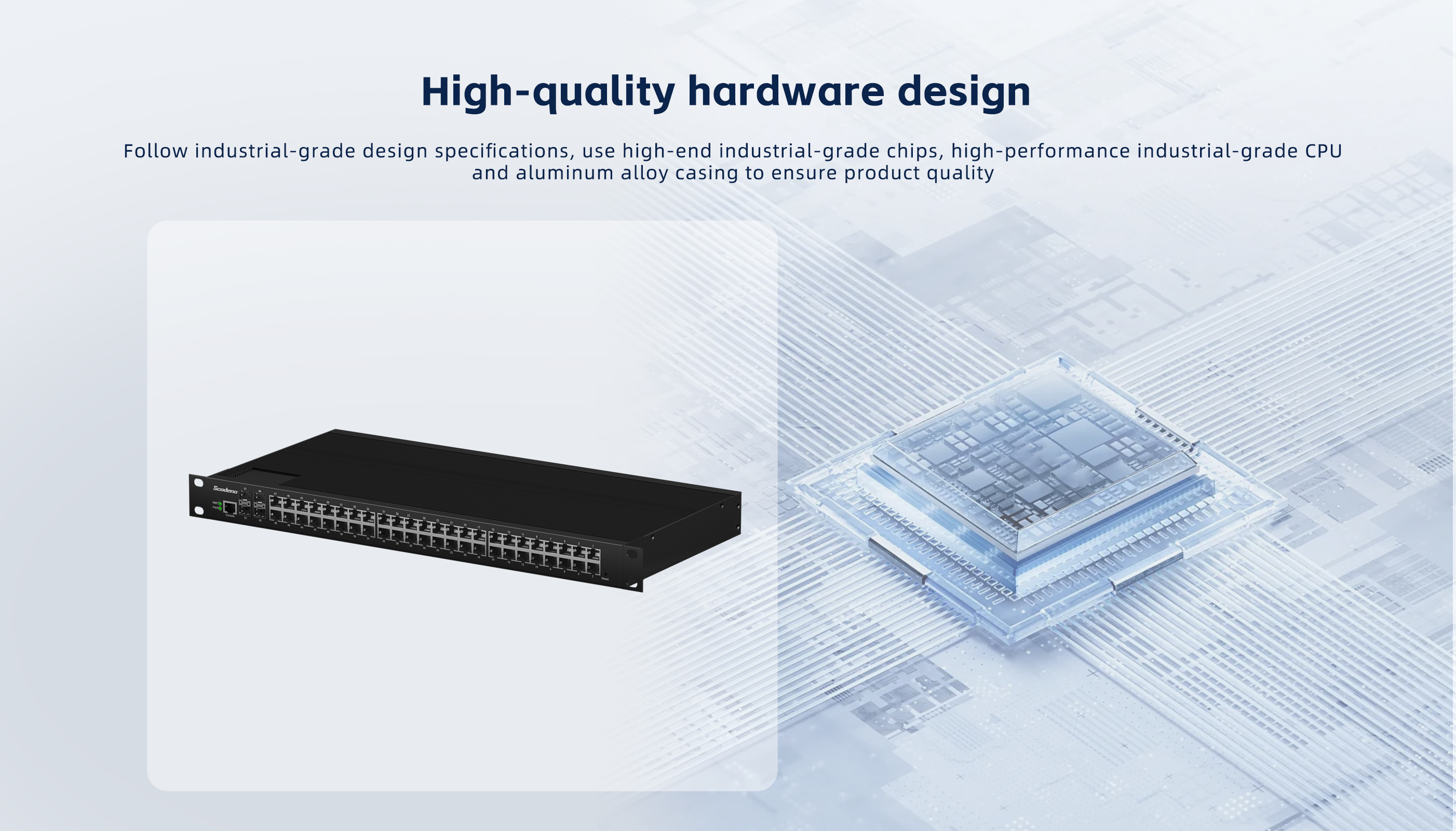

1U rack-mountable design, 4 10G optical ports and 48 Gigabit electrical ports in an L3 managed switch, high buffer capacity with zero packet loss, balancing "backbone transmission" and "terminal interconnection" to simplify network hierarchy.


Overview
Parameter
Application
Files


Hardware Specifications

Model

XPTN-9000-88-4XG48GT-HR-V

XPTN-9000-88-4XG48GP-R-V

Interface

4*10G SFP ports+48*10/100/1000M RJ45 ports

Switching

336Gbps

Packets Forwarding Rate

144Mpps

MAC

16K

Port Buffer

12M

Forwarding Delay

<10us


Power Supply

Phenix terminal, AC+DC power supply

Input Voltage:DC12-58V/AC 100-240V 50-60HZ

Input Voltage: DC48-58V

Empty Load Power: <35W

LED Indicators

PWRLink/ACTLED

PoE

1-48 ports support PoE

PoE budget: 400W

IEEE802.3 af/at standard

PIN Sequence: 1,2+/3,6-



Environment

Working Temperature: –40℃ ~ 85℃

Storage Temperature: –40℃ ~ 85℃

Working Humidity: 5%~95% non-condensing

Storage Humidity: 5%~95% non-condensing

SIZE(W*D*H)

440*245*44mm

Weight

3.6KG

3.62KG

Installation Method

Rack mounted

Certificate Compliance

CE/FCC/RoHS

MTBF

100,000 hours

Software Specifications

Model

XPTN-9000-88-4XG48GT-HR-V

XPTN-9000-88-4XG48GP-R-V

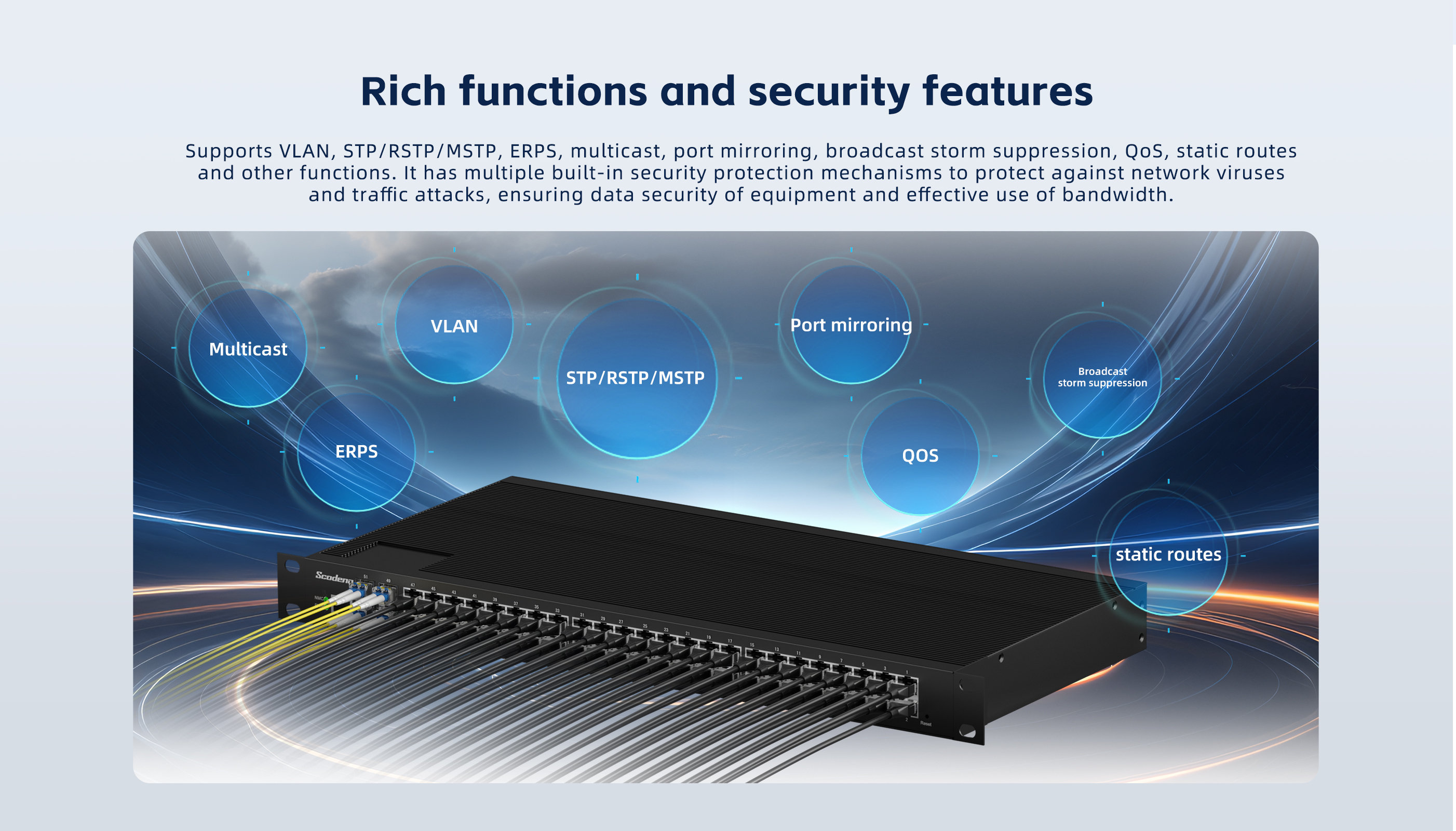

VLAN

Support 4K IEEE 802.3Q VLAN

Support protocol VLAN

Support GARP


LACP

Support IEEE 802.3ad

Support static LACP

Support dynamic LACP

STP

Support IEEE 802.1d STP

Support IEEE 802.1w RSTP

Support IEEE 802.1s MSTP

ERPS

Support ITUT G.8032 protocol

Port

Support Jumbo Frame

Support IEEE802.3X Flow Control

Support port statistics

Support Auto-MDI/MDIX

Multicast

Support IGMP Snooping


ACL

Support MAC Standard/Extended ACL

Support IPv4 Standard/Extended ACL

Support IPv6 Standard/Extended ACL

QoS

Support QoS Re-marking

Support Port Trust

Support Port Rate Limiting

Support Egress Queue Rate Limiting

DHCP

Support DHCP Snooping

Support DHCP Client

Support DHCP Server

L3 Route

IPv4 Management Address

IPV6 Management Address

Static IPv4 Route

Static IPv6 Route

RIP,OSPF

IS-IS

ARP

Loopback Interface

Security

Support IEEE802.1X

Support MAC-Based IEEE802.1X

Support WEB-Based IEEE802.1X

IP Source Guard

Port Security

Port Isolation

Diagnosis


Support Console Logs

Support RAM logs

Support Flash logs

Support Port Mirroring(1:1)

Support Ping

Support Traceroute

Support Cable Test

Support Optical Module Information

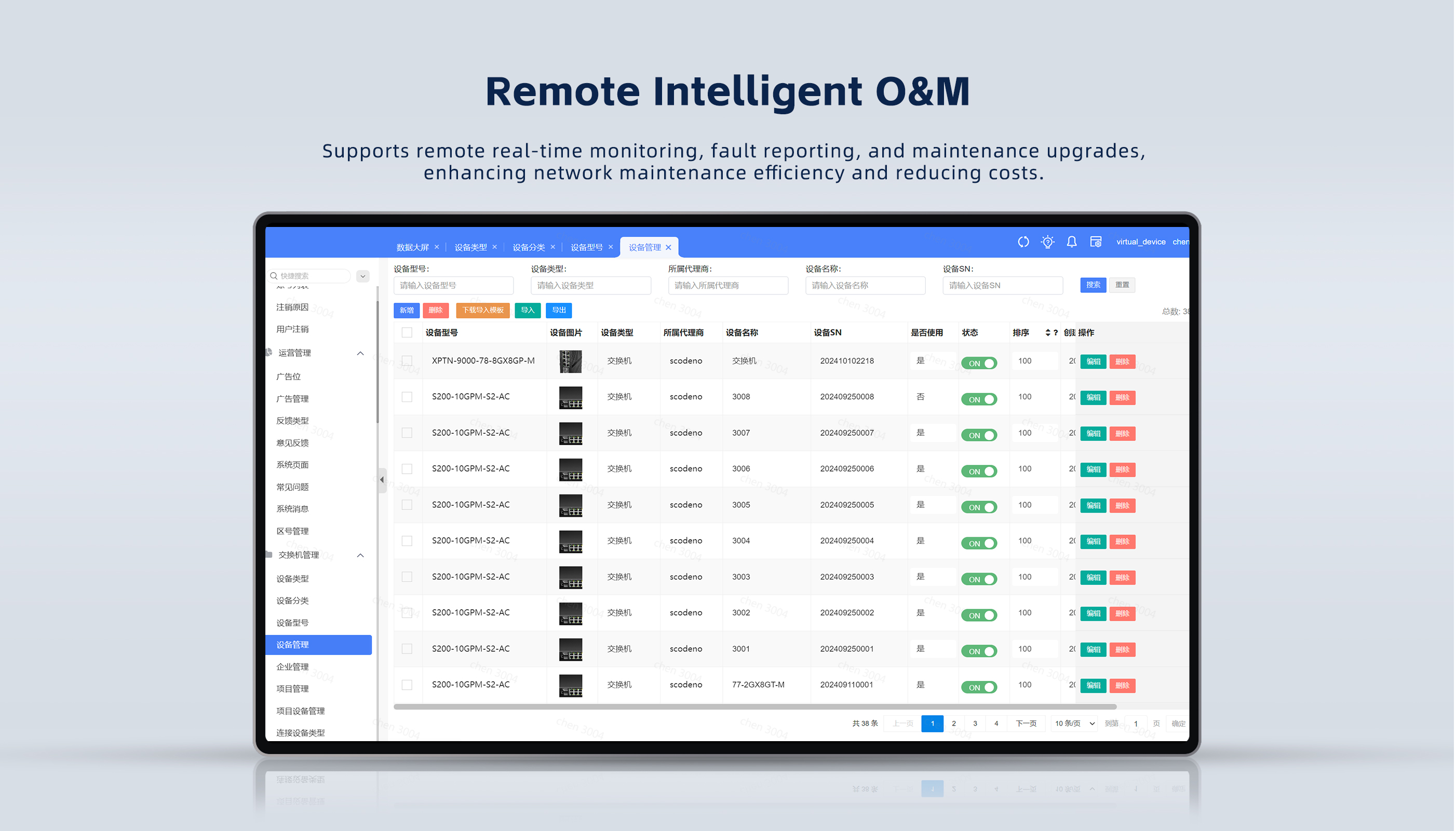

Management

Support User Management

Support System Log

Support Firmware Upgrade

Support File Upgrade

Support SNMP

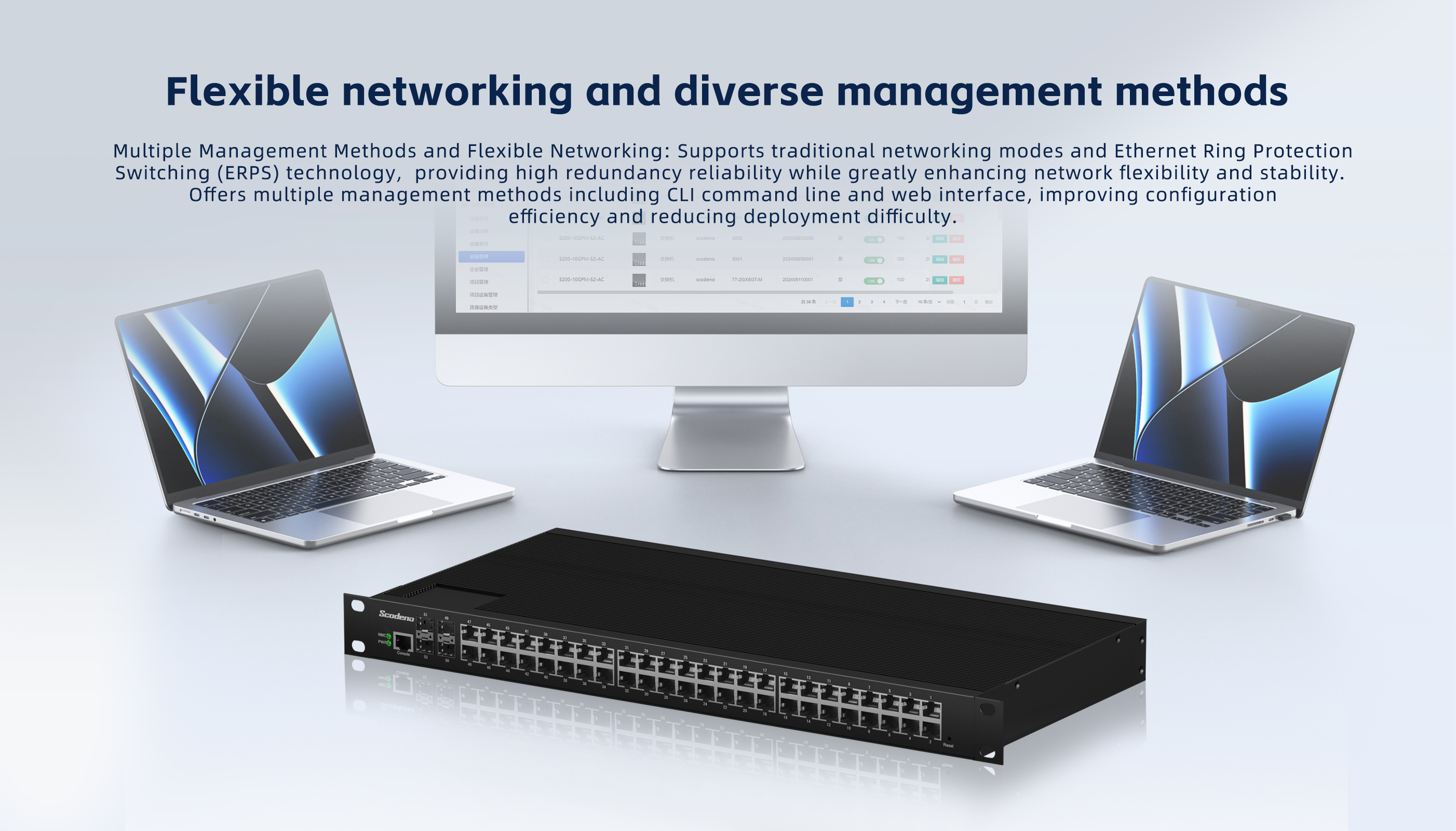

Support WEB Management

Support Console

Support CLI

Support Telnet/SSH

EEE

Support IEEE802.3az
