S200-8XMY-AC

·8*10g SFP+ ports, 12MB cache.

·Support static routing, OSPF/RIP,satisfy the L3 transmission requirement.

·Strong networking security policies,abundant safe features to protect networking.

·Support CLI,WEB,Cloud multiple management methods.

· White shell, low power design, environmental protection and energy saving.

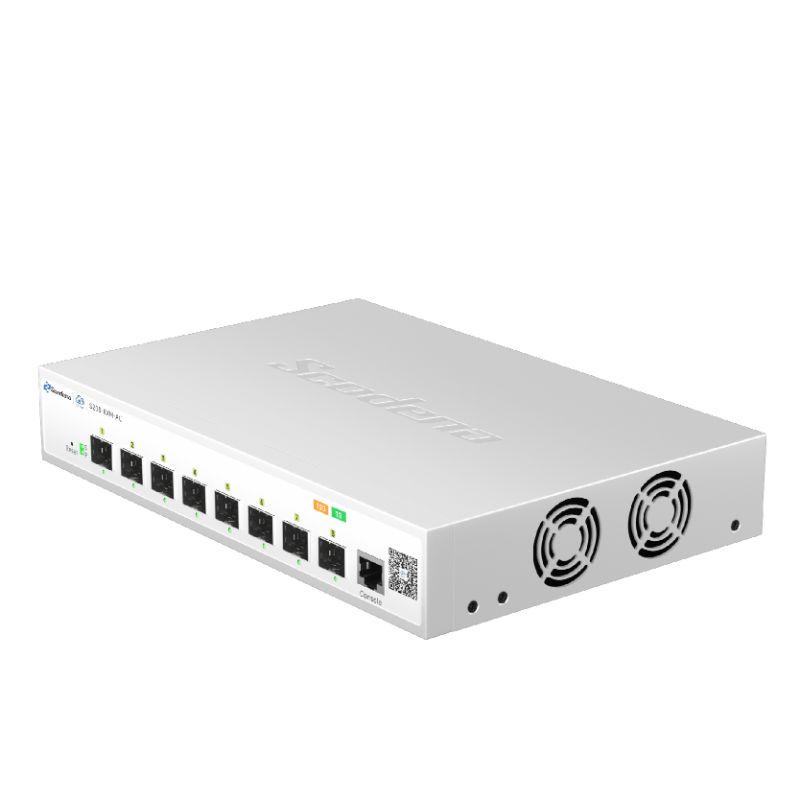

S200-8XMY-AC features 8*10G SFP+ optical ports. Utilizing store-and-forward technology with QoS integration, it ensures efficient bandwidth allocation across all ports for stable data transmission. The system provides multiple management options including CLI, web interface, and cloud-based administration, delivering intuitive operation and simplified maintenance.

Overview
Parameter
Application
Files


Provider Mode Ports

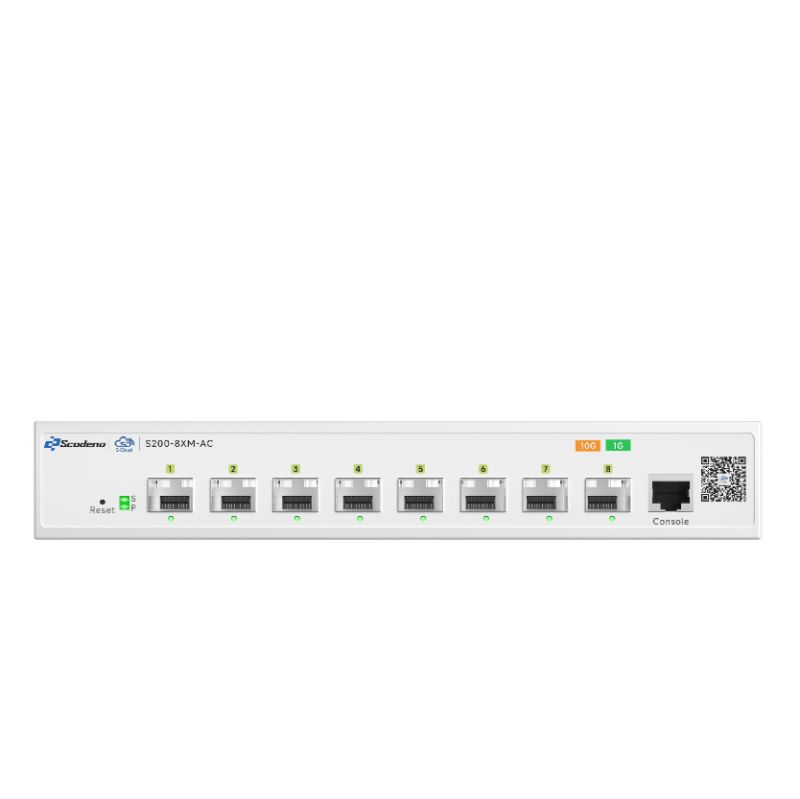

Fixed port8* 1000/10000 Base - X
Management Portsupportconsole

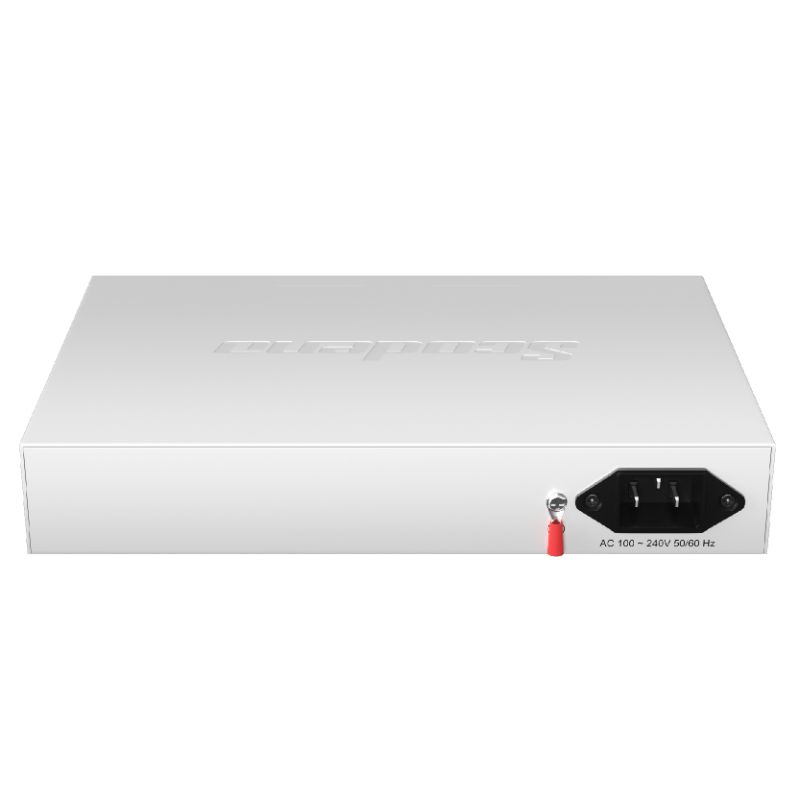

Power interfaceAC interface
LED IndicatorsPWR ,  SYS ,   Link/ACT LED
Cable type&Transmission distance
Monomode optical fiber20/40/60/80/100KM
Multimode optical fibre550M
Network Topology
Ring topologysupport
Star topologysupport
Bus topologysupport
Tree Topologysupport
Hybrid topologysupport
Electrical Specifications
input voltageAC 100-240V 50/60Hz
Total Power consumption≤35W
Layer 2 Switching
Switching capacity160G
Packet forwarding rate119.04Mpps
MAC address table16K
Buffer12M bit
Forwarding delay<10us
MDX/MIDXsupport
VLAN4000
GVRPsupport
Protocol VLANsupport
Voice VLANsupport
Surveillance VLANsupport
MAC VLANsupport
Ethernet channel/802 .3adsupport
LACPsupport
Interface Speedsupport
Duplex Modesupport
Flow Controlsupport
Jumbo framesupport
DHCP Serversupport
DHCP Clientsupport
DNS Clientsupport
SNTP Clientsupport
Port Statisticssupport
Protected Portssupport
EEEsupport
Ethernet Ring Protection Switchingsupport
LLDPsupport
LLDP 802.1 TLVsupport
MSTP / RSTP / STPsupport
STP BPDU Filtersupport
STP BPDU guardsupport
STP Port Fastsupport
IGMP Snoopingsupport
MLD Snoopingsupport
MVRsupport
DHCP interface prioritizes IP bindingsupport
Device scanningsupport
Layer 3 Route
IPV4 management addresssupport
IPV6 management addresssupport
IPV4 dynamic routingOSPF、RIP
Static Routes IPv6support
VRRPVirtual Routing Redundancy Protocol
ARPsupport
Loopback Interfacesupport
Convergence
ACLSupport MAC standard/extended ACL
Support IPv4 standard/extended ACL
Support IPv6 standard/extended ACL
QOSSupport QoS re tagging
Support port trust
Support port speed limit
Support export queue speed limit
Support SP and WRR scheduling algorithms
Support COS mapping, DSCP mapping, IP priority mapping
Management
UserManagementsupport
SystemLogsupport
UpgradeFirmwaresupport
ConfigurationFileDownload/Uploadsupport
SNMPsupport SNMP V1/V2/V3
Web managementsupport
Consolesupport
CLIsupport
Telnet/SSHsupport
RMONsupport
Security
Manage channel configurationsupport
AAA certificationsupport
802.1X authenticationsupport
MAC Based Authenticationsupport
WEB Based Authenticationsupport
DoS attack preventionsupport
Dynamic ARP Checksupport
DHCP Snoopingsupport
IP Source Guardsupport
Port Securitysupport
Protected Portssupport
storm controlsupport
Equipment diagnosis
Console logsupport
RAM logsupport
Flash logssupport
Port Mirror support1:1&M:1
Pingsupport
Traceroutesupport
UDLD protocolsupport
Environment
Temperature

Working temperature: -10 º C to 55 º C

Storage temperature: -40 º C to 75 º C

Relative humidity

Working humidity: 10% to 90% RH

Storage humidity: 5% to 90% RH

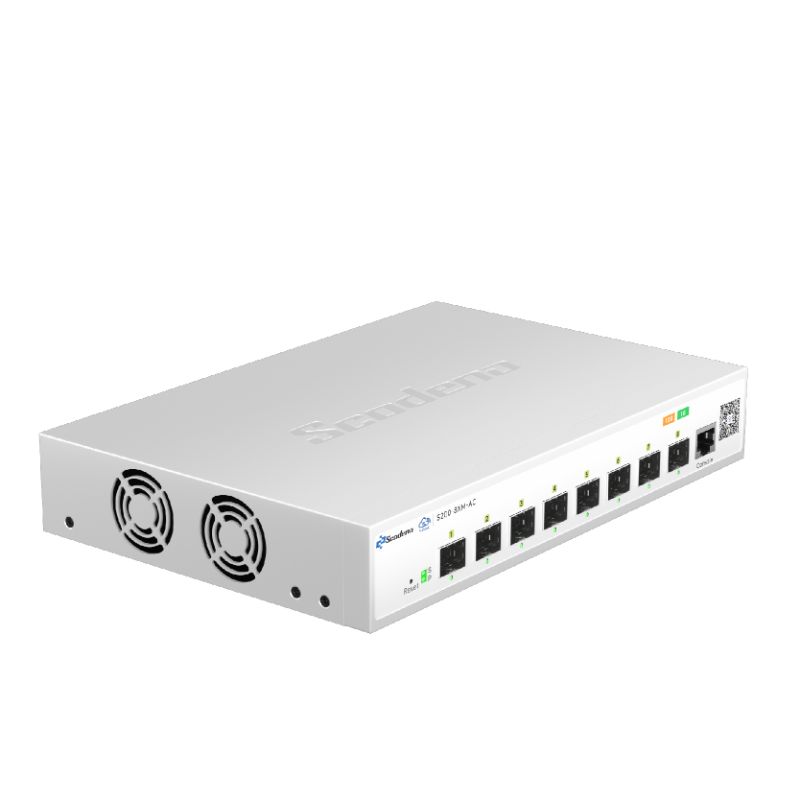

Thermal methodsFan cooling
MTBF100000 hours
Mechanical Dimensions
Product size   270*181*44mm
Installation Method   Desktop installation
Weight
   1.25KG
EMC&INGRESS PROTECTION
Surge protection of Power   Common mode 6KV, differential mode 2KV
Surge protection of Ethernet port   Common mode 4KV, differential mode 2KV
ESD   Exposure to 8K, air at 15K
Free fall   0.5m
Accessories
Accessories   Equipment, AC power cord, electrostatic bag, certificate of conformity, instruction manual
