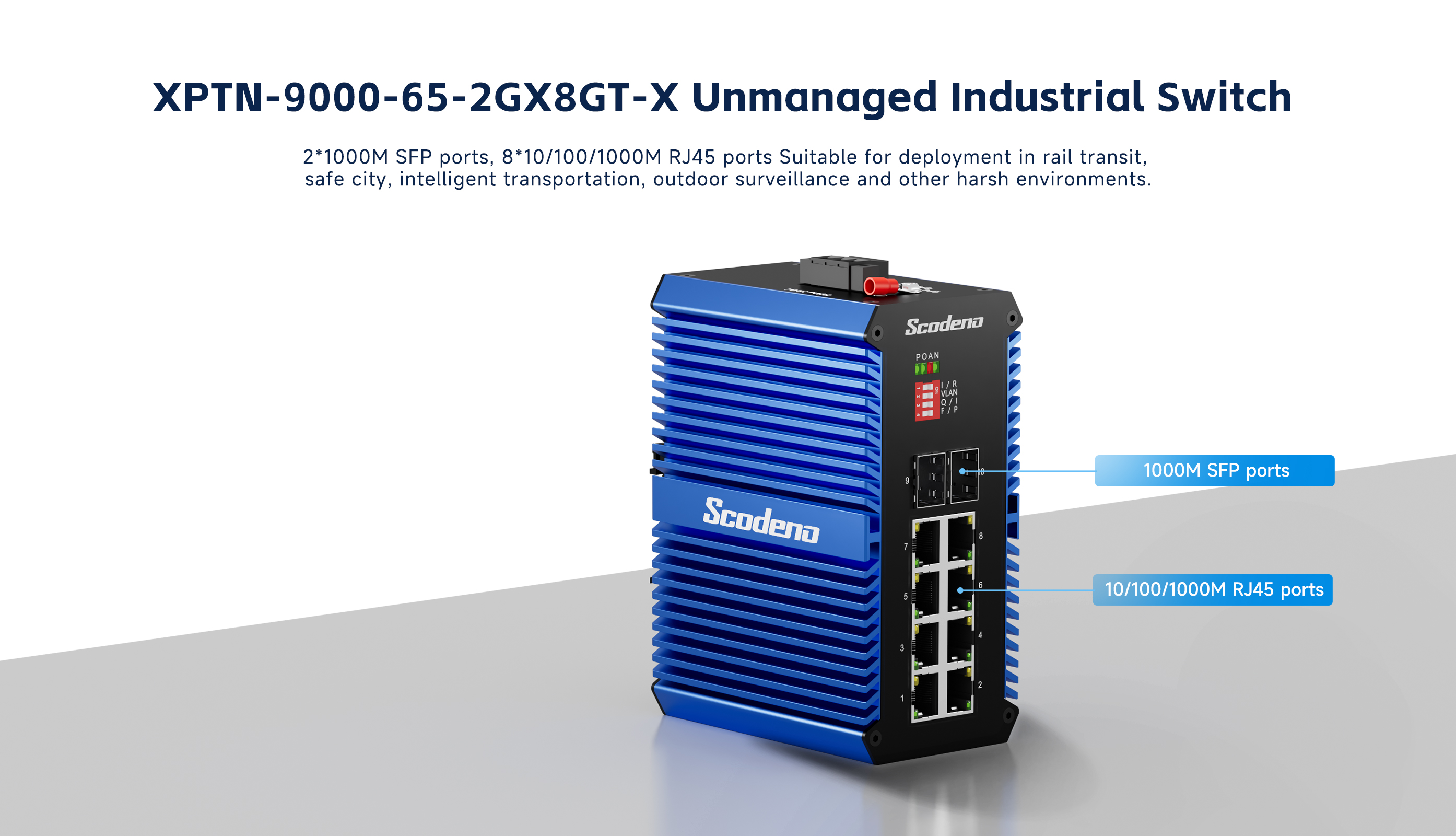

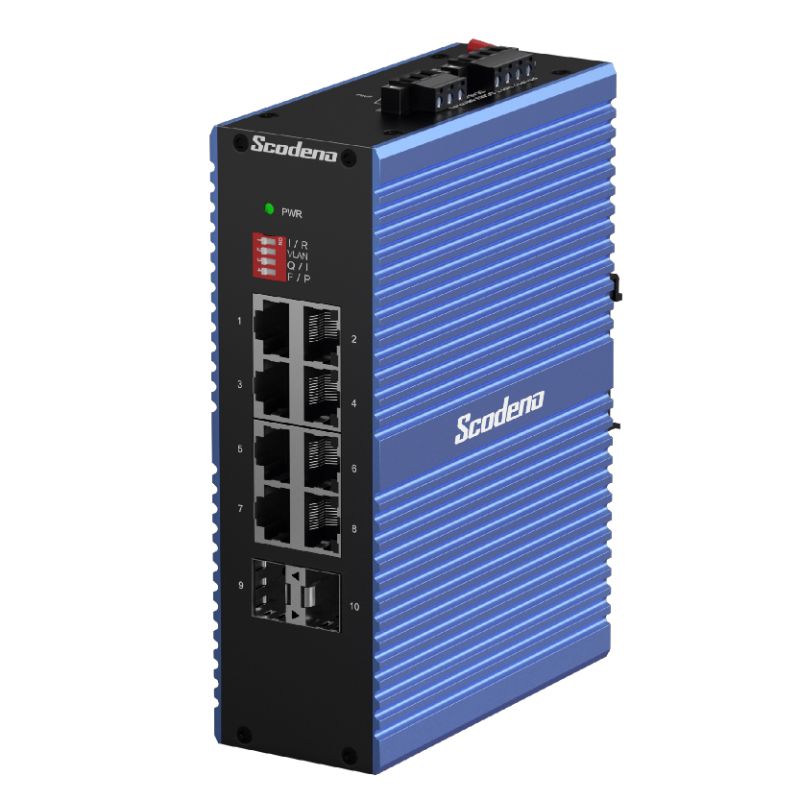

XPTN-9000-65-2GX8GT-X Unmanaged Industrial Switch

• Input Voltage: DC12~58V for Non-PoE,   DC48~58V for PoE

• Operating Temperature: -40℃~85℃

• Shell: IP50 protection

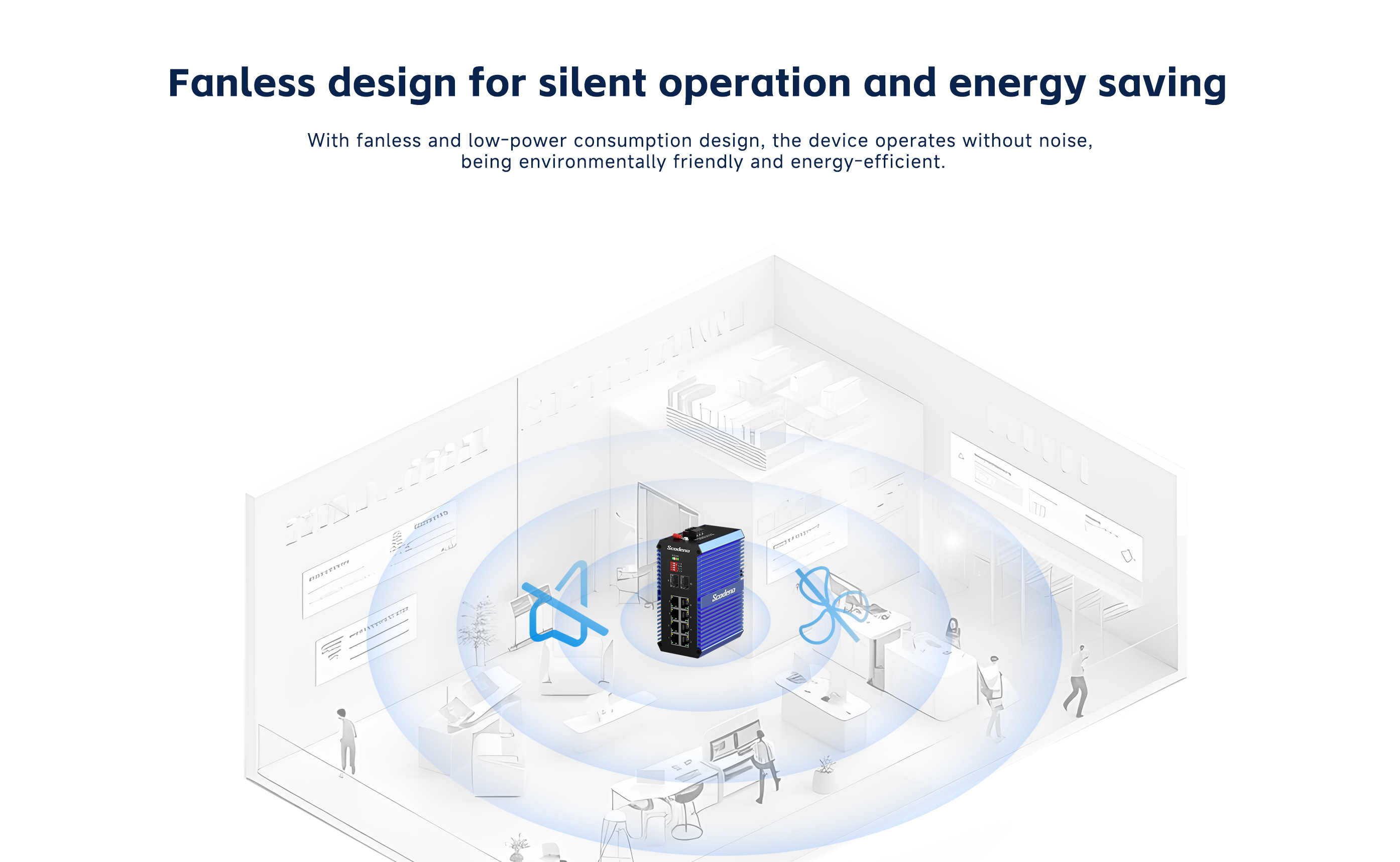

• Fanless design, low power consumption

• ESD: contact 8KV, air 15KV

• MTBF: 100,000 hours


The XBLUE 65 Series is specially designed for harsh industrial environments,

which provids economic solutions for industrial Ethernet networking. Support wide   working temperature –40℃~85℃.

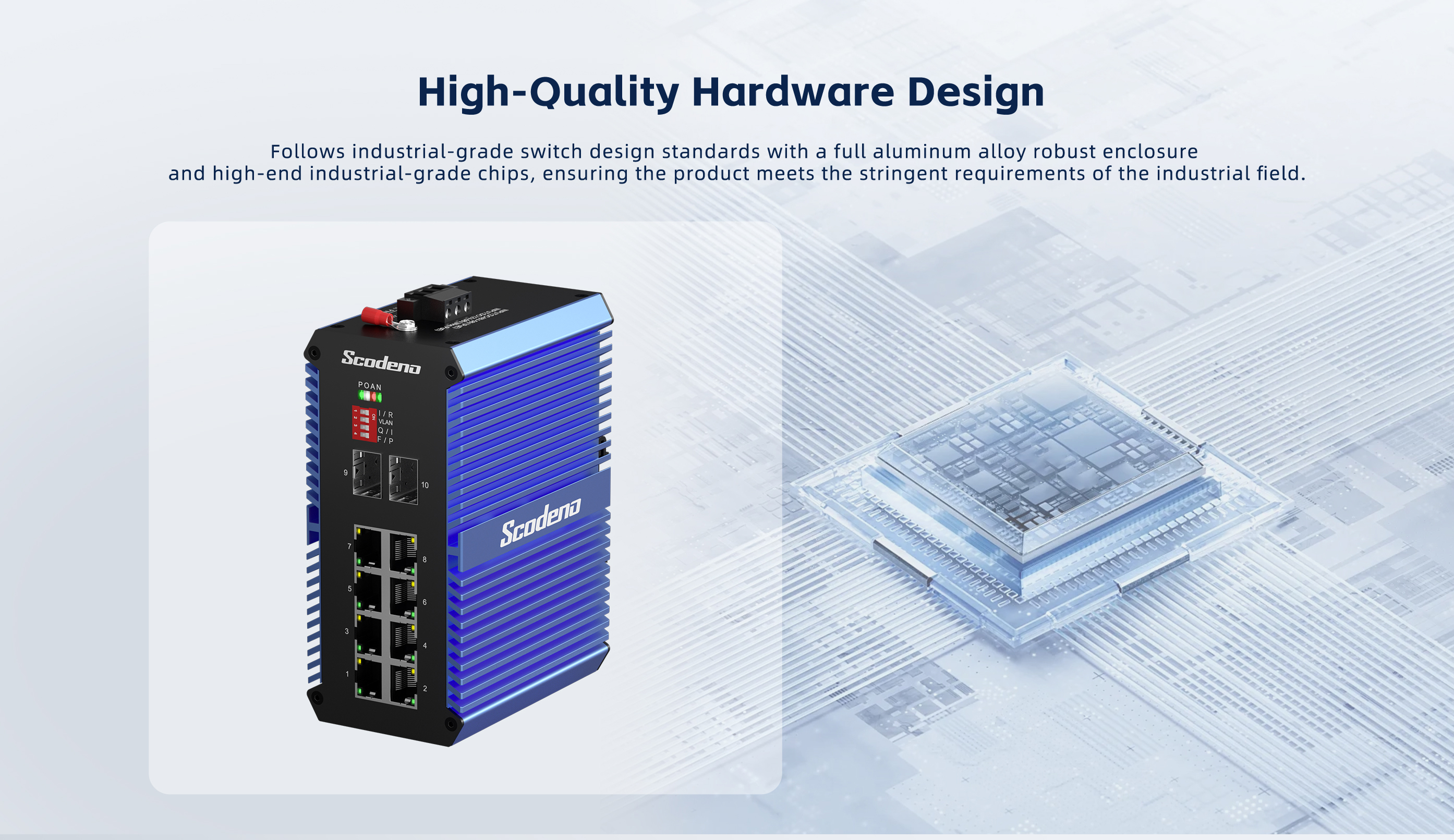

Redundant DC power supply, adopts rugged aluminum alloy housing, and passed   high level tests of EMI/EMC. It also has gone through the strict aging test, meeting  the requirements of transportation industry.


Overview
Parameter
Application




Hardware Specifications

Model

XPTN-9000-65-2GX8GT-X

XPTN-9000-65-2GX8GP-X

Interface

2*1000M SFP ports +8*10/100/1000M RJ45 ports

Switching

26Gbps

Packets Forwarding Rate

19.34Mpps

MAC

16K

Port Buffer

2M

Forwarding Delay

<5us


Power Supply

Phenix terminal, DC redundant input

Input Voltage: DC12-58V

Input Voltage: DC48-58V

Empty Load Power: <6W

LED Indicators

PWR, OPT,NMC,ALM

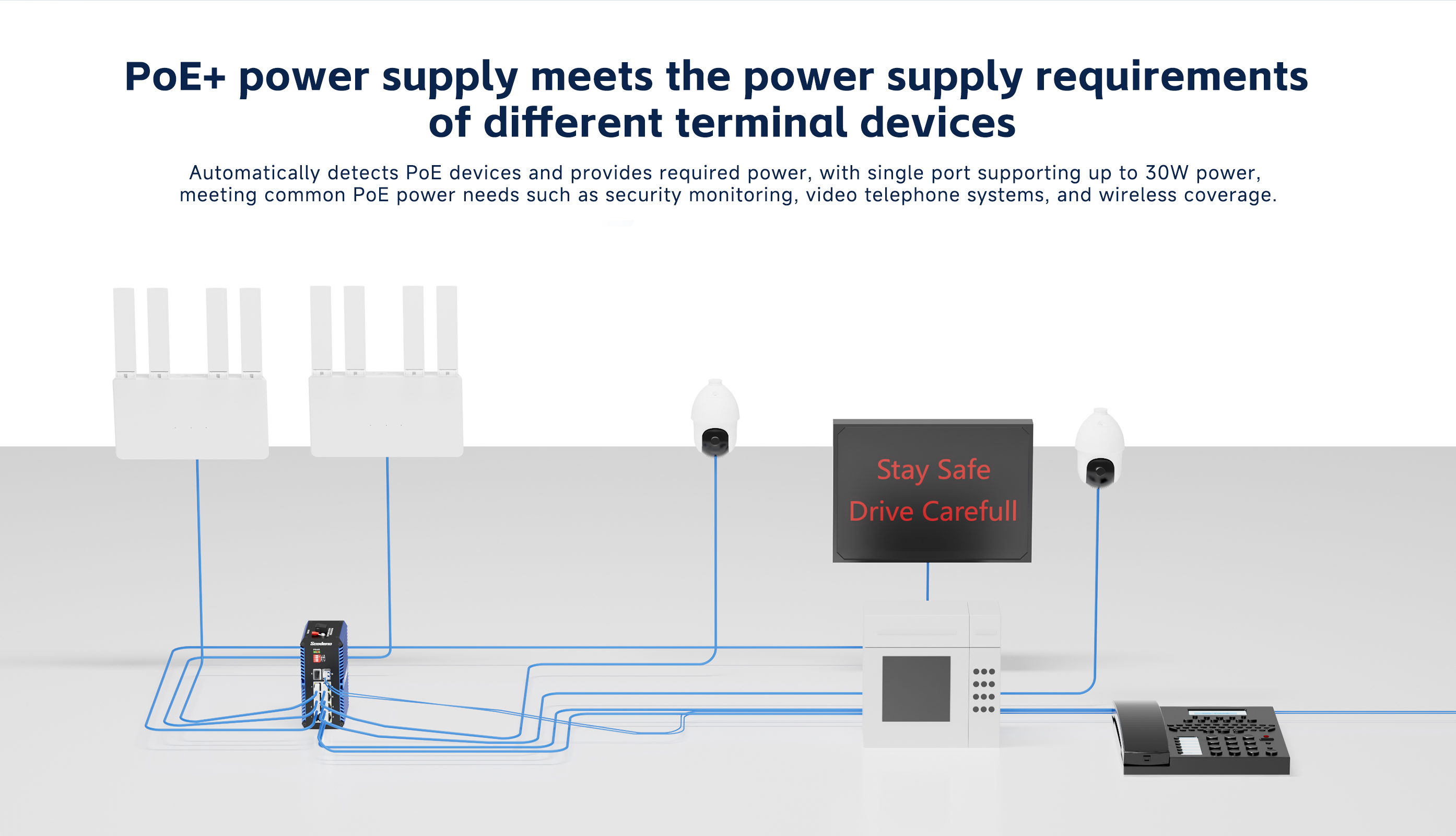

PoE

__


1-8 ports support PoE

PoE budget: 246W

IEEE802.3 af/at standard

PIN Sequence: 1,2+/3,6-



Environment

Working Temperature: –40 ℃ ~ 85

Storage Temperature: –40 ℃ ~ 85

Working Humidity: 5%~95% non-condensing

Storage Humidity: 5%~95% non-condensing

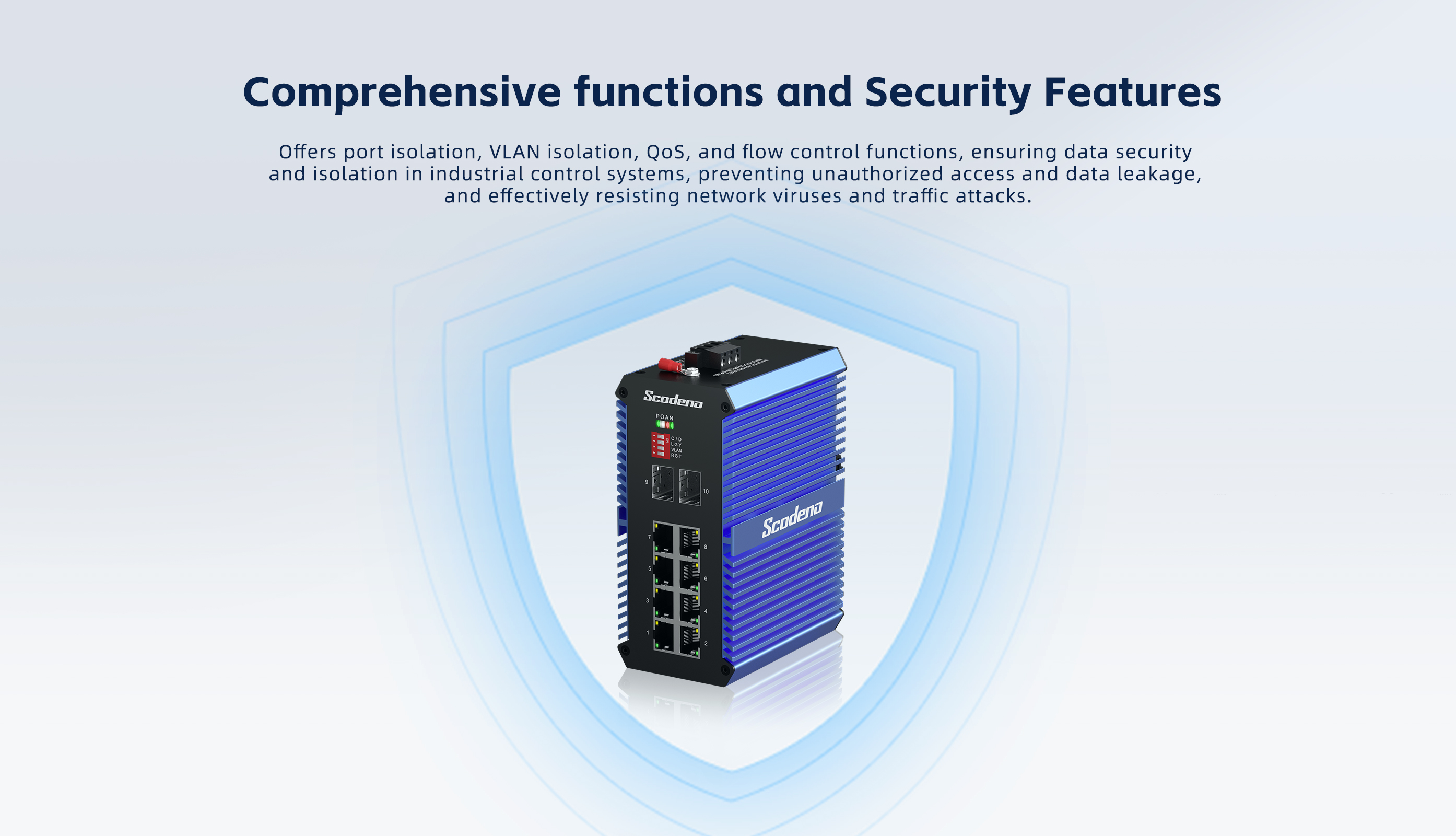

DIP Specification

Port Isolation

VLAN

QoS

Flow Control

PoE Watchdog

VLAN

Port Isolation

VIP Power supply &QoS

SIZE(W*D*H)

143*104*65mm

Weight

0.8KG

0.82KG

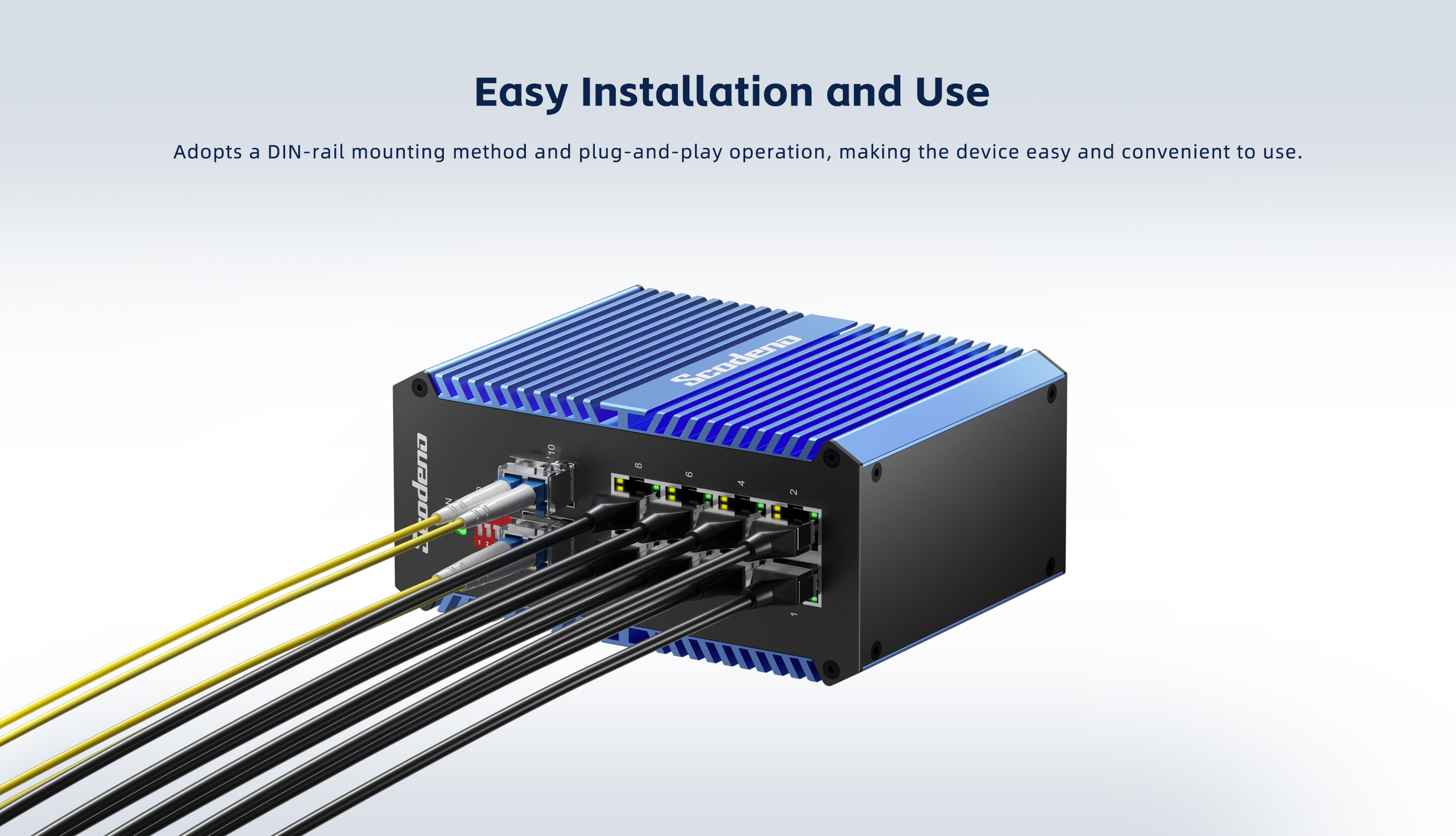

Installation Method

Din Rail

Certificate Compliance

CE/FCC/RoHS

MTBF

100,000 hours
