XPTN-9000-88-20GX8GC-HR-V

• 20 × 1G SFP ports and 8 × 1G Combo ports.

• Fanless design, IP40 protection and an operating temperature range of −40°C to +85°C.

• Supports management via SNMP, Web UI, Console, CLI, Telnet and SSH.

• Supports static IPv4/IPv6 routing, RIP, OSPF and IS-IS, with ACLs, IEEE 802.1X and IP Source Guard.

• Supports ITU-T G.8032 ERPS, STP, RSTP and MSTP for network redundancy.

1U rack-mount Layer 3 managed industrial switch with 20 × 1G SFP ports and 8 × 1G Combo ports. Designed for industrial Ethernet networks, with a fanless IP40 housing and an operating temperature range of −40°C to +85°C.

Overview
Parameter
Application
Files

XPTN-9000-88-20GX8GC-HR-V

1U rack-mount Layer 3 managed industrial switch with 20 × 1G SFP ports and 8 × 1G Combo ports. Designed for industrial Ethernet networks, with a fanless IP40 housing and an operating temperature range of −40°C to +85°C.

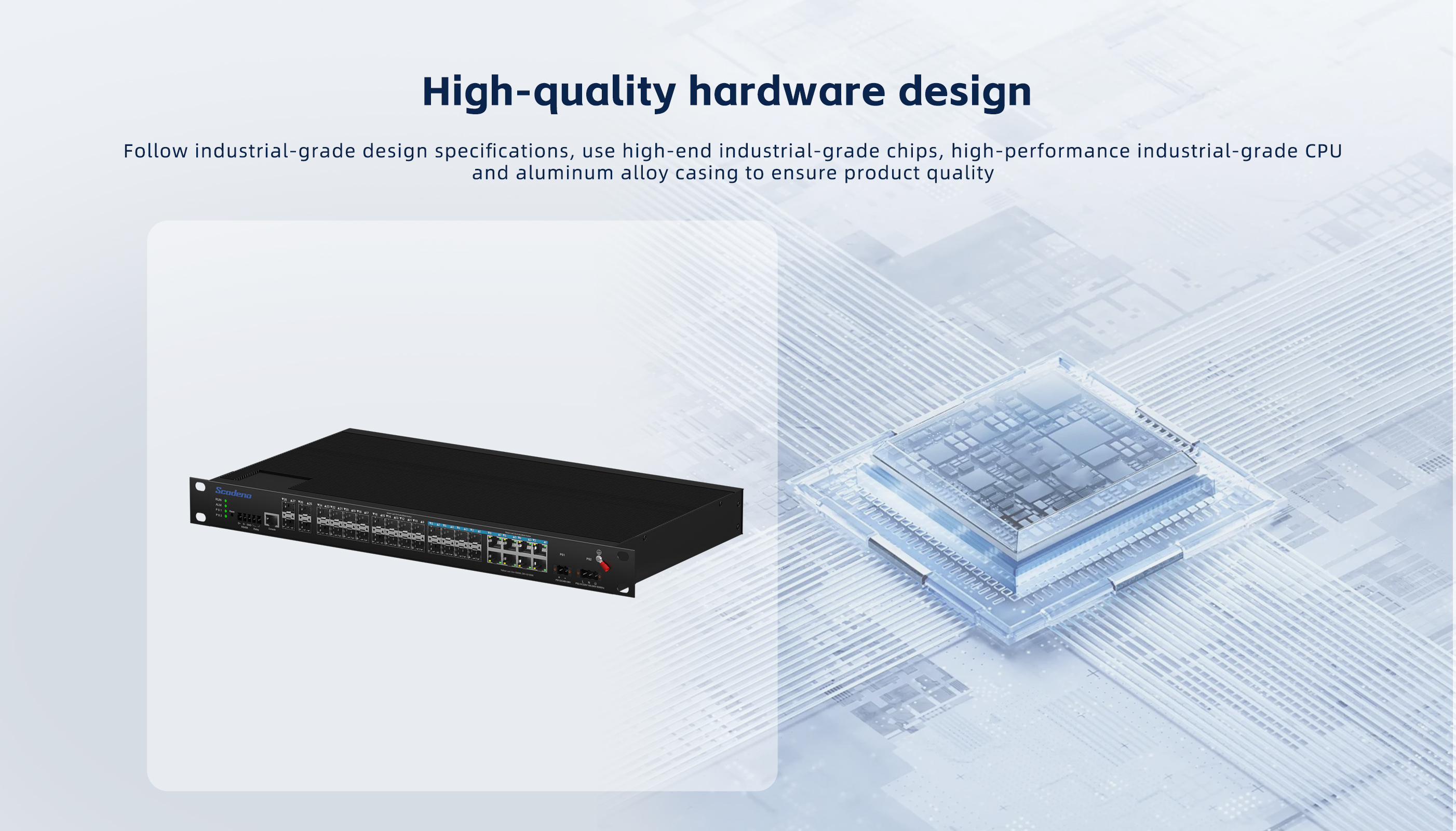

XPTN-9000-88-20GX8GC-HR-V industrial Ethernet switch

0120 × 1G SFP ports and 8 × 1G Combo ports.

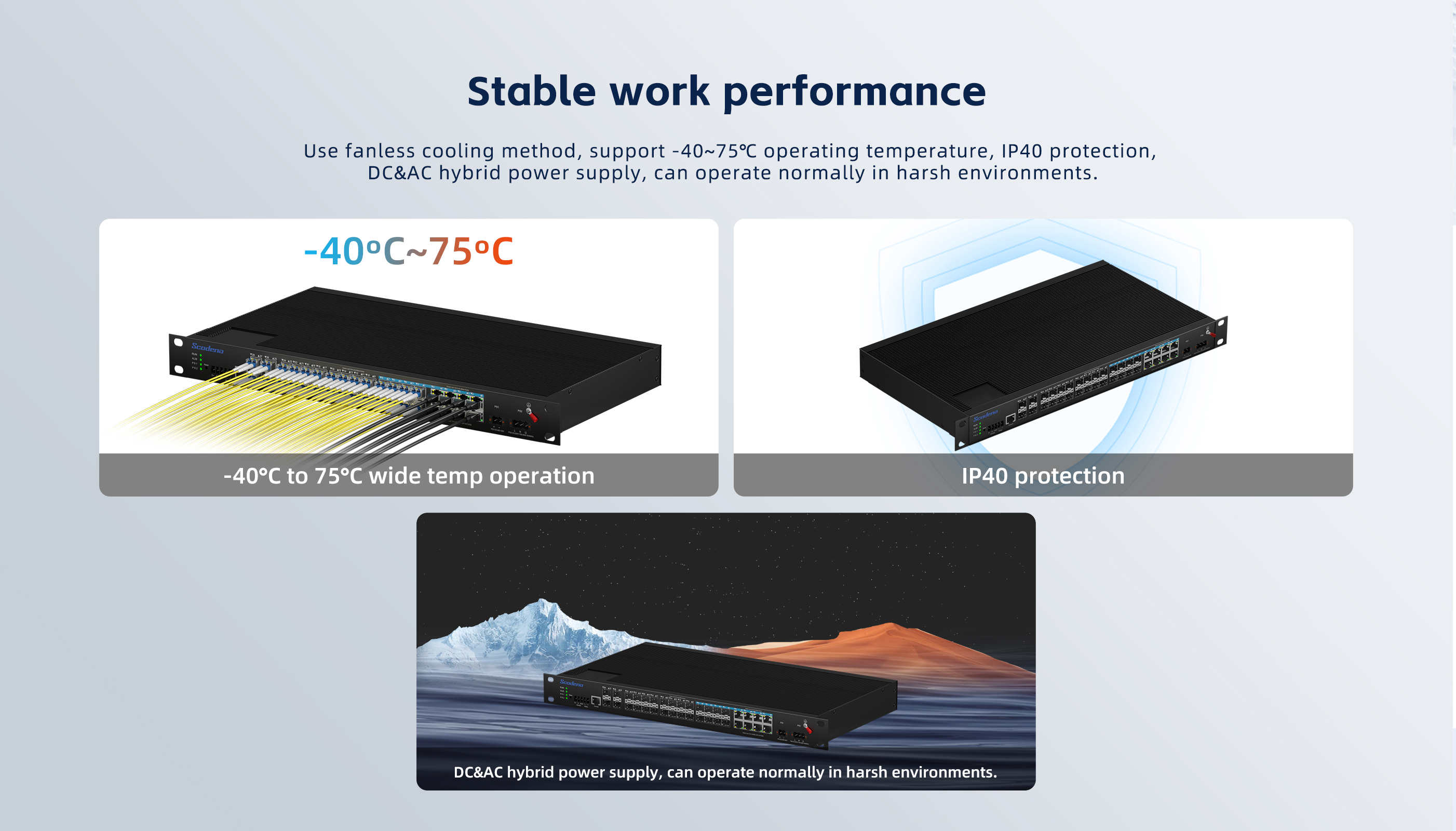

02Fanless design, IP40 protection and an operating temperature range of −40°C to +85°C.

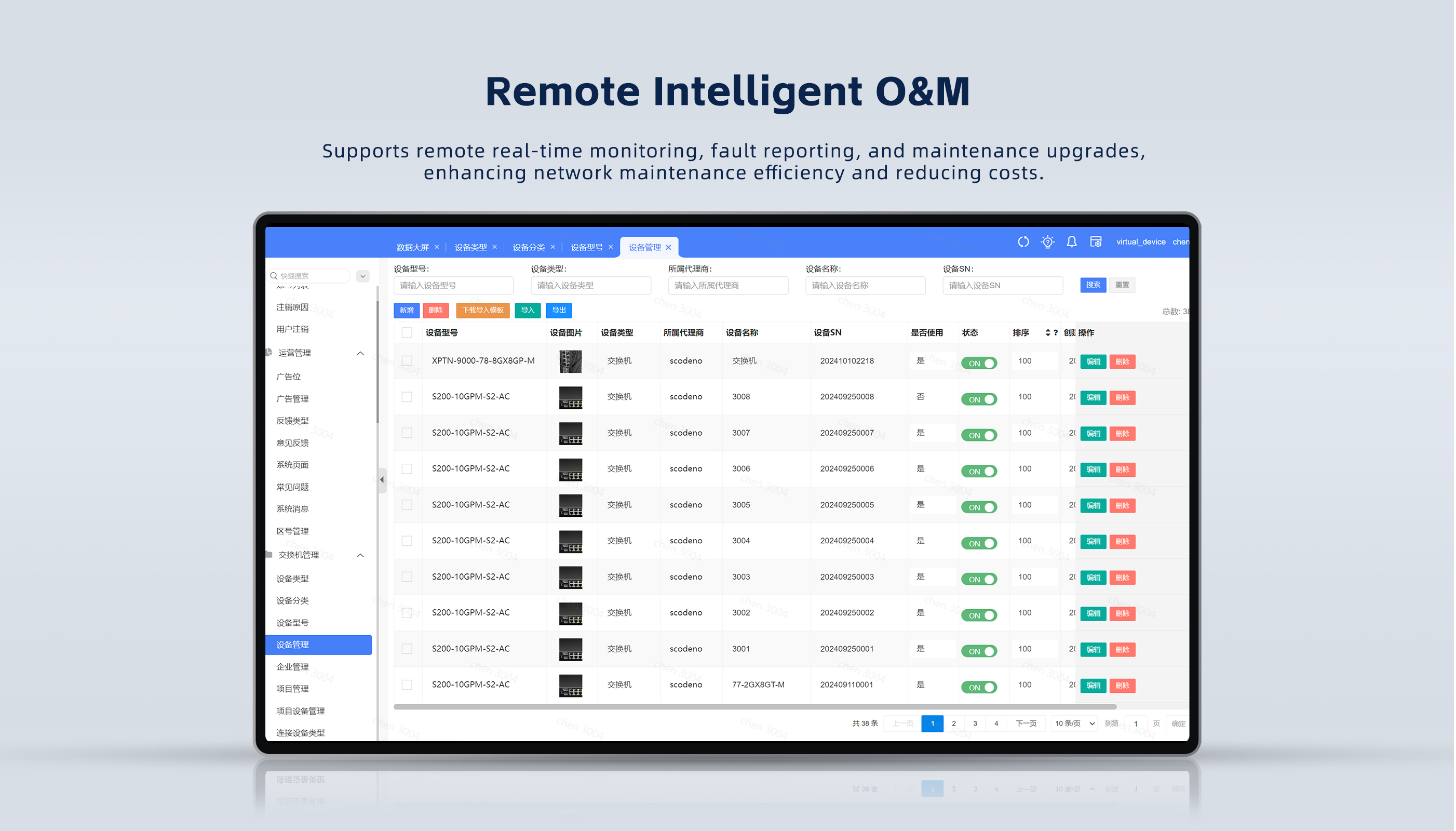

03Supports management via SNMP, Web UI, Console, CLI, Telnet and SSH.
04Supports static IPv4/IPv6 routing, RIP, OSPF and IS-IS, with ACLs, IEEE 802.1X and IP Source Guard.

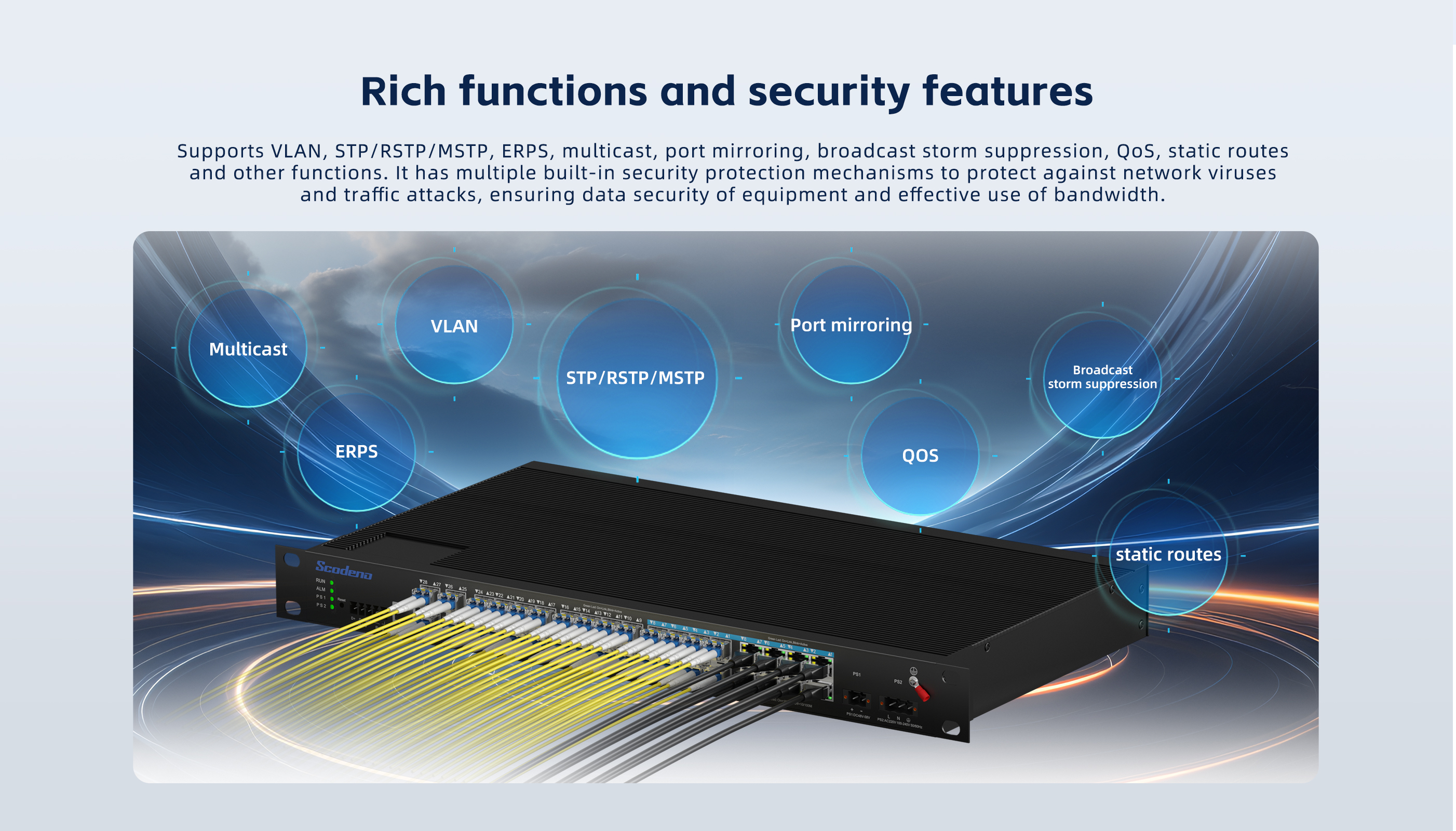

05Supports ITU-T G.8032 ERPS, STP, RSTP and MSTP for network redundancy.

Hardware Specifications

Model

XPTN-9000-88-20GX8GC-HR-V

XPTN-9000-88-20GX8GC-R-V

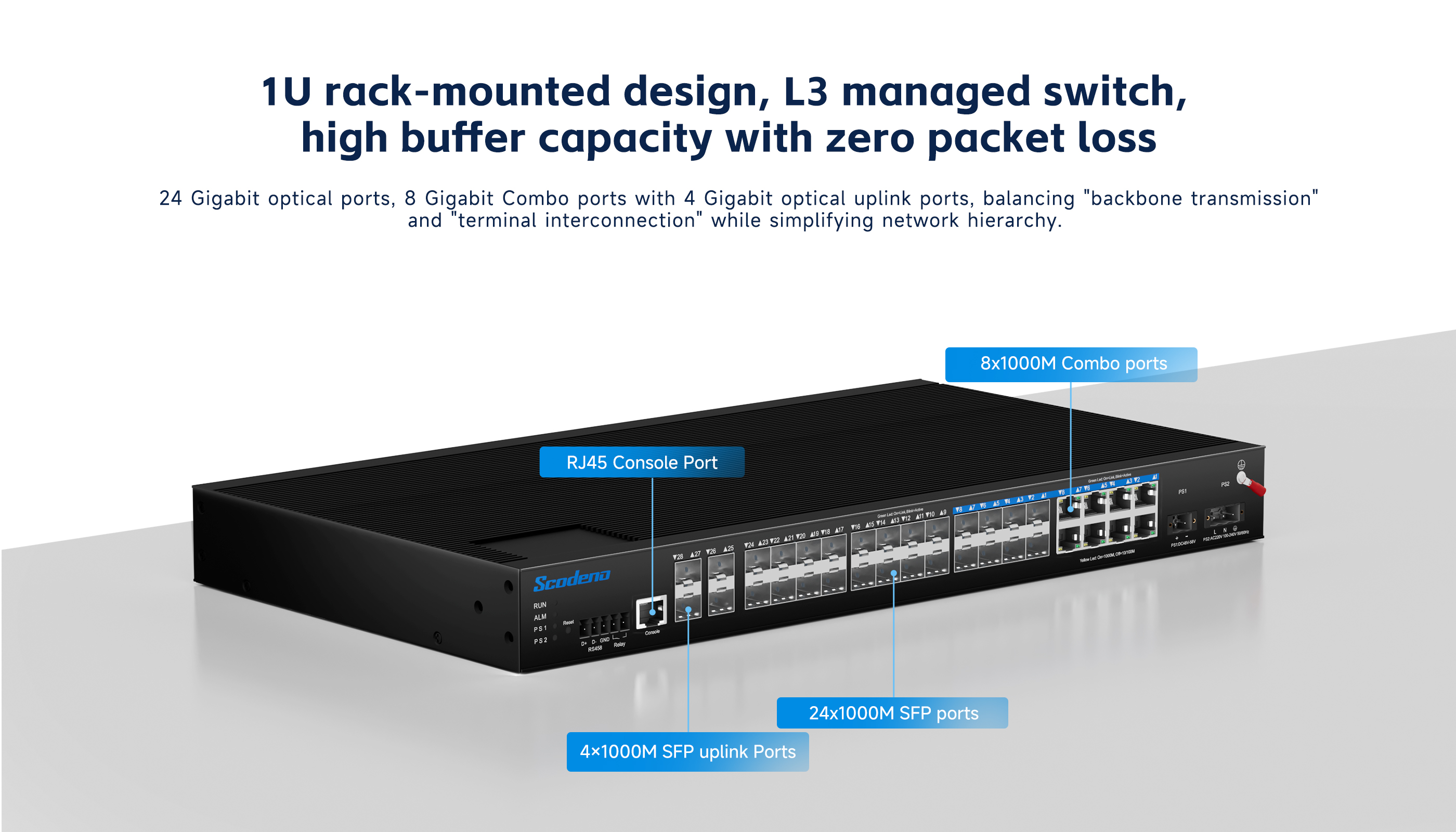

Interface

20*1000M SFP ports +8*1000M combo ports

Switching

160Gbps

Packets Forwarding Rate

95.23Mpps

MAC

16K

Port Buffer

12M

Forwarding Delay

<10us

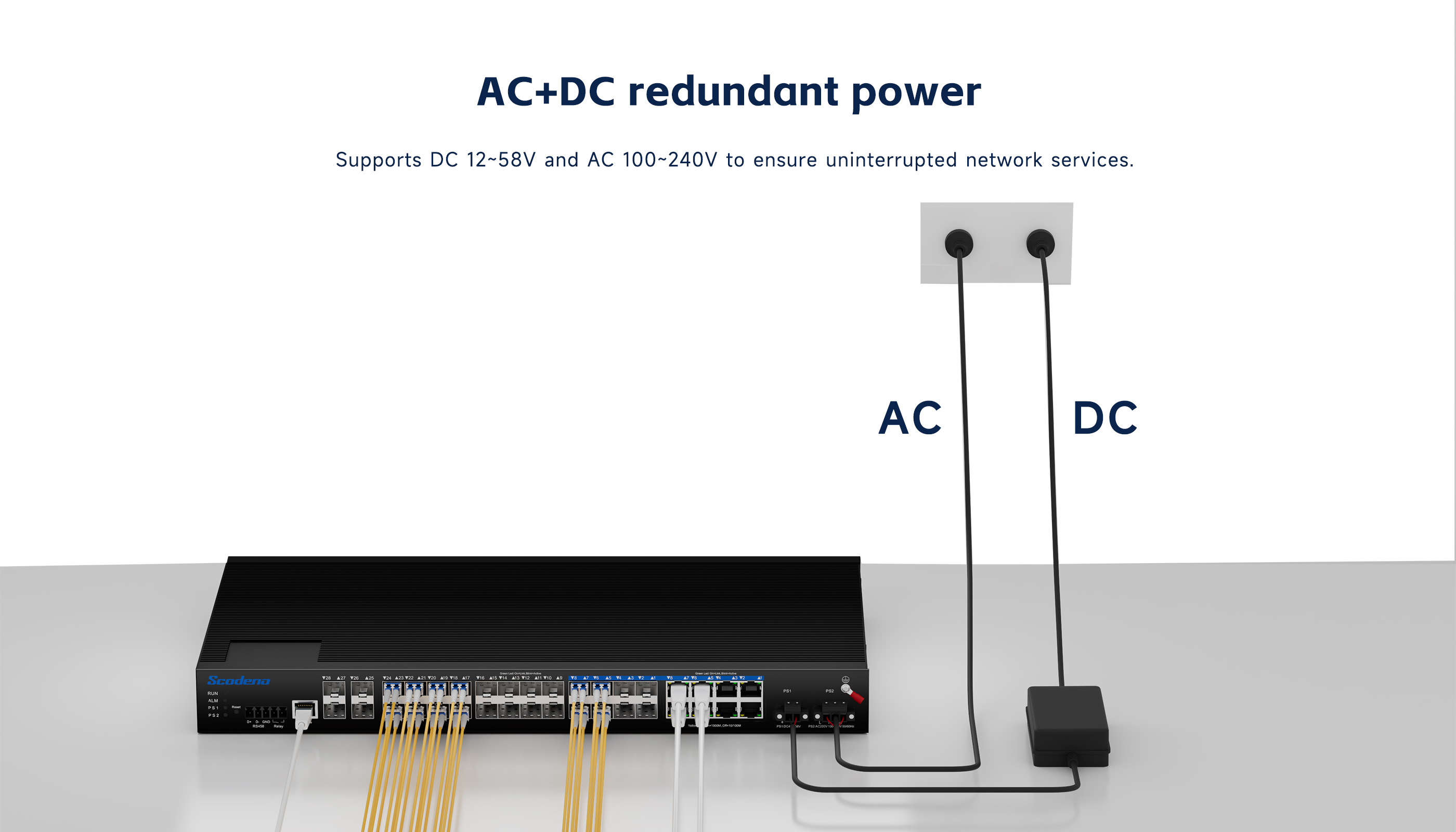

Power Supply

Phenix terminal, AC+DC power supply

Input Voltage:DC12-58V/AC 100-240V 50-60HZ

Input Voltage: DC48-58V

Empty Load Power: <36W

LED Indicators

PWR,Link/ACTLED



Environment

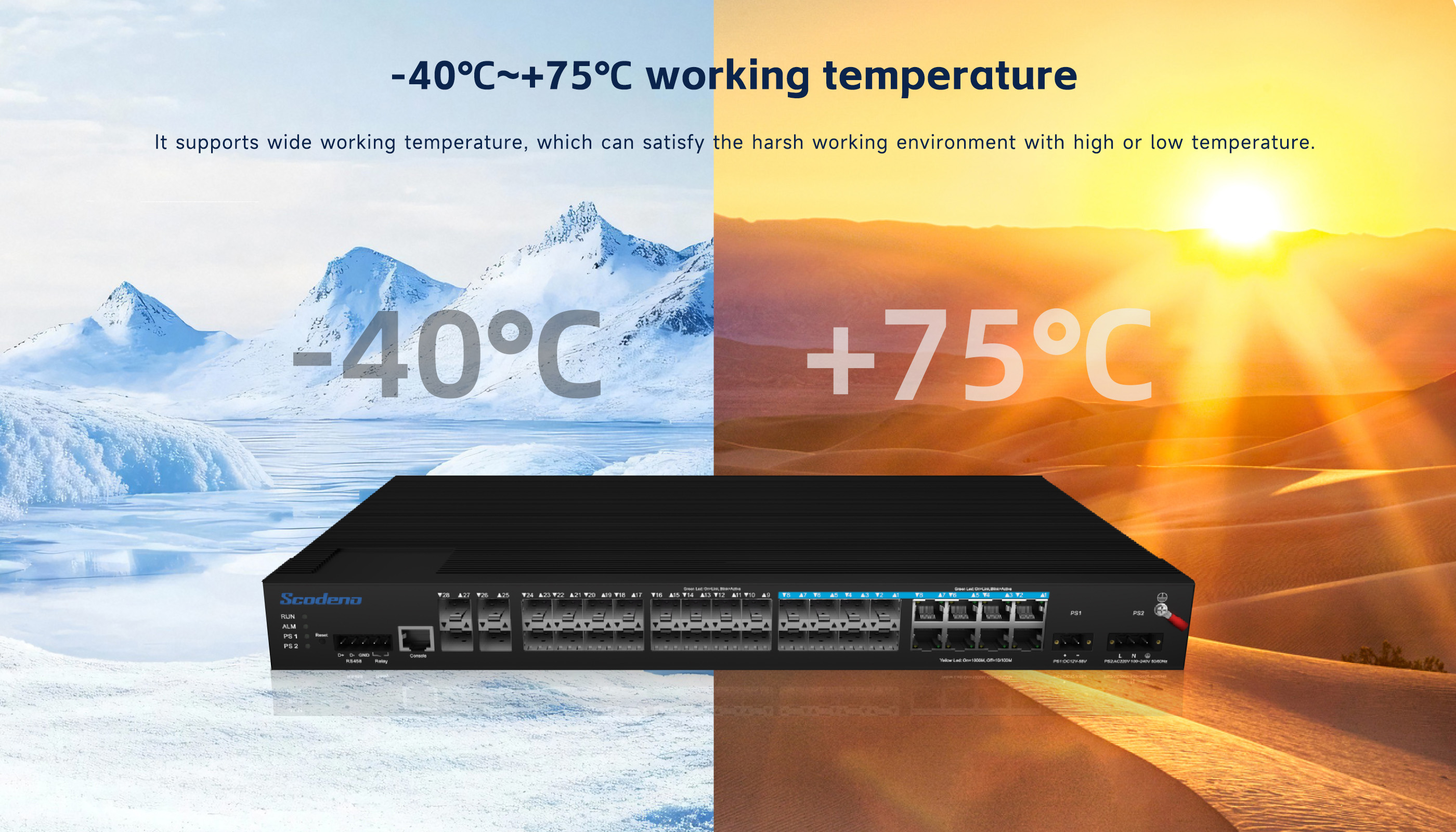

Working Temperature: –40℃ ~ 85℃

Storage Temperature: –40℃ ~ 85℃

Working Humidity: 5%~95% non-condensing

Storage Humidity: 5%~95% non-condensing

SIZE(W*D*H)

440*245*44mm

Weight

3.6KG

3.62KG

Installation Method

Rack mounted

Certificate Compliance

CE/FCC/RoHS

MTBF

100,000 hours

Software Specifications



Model

XPTN-9000-88-20GX8GC-HR-V

XPTN-9000-88-20GX8GC-R-V


VLAN

Support 4K IEEE 802.1Q VLAN

Support protocol VLAN

Support GARP


LACP

Support IEEE 802.3ad

Support static LACP

Support dynamic LACP

STP

Support IEEE 802.1d STP

Support IEEE 802.1w RSTP

Support IEEE 802.1s MSTP

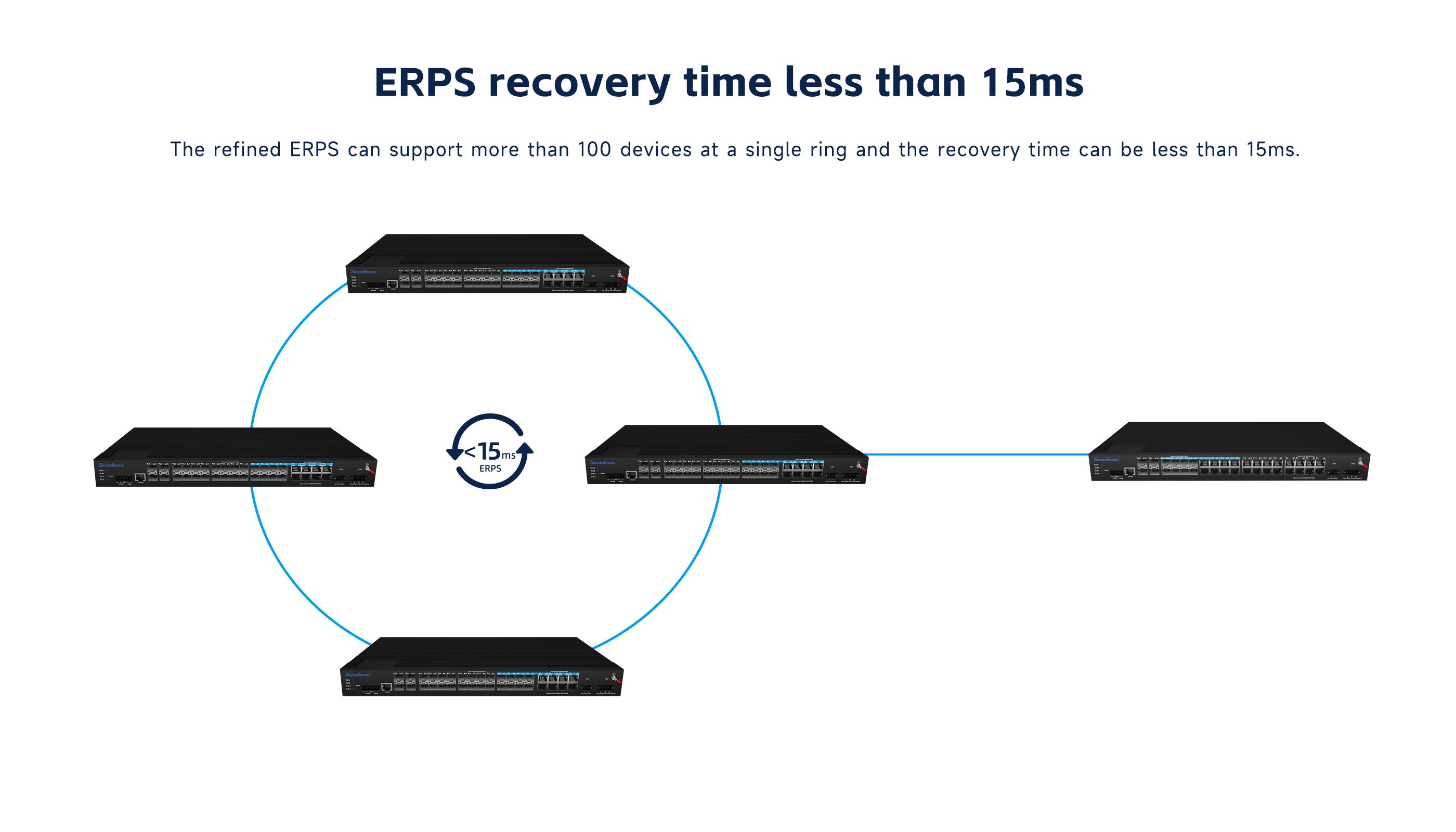

ERPS

Support ITUT G.8032 protocol

Port

Support Jumbo Frame

Support IEEE802.3X Flow Control

Support port statistics

Support Auto-MDI/MDIX

Multicast

Support IGMP Snooping


ACL

Support MAC Standard/Extended ACL

Support IPv4 Standard/Extended ACL

Support IPv6 Standard/Extended ACL

QoS

Support QoS Re-marking

Support Port Trust

Support Port Rate Limiting

Support Egress Queue Rate Limiting

DHCP

Support DHCP Snooping

Support DHCP Client

Support DHCP Server

L3 Route

IPv4 Management Address

IPV6 Management Address

Static IPv4 Route

Static IPv6 Route

RIP,OSPF,BGP4

IS-IS

ARP

Loopback Interface

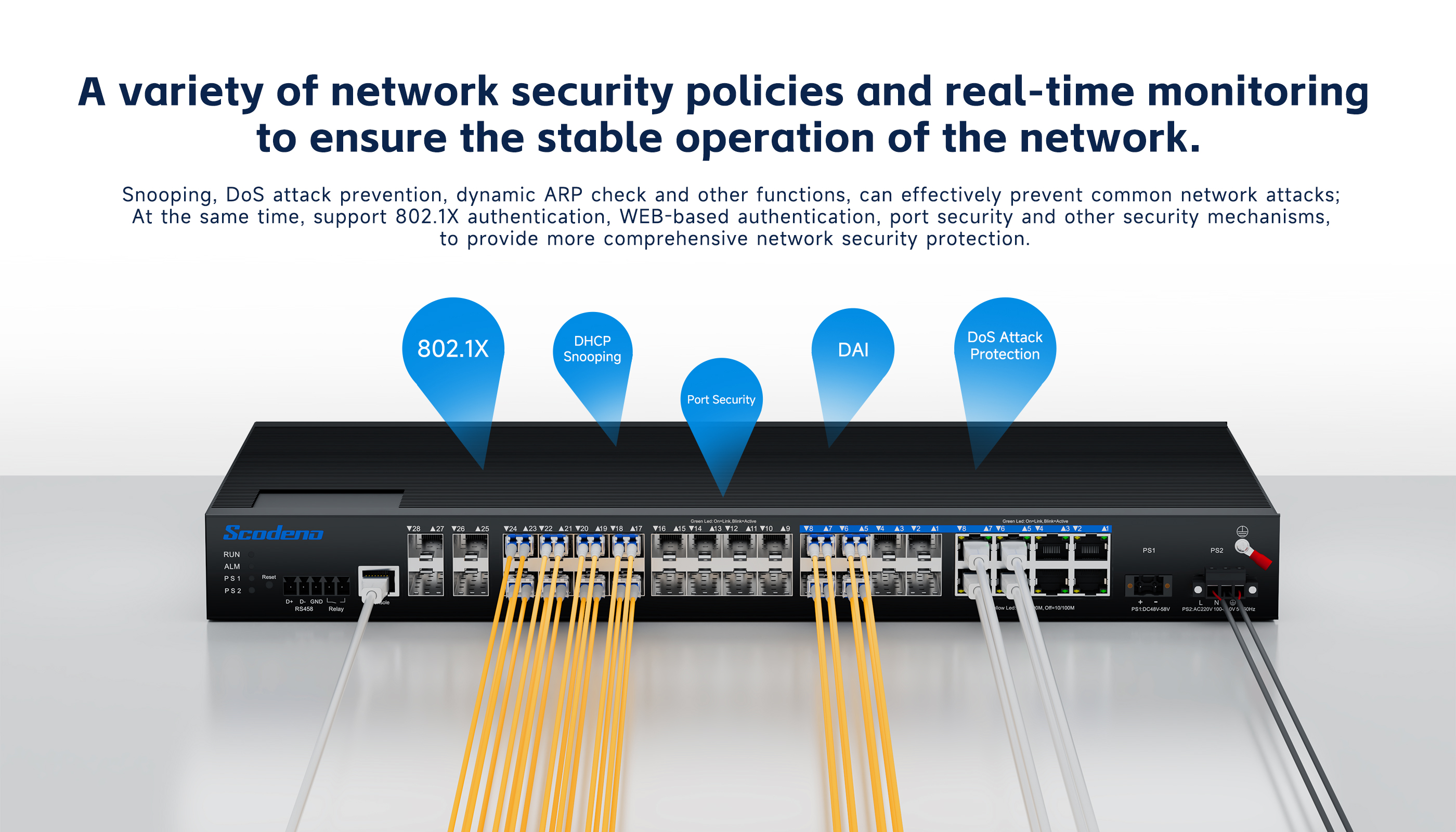

Security

Support IEEE802.1X

Support MAC-Based IEEE802.1X

Support WEB-Based IEEE802.1X

Support TACACS

Support RADIUS

IP Source Guard

Port Security

Port Isolation

Diagnosis

Support Console Logs

Support RAM logs

Support Flash logs

Support Port Mirroring(1:1)

Diagnosis


Support Ping

Support Traceroute

Support Cable Test

Support Optical Module Information

Management

Support User Management

Support System Log

Support Firmware Upgrade

Support File Upgrade

Support SNMP

Support WEB Management

Support Console

Support CLI

Support Telnet/SSH

EEE

Support IEEE802.3az


1
