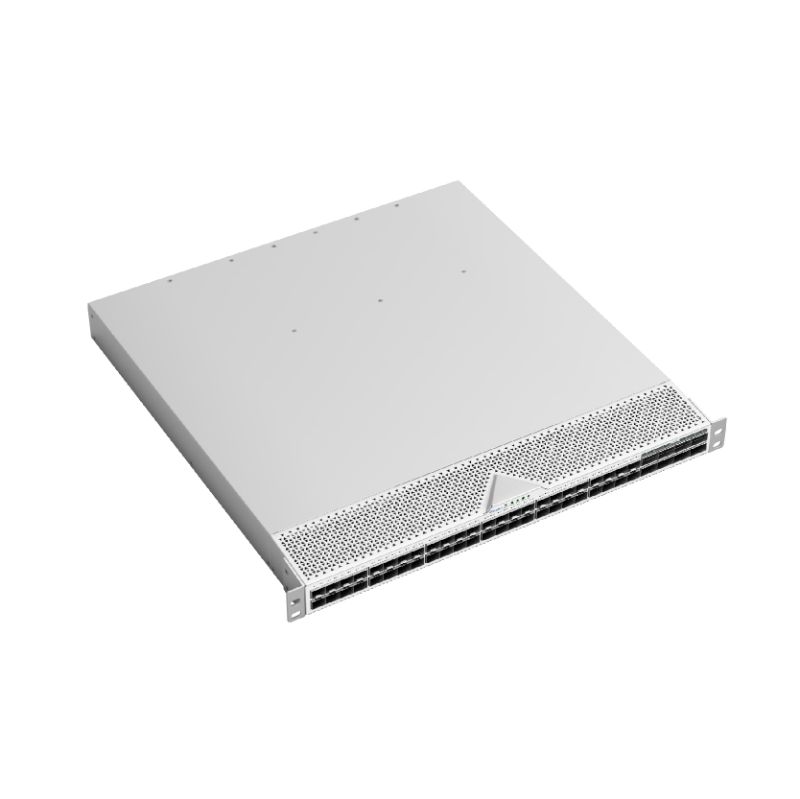

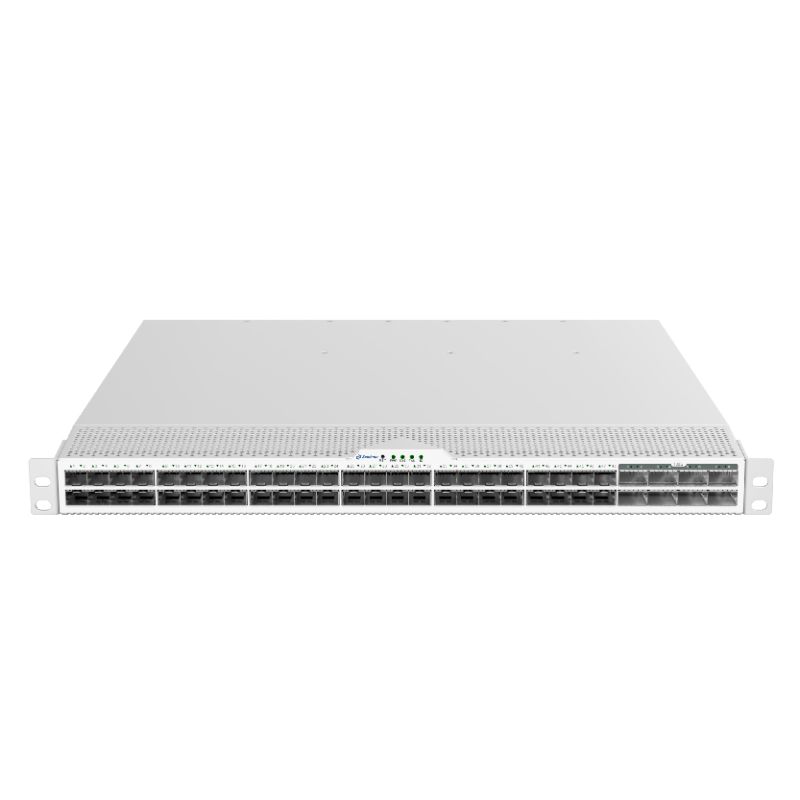

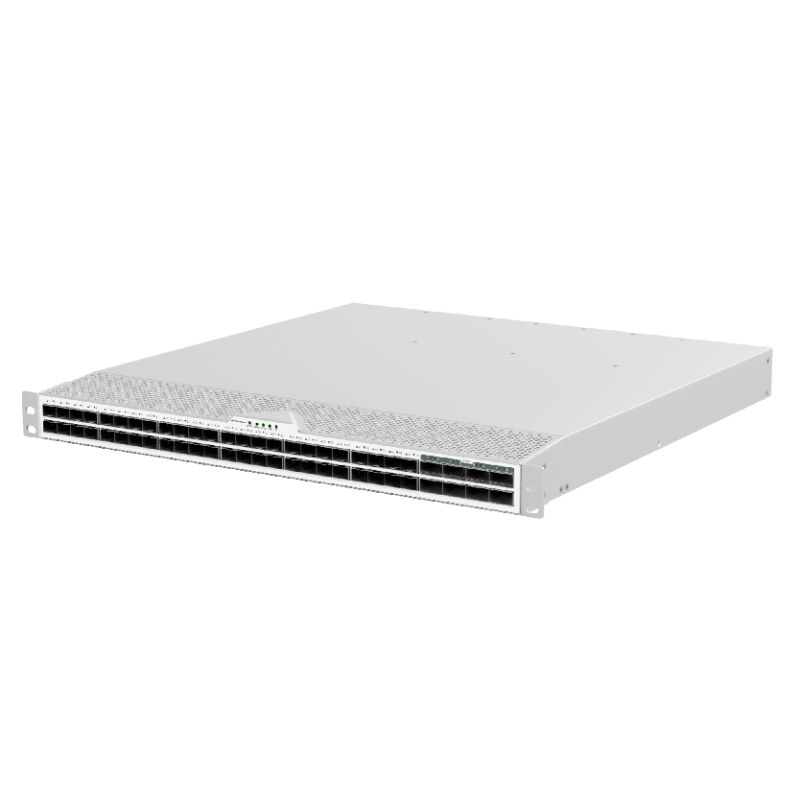

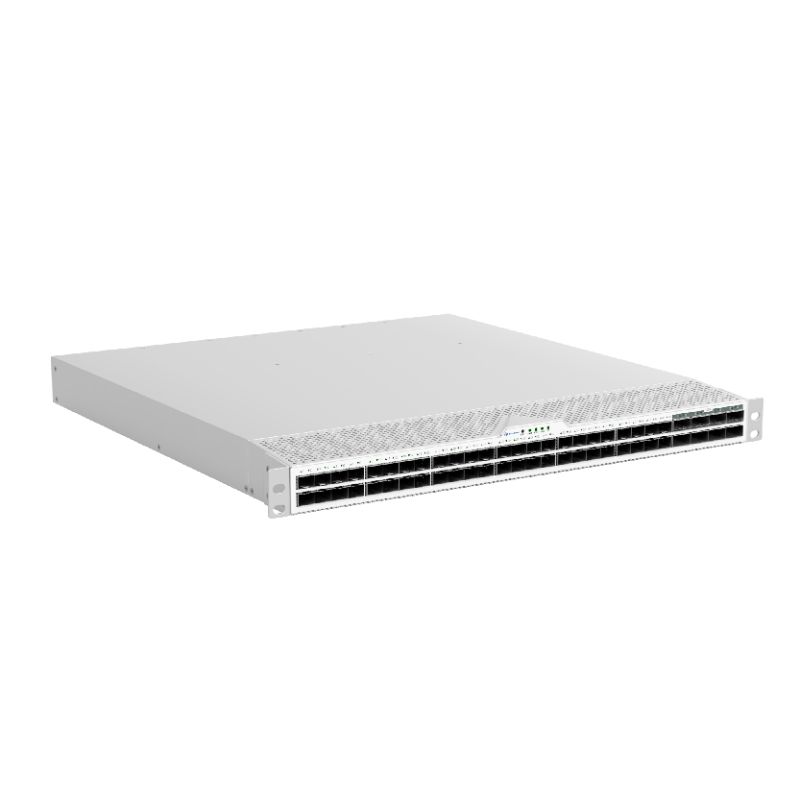

S6750-48HX8CQM-AC
1
Home
>
Products
>
100G uplink data center switch
| Function/parameter | S6750-48HX8CQM-AC | ||||
| Management ports | 1x RJ45 100/ 1000Base-T out-of-band | ||||
| 1x RJ-45 Console | |||||
| 1x USB Type A | |||||
| Switching chip | Marvell Falcon 98CX8514 | ||||
| CPU | Intel Broadwell-DE D1508 | ||||
| Memory | 8GB DDR4 | ||||
| Storage | 64GB eMMC NAND FLASH | ||||
| SSD module optional | |||||
| Power supply units | 2 x 100−240 VAC, 550W | ||||
| Redundant, hot swappable | |||||
| Power consumption | 520W max | ||||
| Fan unit | 5 (4+1 redundant) | ||||
| Hot swappable | |||||
| Form factor and dimension | 1 RU | ||||
| (W) 445 mm x (D) 470 mm x (H) 44 mm | |||||
| Weight, kg | 9.6 kg | ||||
| Operating temperature | 0 ° С – 40°С | ||||
| Storage temperature | -40 ° С – 70°С | ||||
| Operating humidity | 5% – 95% (non-condensing) | ||||
| Storage humidity | 5% – 95% (non-condensing) | ||||
| Operating altitude | 3000m max | ||||
| Switching Capacity | 4 Tbps | ||||
| Forwarding Rate | 2800Mpps | ||||
| Jumbo frames | Yes | ||||
| Packet Buffer Size | 24 MB | ||||
| Bridge FDB Entries | 192K | ||||
| Up to 256K | |||||
| Router IPv4 Host Entries | Up to 256K | ||||
| Router IPv6 Host Entries | Up to 128K | ||||
| Router LPM | IPv4 - up to 512K unicast prefixes | ||||
| IPv6 - up to 256K unicast 64-bit prefixes | |||||
| TCAM Resources (Shared between TTI, IPCL and EPCL Classification Engines) | 36K x 10B rules (18K x 10B per dual control pipe) | ||||
| Virtual Ports (ePorts) | 8K | ||||
| Bridge Domains (eVLANs) | Up to 8K | ||||
| Multicast Physical Port Groups (VIDX) | Up to 4K | ||||
| Multicast Virtual Port Groups (eVIDX) | 16K | ||||
| Multicast Linked List (MLL) Entries | 16K | ||||
| Tunnel-Start/ARP Table | U p to 192K ARP entries Up to 48K Non-IPv6 Tunnel-Start entries Up to 24K IPv6 Tunnel-Start entries | ||||
| Router Next Hop Entries | 24K | ||||
| Router ECMP Groups | 12K | ||||
| ePort ECMP Groups | 16K | ||||
| Trunk ECMP Group | Up to 4K | ||||
| L2 ECMP Table (Shared by ePort ECMP group and Trunk ECMP groups) | 16K ECMP members Each ECMP group may contain up to 4K EMCP members | ||||
| Hardware OAM Flows | 16K ECMP members 4K OAM flows (1K OAM flows per control pipe) | ||||
| Spanning Tree Groups | Up to 4K | ||||
