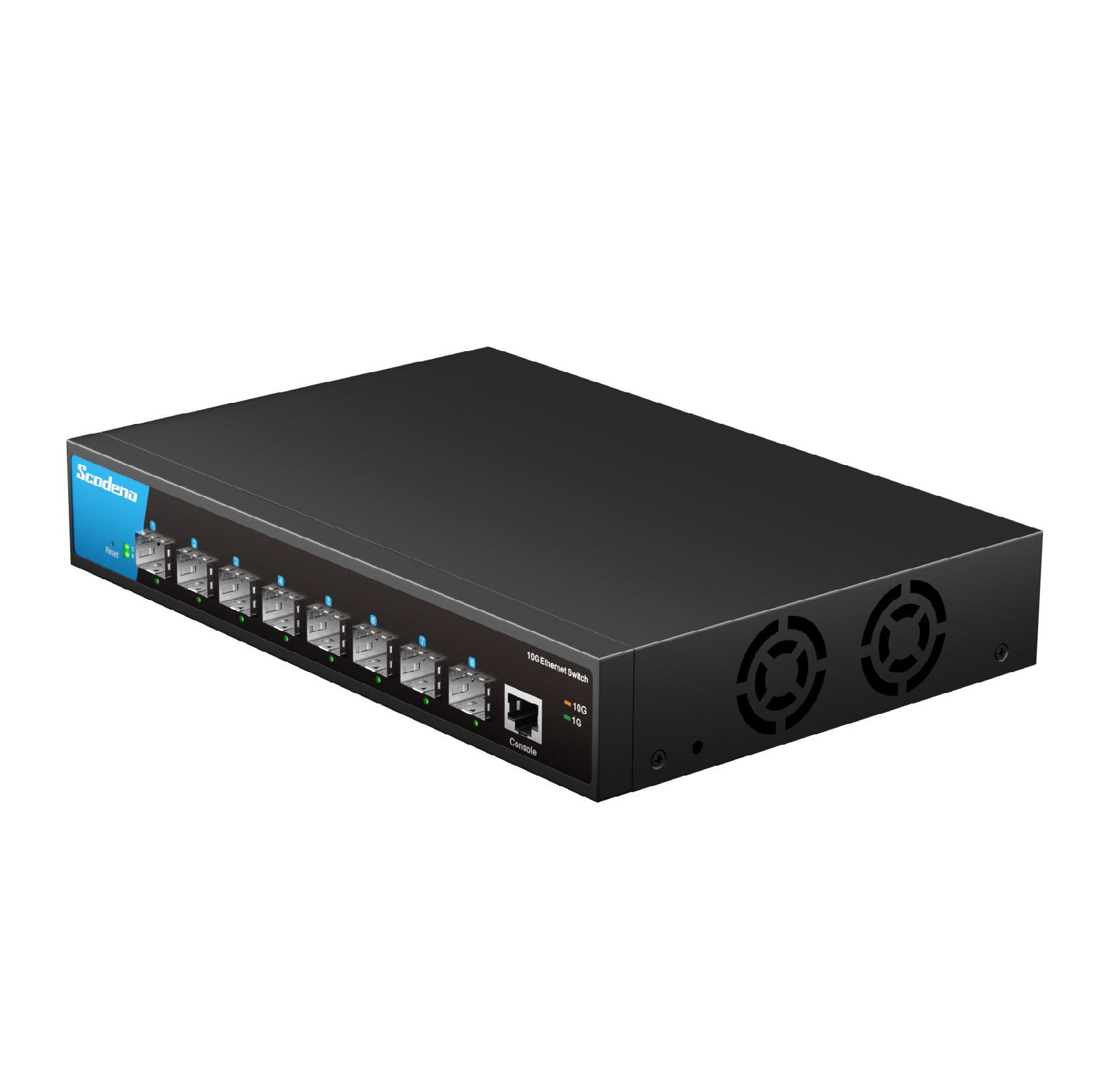

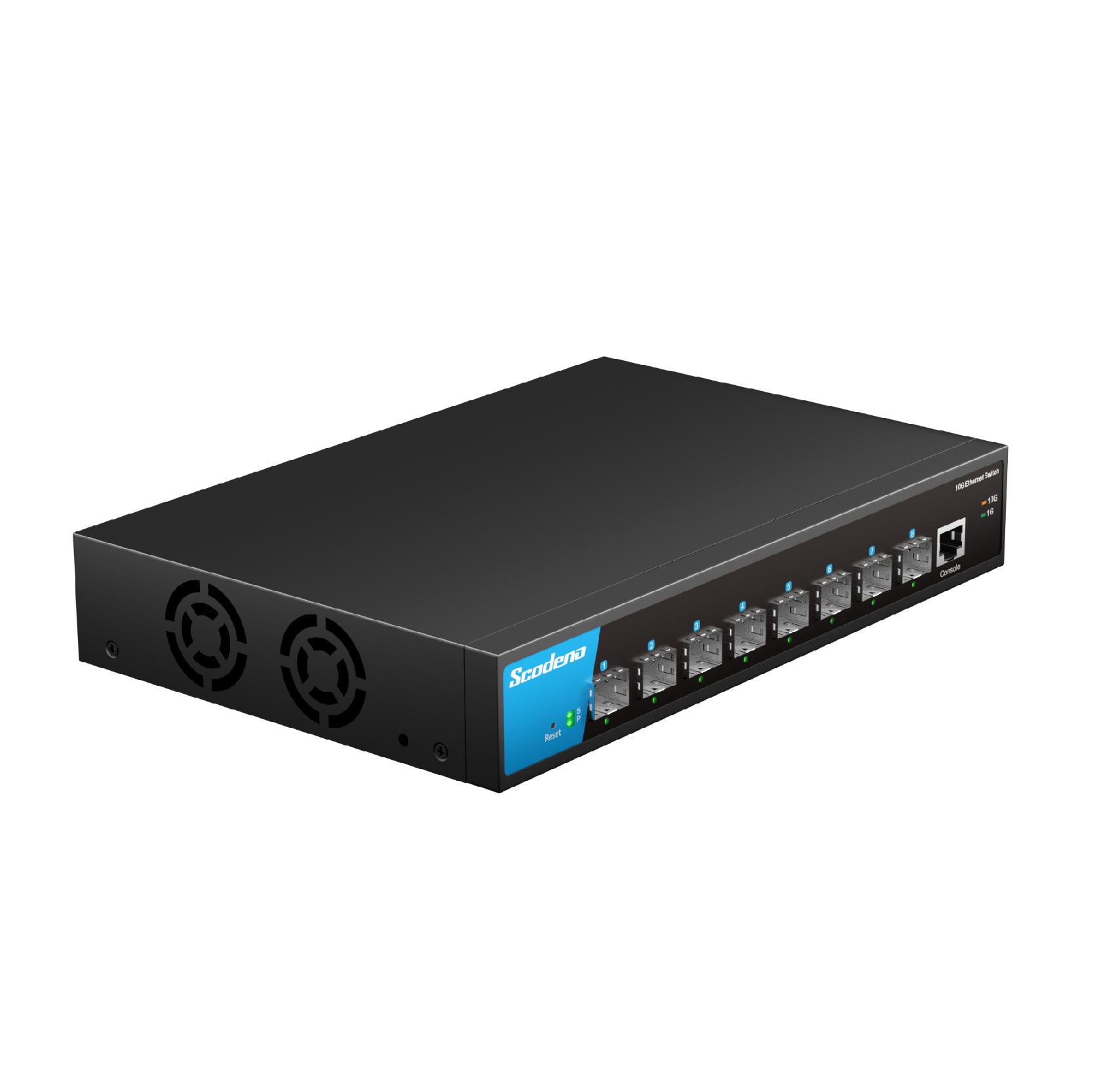

S200-8XM-AC

lESD: contact 8KV, air 15KV;

l-10~55℃ wide operating temperature range;

lSupport static routing function;

lSupport dynamic routing such as OSPF, RIP etc ;

lSupport L2 management functions such as VLAN, LLDP, LACP etc.;

lSupport rich security features such as 802.1X, AAA, Port Security, DHCP Snooping, Port Isolation, DAI etc.;

lSupport Telnet/SSH, SNMP, WEB UI, CLI, and management.


The S200 series of management switches adopts low power consumption design, which meets the requirements of green environmental protection   and energy saving; Rich L2/L3 functional features to meet different business requirements; Powerful security policies and rich security features ensure network security; The management platform is simple and easy to use, greatly facilitating the operation and maintenance methods of management personnel.


Overview
Parameter
Application
Files

Shenzhen Scodeno Technology Co., Ltd.

| Hardware Features


Model

S200-8XM-AC

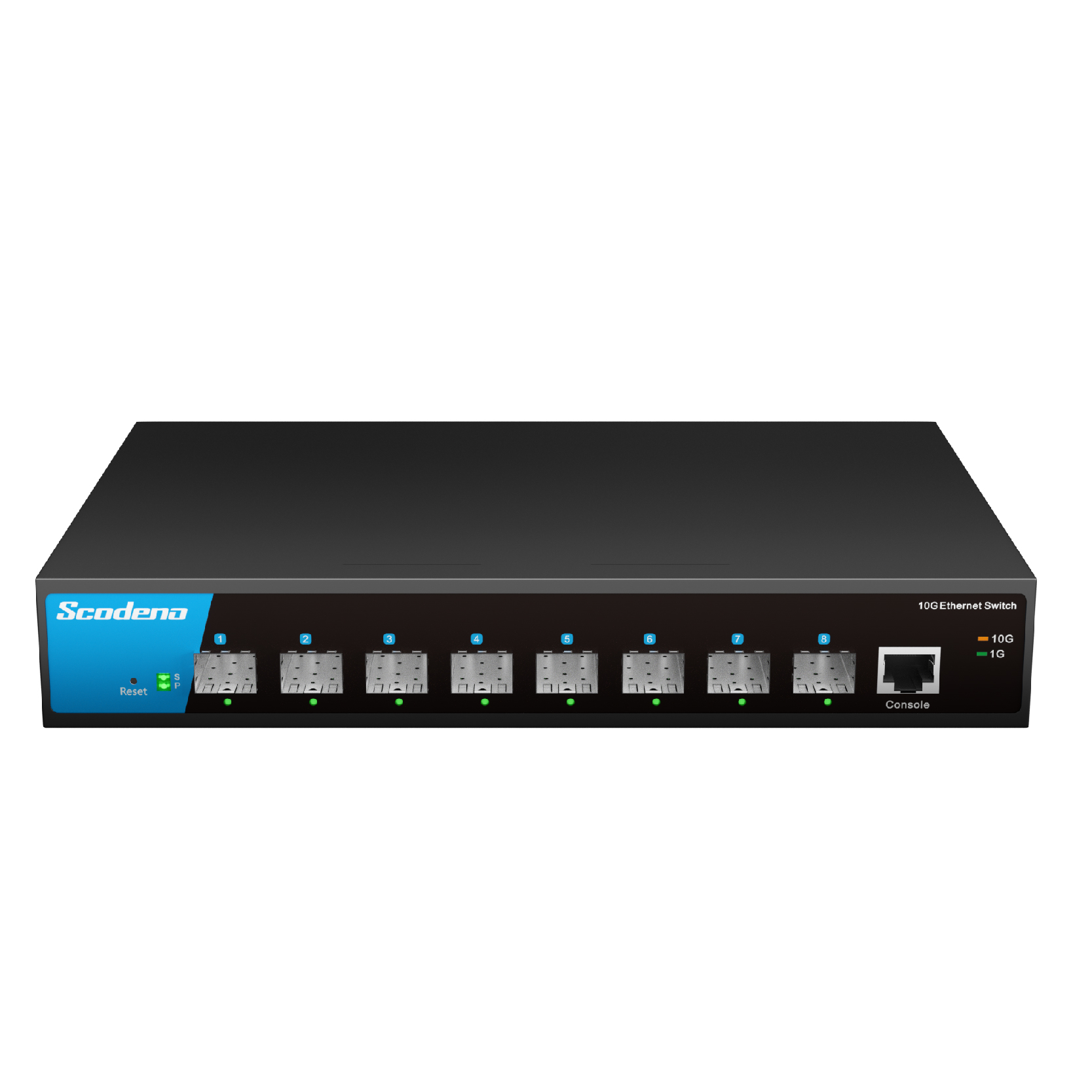

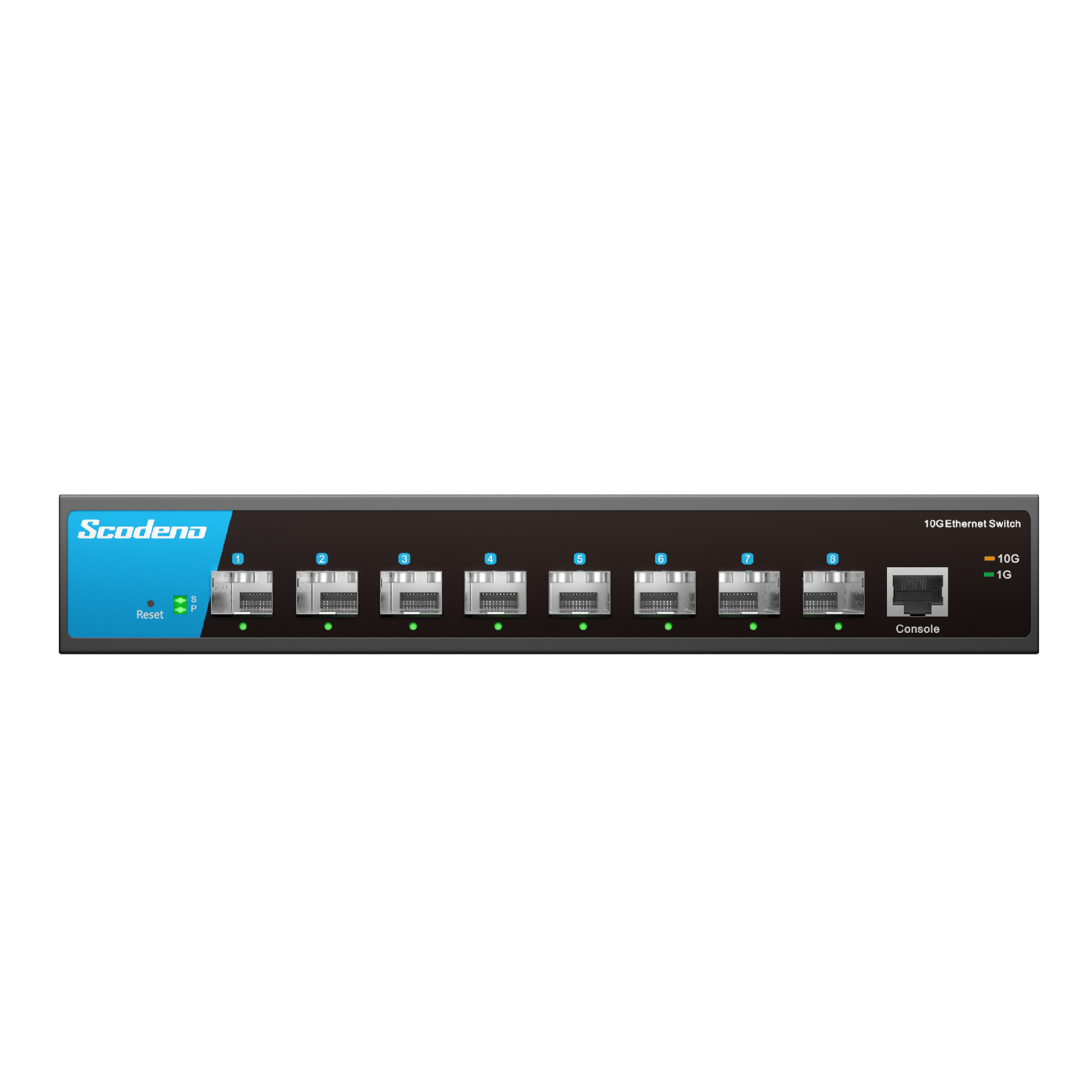

Interface

8*1/10G SFP+ ports

1*Console Management

Switching Capacity

160Gbps

Packets Forwarding Rate

119.04Mpps

MAC Table

16K

Packet Buffer

12M

Transfer Delay

<10us

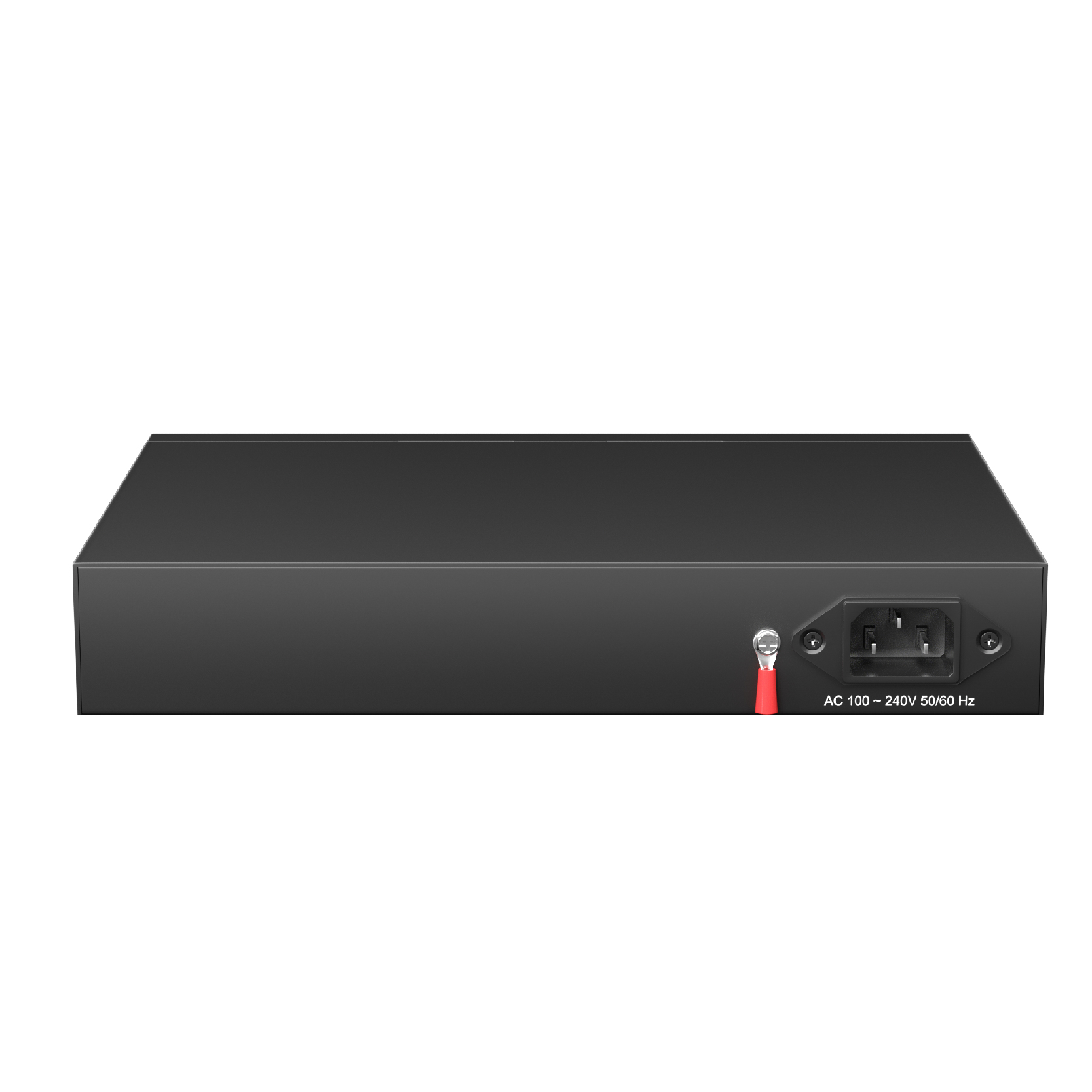

Power Supply

AC100-240V 50/60HZ

Empty Load Power: <35W

LED Indicators

PWR,SYS, Link/ACT


Environment

Working Temperature: –10 ℃ ~ 45℃

Storage Temperature: –40 ℃ ~ 85℃

Working Humidity: 10%~95% non-condensing

Storage Humidity: 10%~95% non-condensing

Size(W*D*H)

270*181*44mm



Model

S200-8XM-AC

ERPS

Support ITUT G.8032 protocol



Port

Support Jumbo Frame

Support IEEE802.3X Flow Control

Support port statistics


Support Auto-MDI/MDIX



Multicast

Support IGMP Snooping

Support MLD Snooping

Support MVR


ACL

Support MAC Standard/Extended ACL

Support IPv4 Standard/Extended ACL

Support IPv6 Standard/Extended ACL




QoS

Support QoS Re-marking

Support Port Trust

Support Port Rate Limiting

Support Egress Queue Rate Limiting

Support SP, WRR scheduling algorithms

Support CoS, DSCP, IP Priority Mapping



DHCP

DHCP Interface Priority IP Binding

Support DHCP Snooping

Support DHCP Client

Support DHCP Server




L3 Route

IPv4 Management Address

IPV6 Management Address

Static IPv4 Route

Static IPv6 Route

OSPF, RIP

ARP

Loopback Interface

Security

Support Management Channel Configuration

Support AAA

Support IEEE802.1X

Support MAC-Based IEEE802.1X


Model

S200-8XM-AC

Weight

1.25KG



EMC

Power Surge Protection: 6KV/2KV

Anti-static Interference: 8KV/15KV

Free Drop: 0.5M

Certificate Compliance

CE/FCC/RoHS

| Software Specifications

Model

S200-8XM-AC




VLAN

Support 4K IEEE 802.1Q VLAN

Support protocol VLAN

Support MAC VLAN

Support voice VLAN

Support video VLAN

Support GARP


LACP

Support IEEE 802.3ad

Support static LACP

Support dynamic LACP




STP

Support IEEE 802.1d STP

Support IEEE 802.1w RSTP

Support IEEE 802.1s MSTP

Spanning Tree BPDU Filtering

Spanning Tree BPDU Guard

Spanning Tree Edge Port

LLDP

Support IEEE 802.1ab protocol

Model

S200-8XM-AC





Security

Support WEB-Based IEEE802.1X

Denial of Service Protection

Dynamic ARP Inspection(DAI)

IP Source Guard

Port Security

Port Isolation

DNS

Support DNS Client

Support DNS Server




Diagnosis



Support Console Logs

Support RAM logs

Support Flash logs

Support Port Mirroring(1:1,N:1)

Support Ping

Support Traceroute

Support Cable Test

Support UDLD protocol

Support Optical Module Information

Management

Support User Management

Support System Log

Support Firmware Upgrade

Support File Upgrade

Support SNMP

Support WEB Management

Support Console

Support CLI

Support Telnet/SSH

Support SNTP Client

Support RMON

EEE

Support IEEE802.3az


Shenzhen Scodeno Technology Co., Ltd.

S200-8XM-AC Product Datasheet V2.0
