XPTN-9000-43-1FX1TX

l1*100M SFP port, 1*10/100M RJ45 port, 768K port buffer.

lOperating temperature : -40℃~+75℃.

lDC redundant power supply.

lFanless design, silent and energy-efficient.

lIP40 protection rating, wide temperature range, and high protection for harsh environments.

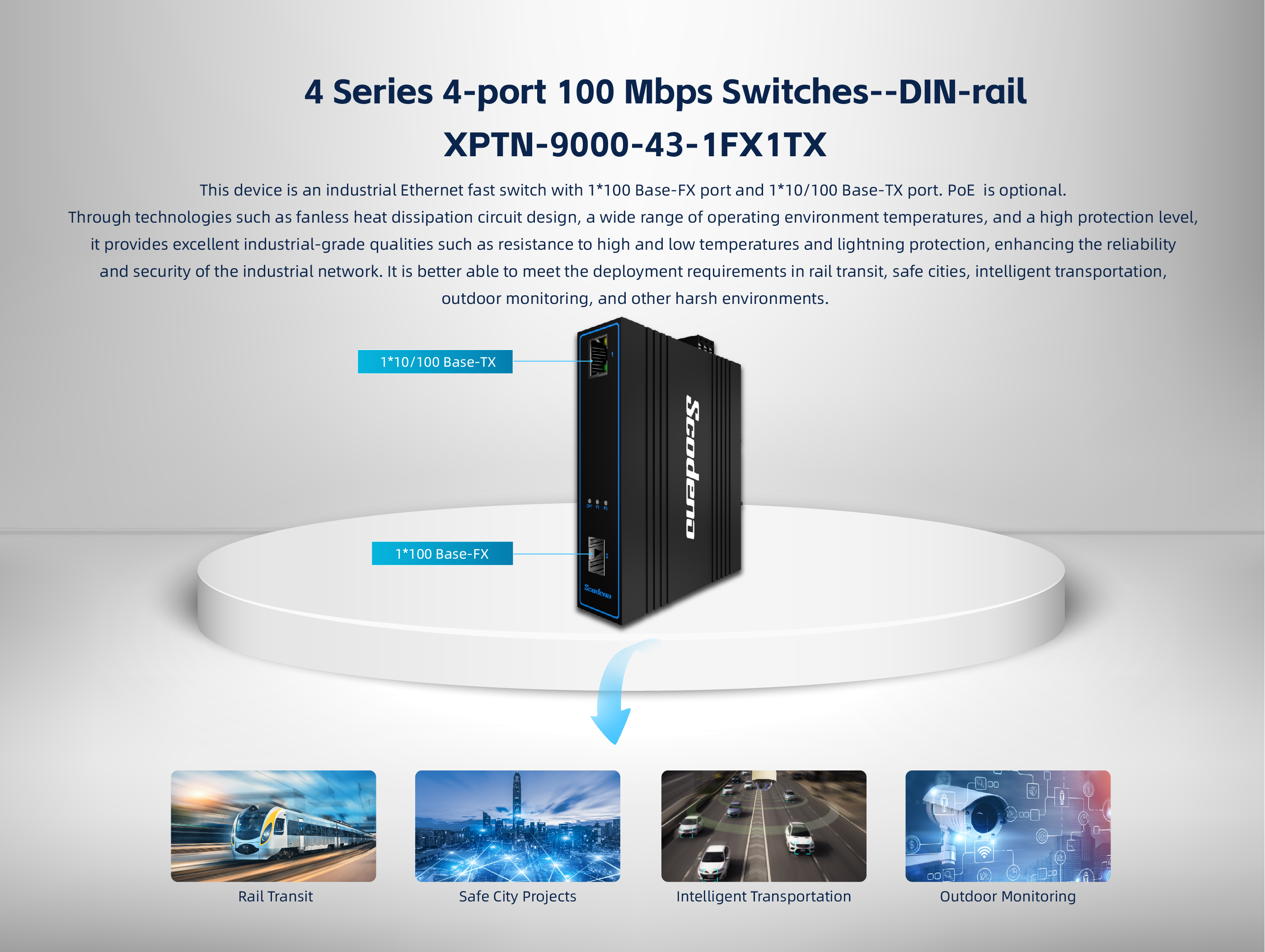

This device is an industrial Ethernet fast switch with 1 100M optical

port and 1 10/100M adaptive network port. POE is optional, and through

fanless cooling circuit design, wide range working environment temperature,

high protection level and other technologies, it provides excellent industrial

grade quality such as high/low temperature resistance and lightning protection,

enhancing the reliability and security of industrial networks. Better able to meet

deployment requirements in rail transit, safe cities, intelligent transportation,

outdoor monitoring, and other harsh environments


Overview
Parameter
Application
Files

1_画板 1.jpg





Hardware Specifications

Model

XPTN-9000-43-1FX1TX

XPTN-9000-43-1FX1TP

Interface

1*100M SFP ports + 1*10/100M RJ45 ports

Switching

1Gbps

Packets Forwarding Rate

0.297Mpps

MAC

2K

Port Buffer

768K

Forwarding Delay

<5us


Power Supply

Phenix terminal, DC redundant input

Input Voltage: DC12-58V

Input Voltage: DC48-58V

Empty Load Power: <5W

LED Indicators

P1,P2,OPT


PoE


                              \

1 ports support PoE

PoE budget: 35W

IEEE802.3 af/at standard

PIN Sequence: 1,2+/3,6-



Environment

Working Temperature: –40 ℃ ~ 75

Storage Temperature: –40 ℃ ~ 85

Working Humidity: 5%~95% non-condensing

Storage Humidity: 5%~95% non-condensing


DIP Specification

LFD (Link Fault Diversion )

Reserve

Reserve

Reserve

SIZE(W*D*H)

118*91*31mm

Weight

0.36KG

0.38KG

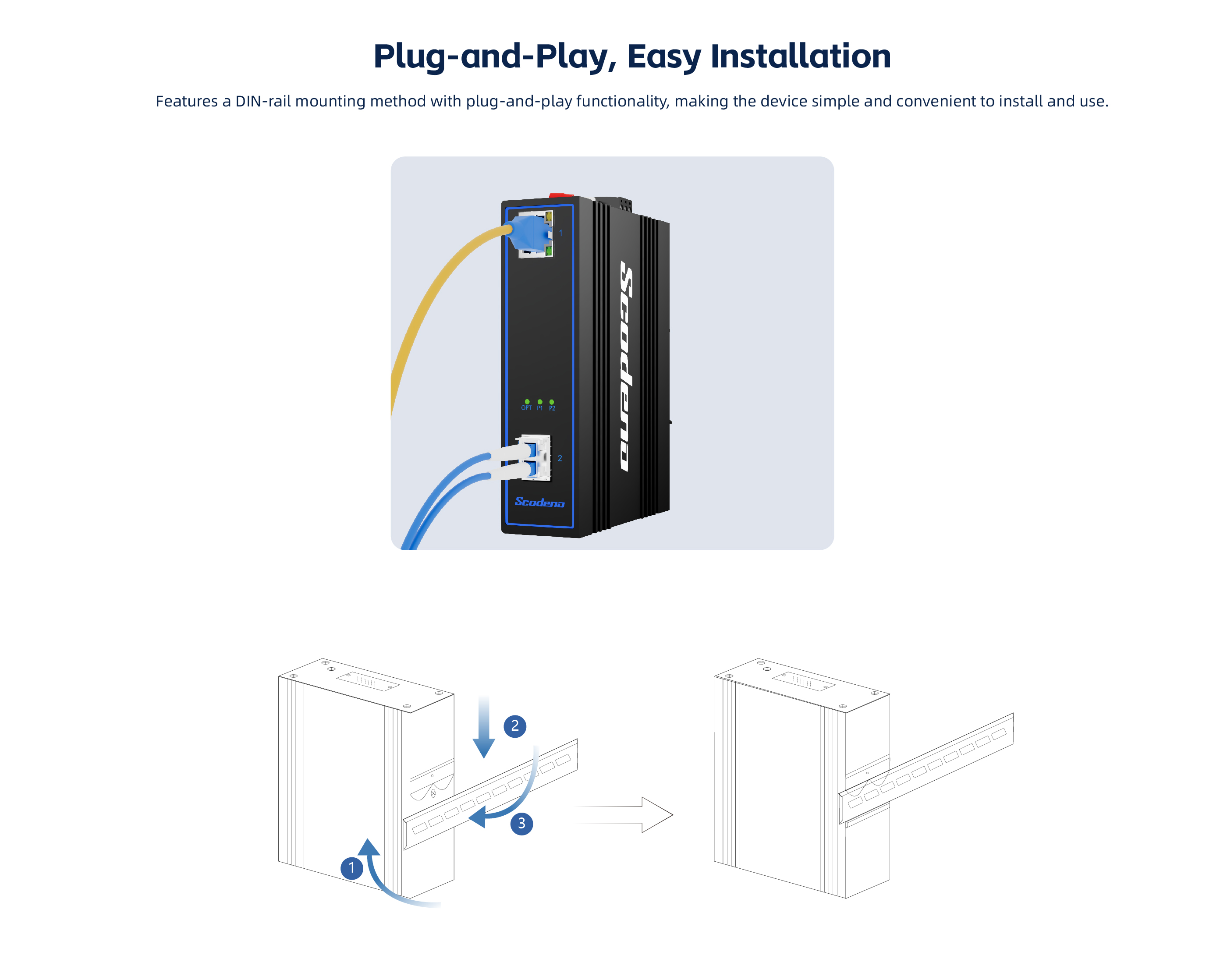

Installation Method

Din Rail

Certificate Compliance

CE/FCC/RoHS

MTBF

100,000 hours
