| Provider Mode Ports |
| Fixed port | 2*10GBase-X ，8*10/100/1000 Base－T |
| Management Port | Support console,
Support USB |
| Power interface | Phoenix terminal, dual power redundancy |
| LED Indicators | PWR ，Link/ACT LED |
 Cable type&Transmission distance |
| Twisted-pair | 0-100m（ CAT5e,CAT6） |
| Monomode optical fiber | 20/40/60/80/100KM |
| Multimode optical fibre | 550m |
| Network Topology |

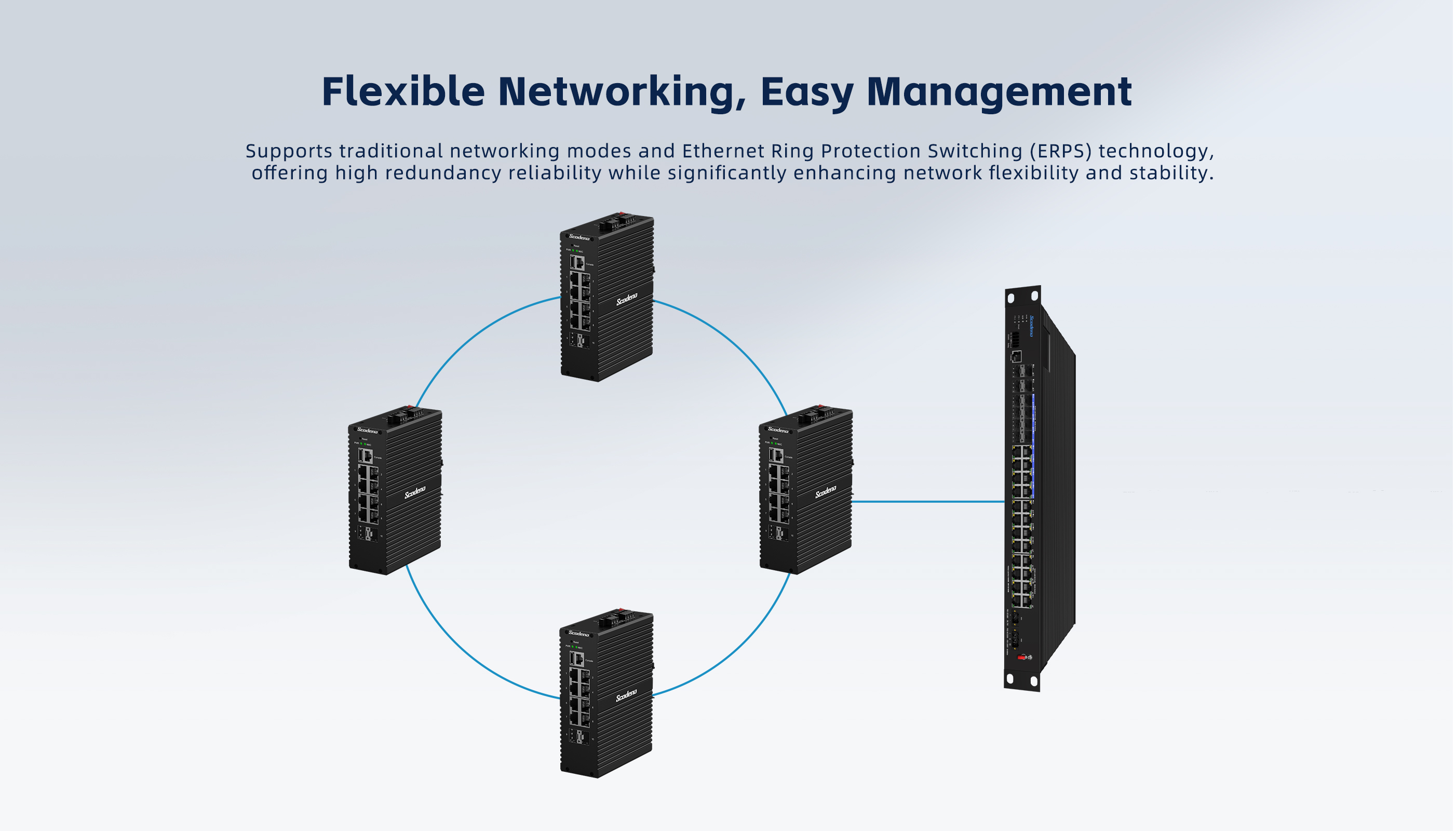

| Ring topology | Support |
| Star topology | Support |
| Bus topology | Support |
| Tree Topology | Support |
| Hybrid topology | Support |
| Electrical Specifications |
| Input voltage | DC18-58V |
| Total Power consumption | Full load<20W POE full load<260W |
| PoE Support Optional selection |
| PoE port | 1-8 |
| PoE Protocol | 802.3af ，802.3at |
| Pin Assignment | 1,2,3,6 |
| PoE Management | Support |
| Layer 2 Switching |
| Switching capacity | 160G |
| Packet forwarding rate | 95.23 Mpps |
| MAC address table | 16K |
| VLAN | Support 4K |
| Buffer | 12M |
| Forwarding delay | <10us |
| MDX/MIDX | Support |
| Flow control | Support |
| Jumbo Frame | Support 10Kbytes |
| Spanning Tree | Support STP/RSTP/MSTP |
| Ring Protocol | Support ERPS |
| Link Aggregation | Support 12组 |
| Multicast | Support IGMP Snooping |
| Port Mirroring | Support |
| Storm Control | Support |
| Interface Counters | Support |
| QINQ | Support |
| 802.1X | Support |
| Radius/Mac authentication | Support |
| Port Isolation | Support |
| Rmon | Support |
| NTP client | Support |
| DHCP client | Support |
| DHCP snooping | Support |
| Ping/racert detection | Support |
| Dyinggasp | Support |
| DDM | Support |
| Port security | Support |
| IP Source Guard | Support |
| Device scanning | Support |
| layer 3 function |
| Static routing | Support 1K static routes |
| ARP | ARP table entry aging |
| DHCP server | Support |
| Convergence |
| ACL | Support 500 ACL entries; Support IP standard ACL; Support MAC extension ACL; Support IP extension ACL; |
| QOS | Support QoS re labeling and priority mapping; Support SP and WRR queue scheduling; Support entrance and exit speed limits; Support flow based QoS |
| Management |
| CLI | Support |
| Manage Serial Console | Support |
| Telnet/SSH | Support |
| Web management | Support |
| Manage IP | Support IPV4/IPV6 |
| SNMP | Support SNMPv1/v2c/v3 |
| User Management | Support |
| System Log | Support |
| Configuration File Download/Upload | Support |
| Upgrade Firmware | Support |
| Mechanical Dimensions |
| Product size | 161*115*53mm |
| Installation Method | Rail mounted installation |
| Weight | About 0.9KG |
| Environment |

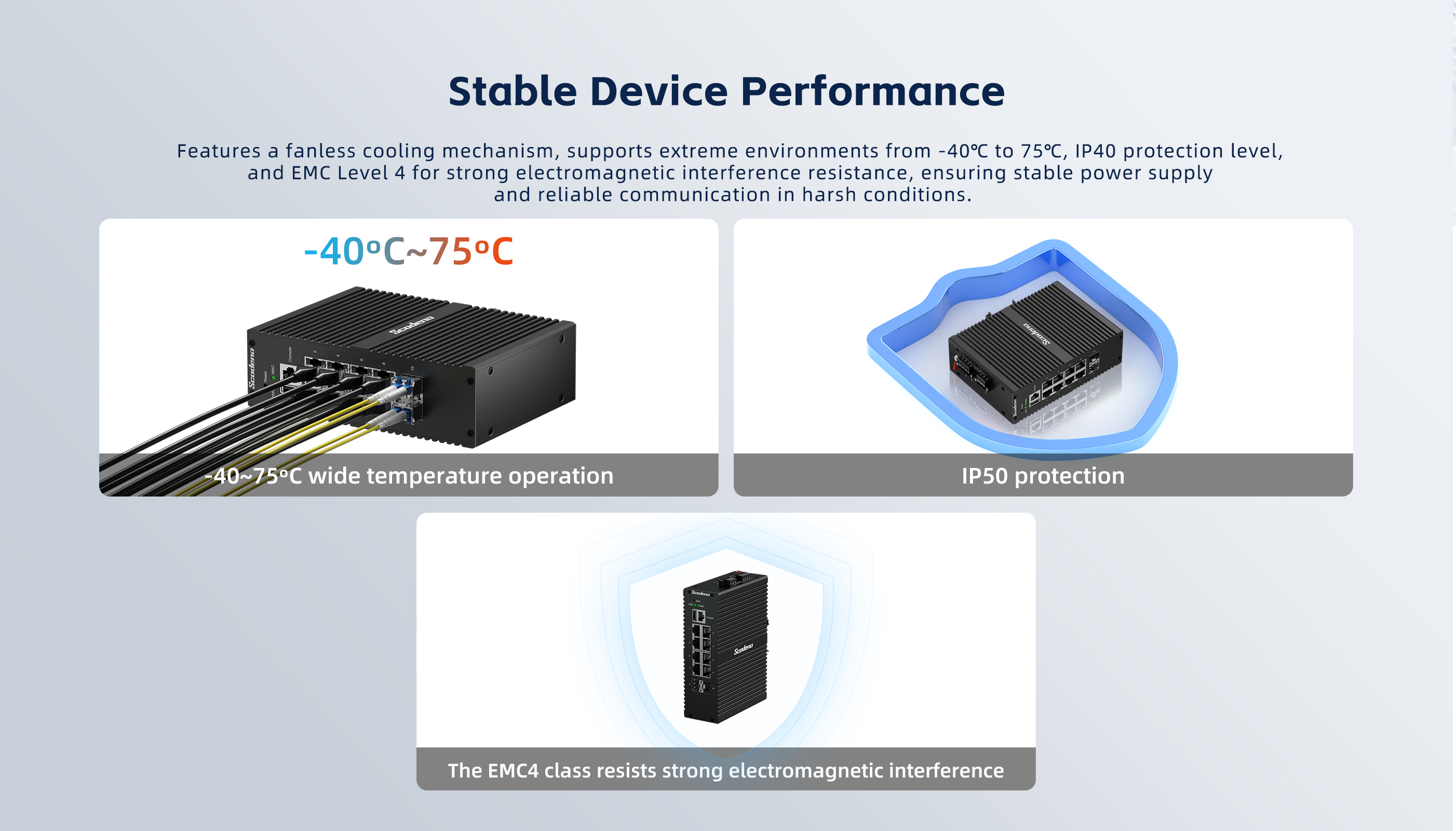

| Operating temperature | -40℃ ~ +75℃ |
| Storage temperature | -40℃ ~ +85℃ |
| Relative humidity | 5%~95% non-condensing |
| Thermal methods | Fanless design, natural heat dissipation |
| MTBF | 100,000 Hours |
| EMC&INGRESS PROTECTION |
| IP Level | IP40 |
| Surge protection of Power | IEC 61000-4-5 Level 4（4KV/2KV）（ 8/20us） |
| Surge protection of Ethernet port | IEC 61000-4-5 Level 4（4KV/2KV）（ 10/700us） |
| RS | IEC 61000-4-3 Level 3 （ 10V/m） |
| EFI | IEC 61000-4-4 Level 3 （ 1V/2V） |
| CS | IEC 61000-4-6 Level 3 （ 10V/m） |
| PFMF | IEC 61000-4-8 Level4（ 30A/m） |
| DIP | IEC 61000-4-11 Level3 （ 10V） |
| ESD | IEC 61000-4-2 Level 4 （ 8K/15K） |
| Free fall | 0.5m |
| Authentication |
| Authentication | Inspection reports and network access permits from the Ministry of Public Security and the Ministry of Industry and Information Technology, CE/FCC/RoHS |
| Accessories |
| Accessories | Equipment, terminals, certificate of conformity, instruction manual, power adapter (optional) |
| Optional model |
| XPTN-9000-77-2XG8GT-VA | 2 10G optical ports, 8 10/100/1000M electrical ports |
| XPTN-9000-77-2XG8GP-VA | 2 10G optical ports, 8 10/100/1000M electrical ports, supporting PoE&PoE+ |
