XPTN-9000-65-2GX8GT-XA Unmanaged Industrial Switch

Input voltage: DC 18-58V

Working temperature: -40 ℃~+85 ℃

Shell: IP40 protection level, fanless design

Dialing: 4-digit special dialing function

Inspection report: CE/FCC/RoHS

Anti static: 8KV-15KV

M T B F: 100000 hours

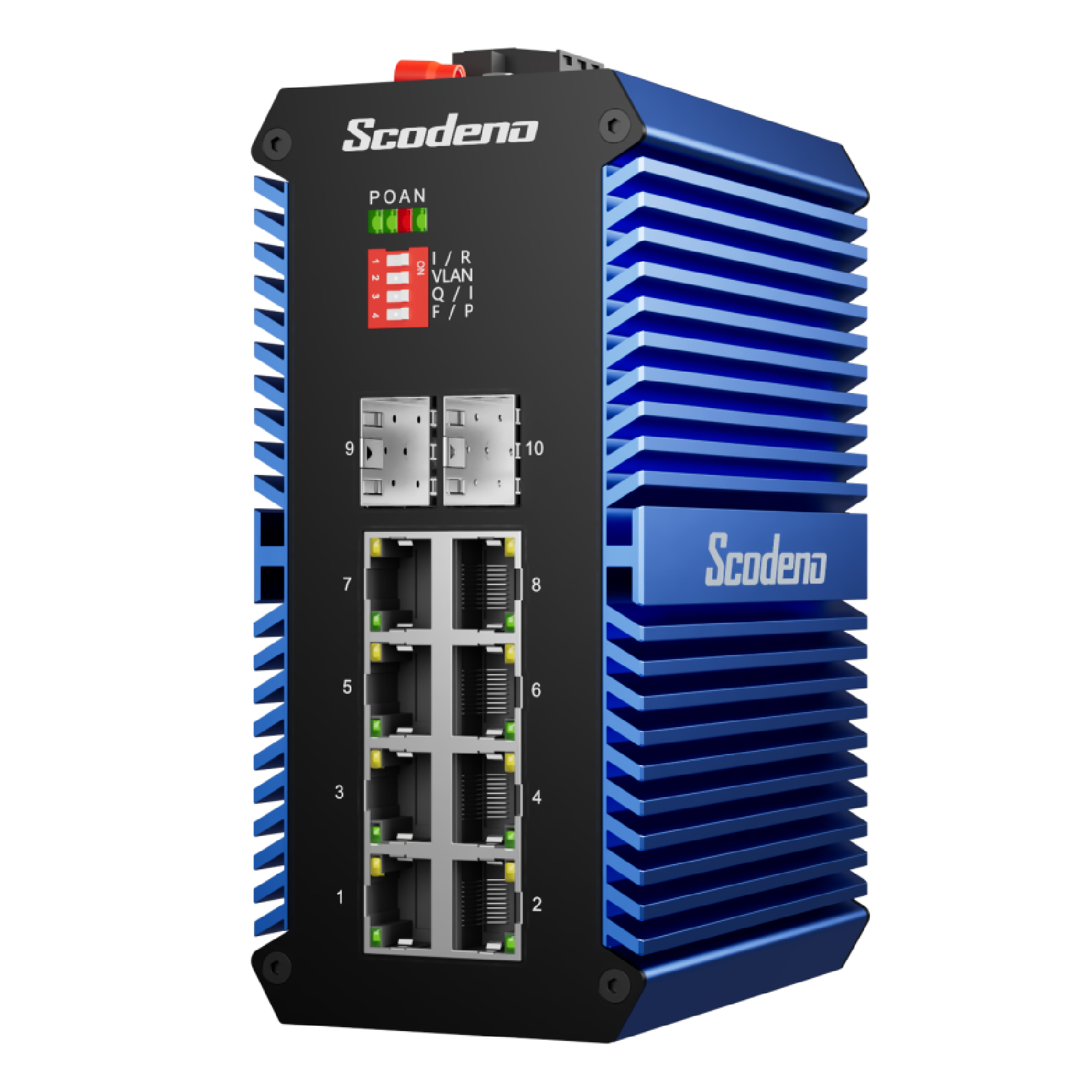

This device is a 2 gigabit optical&8 10/100/1000 Base-T unmanaged industrial Ethernet

fast switch, supporting POE. Through fanless cooling circuit design, wide range working

environment temperature, high protection level and other technologies, it provides excellent

industrial grade quality such as high/low temperature resistance and lightning protection,

and enhances the reliability and security of industrial networks. It can better meet the

deployment requirements of rail transit, safe cities, intelligent transportation, outdoor

monitoring, and other harsh environments.


Overview
Parameter
Application
Files

1


Provider Mode Ports
Fixed port    2*1000 Base-X,   8*10/100/1000 Base-T
Power interface    Phoenix terminal, dual power redundancy
LED Indicators    PWR ,OPT ,NMC,ALM
Reset    Dial code reset
1 C/D      Remote PD restart
2 LGY        Standard/Non-standard PoE selection
3 VLAN         Port isolate
4 RST    Reset
Cable type&Transmission distance
Twisted-pair0-100m( CAT5e,CAT6)
Monomode optical fiber20/40/60/80/100KM
Multimode optical fibre550m
Network Topology
Ring topologyNot Supported
Star topologySupport
Bus topologySupport
Tree TopologySupport
Electrical Specifications
Input voltage

Non PoE: DC18-58V     PoE :DC48-58V

Total Power consumption

Non PoE full load<6W     PoE full load<246W

Voltage AlarmSupport
PoE Support Optional
PoE port1-8
PoE Protocol802.3af ,802.3at
Pin Assignment1,2,3,6
PoE ModeBoth standard and non-standard are supported
Remote PD ResetSupport
Layer 2 Switching
Switching capacity26G
Packet forwarding rate19.34Mpps
MAC address table16K
Buffer2M
Forwarding delay<5us
MDI/MDIXSupport
Jumbo FrameSupport 10Kbytes
Watch DogSupport

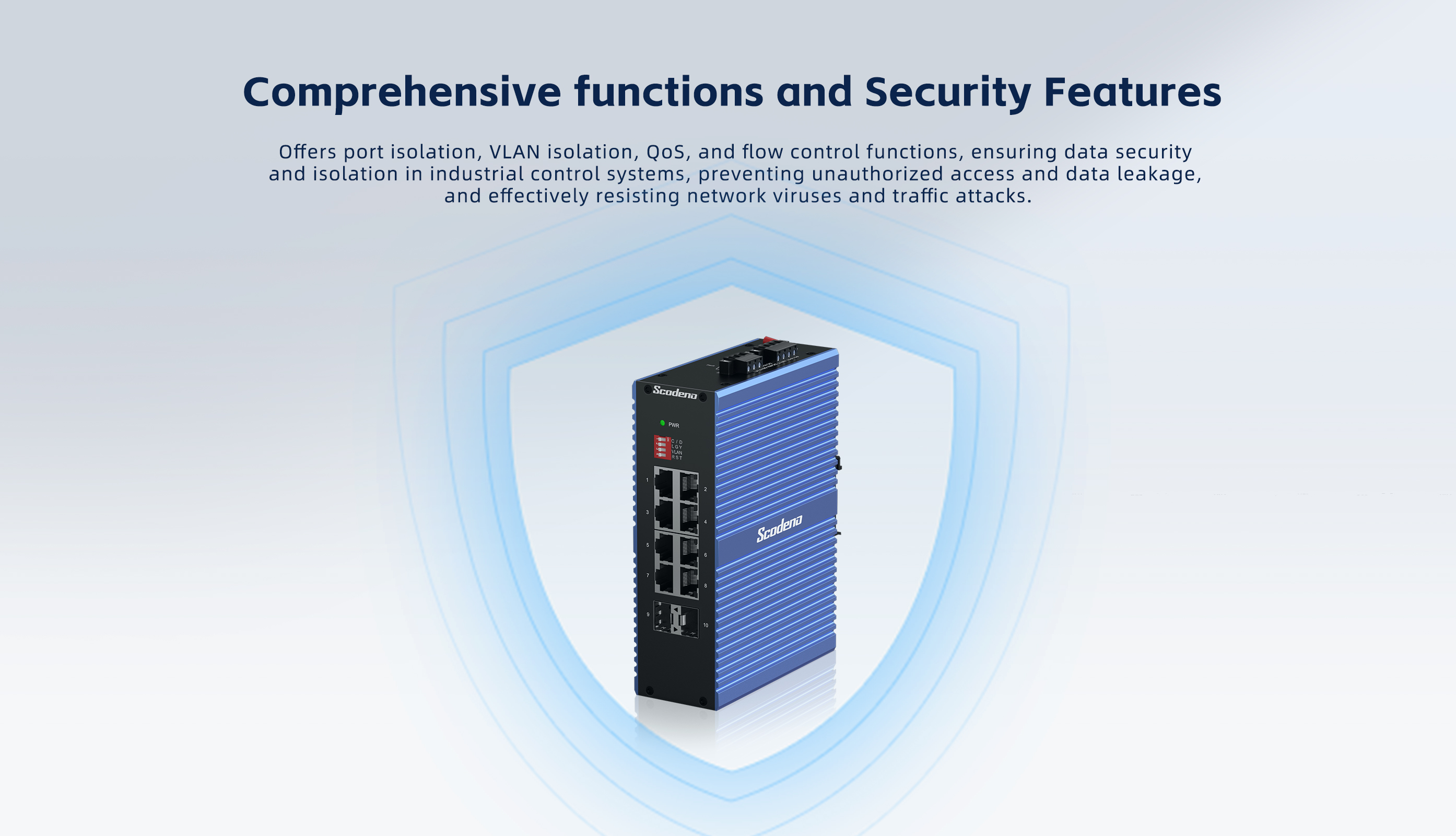

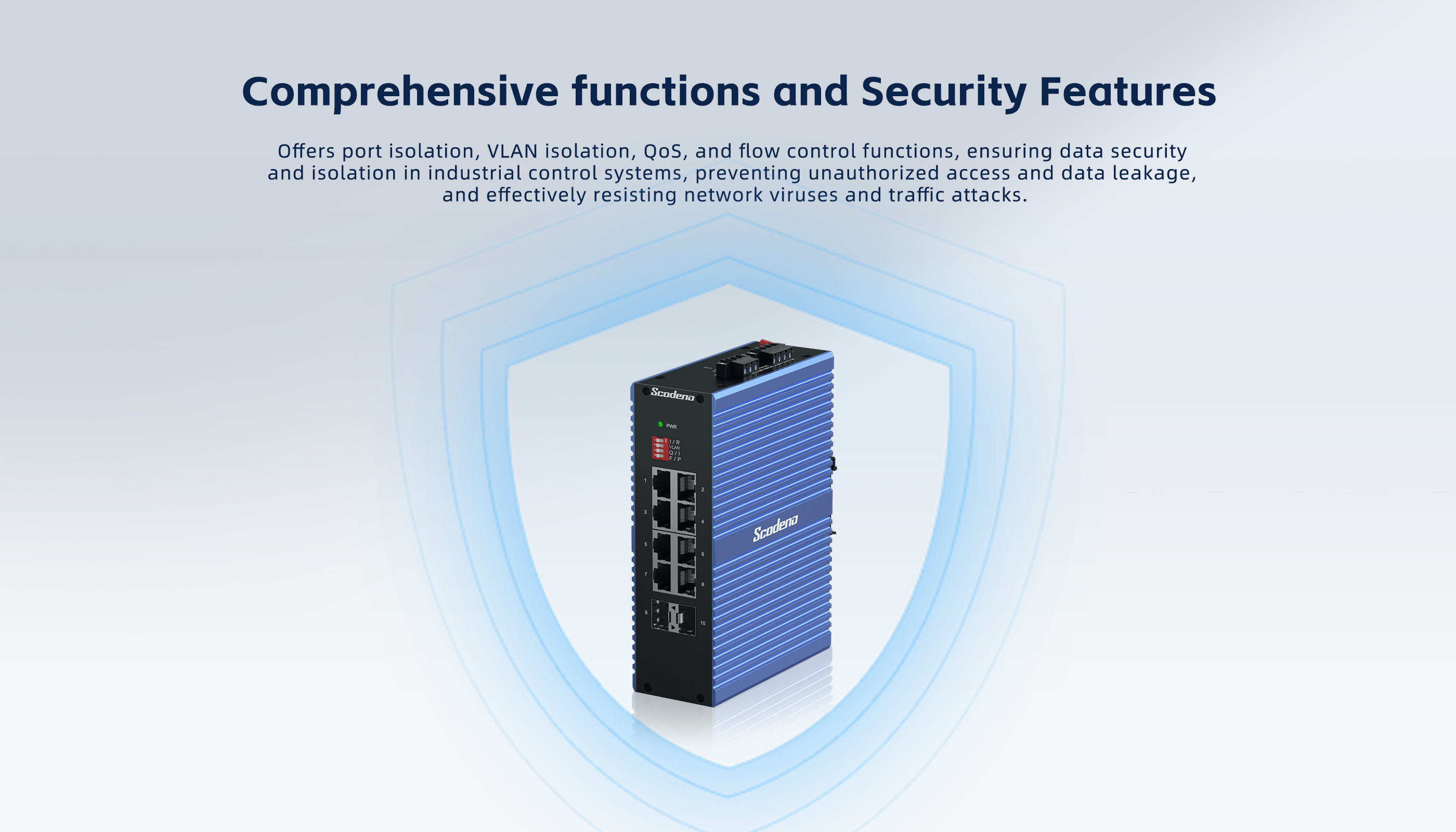

Port isolationSupport
Mechanical Dimensions
Product size161*115*53mm

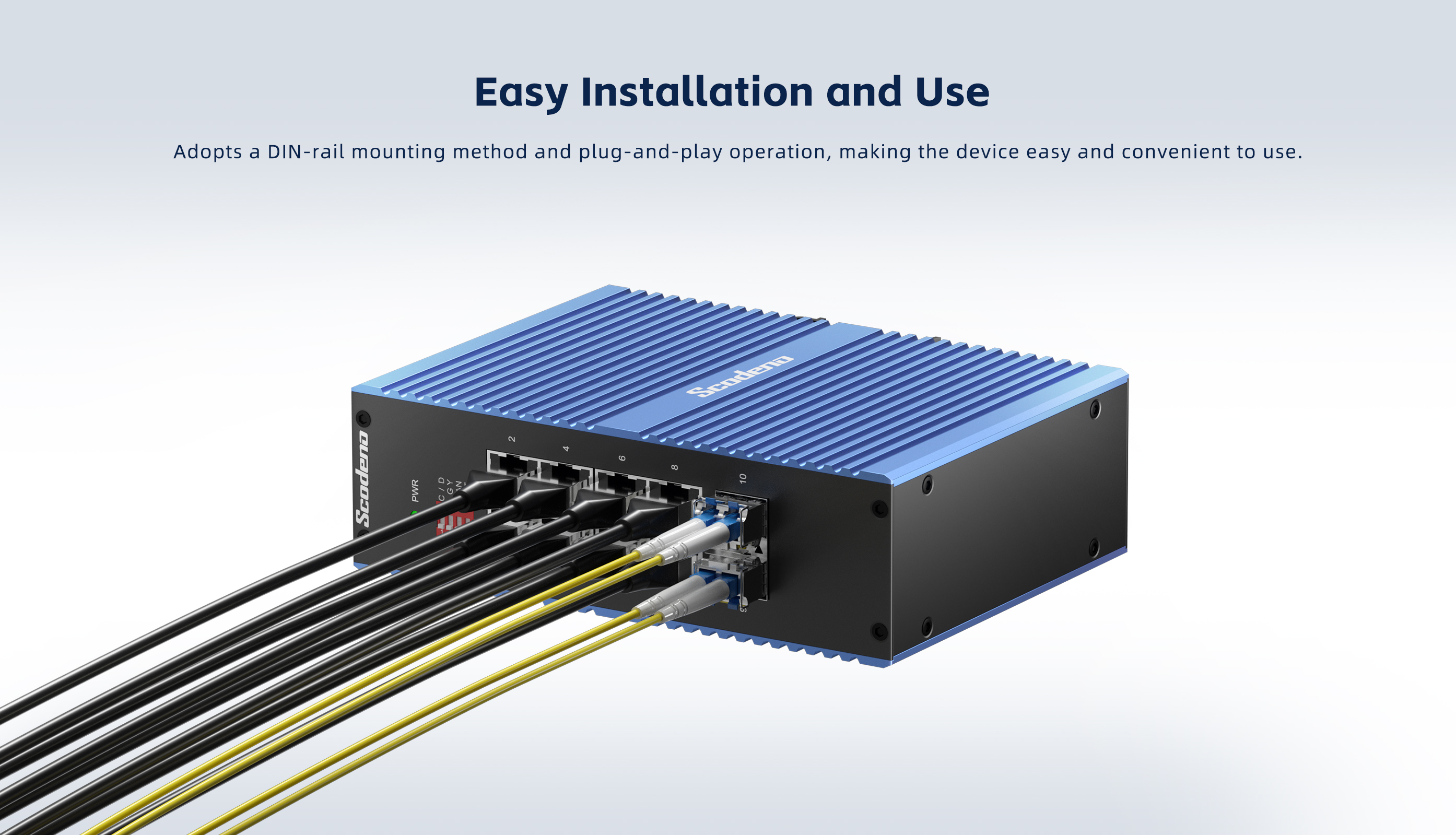

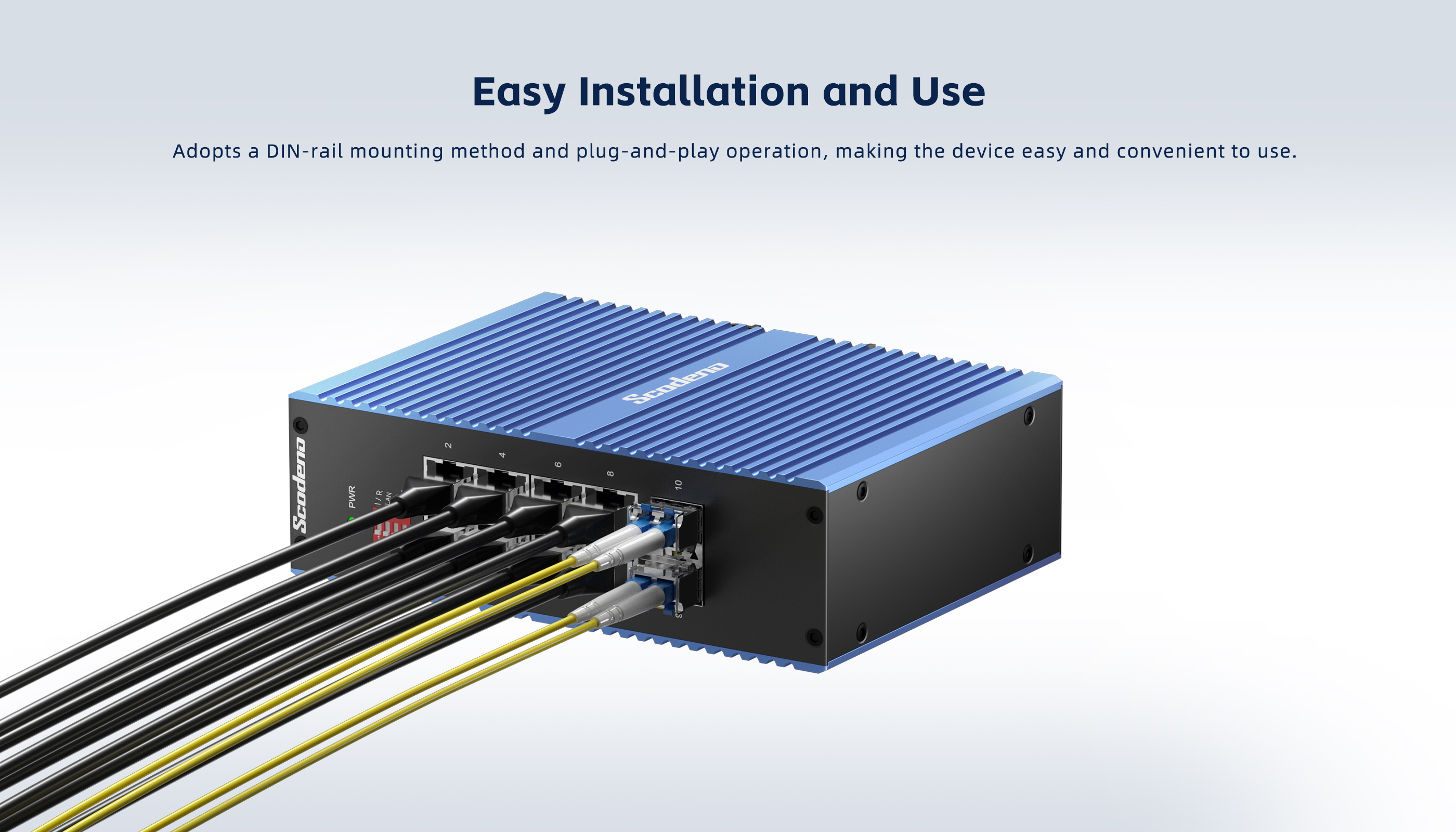

Installation MethodCard rail installation
Weight0.85KG
Environment

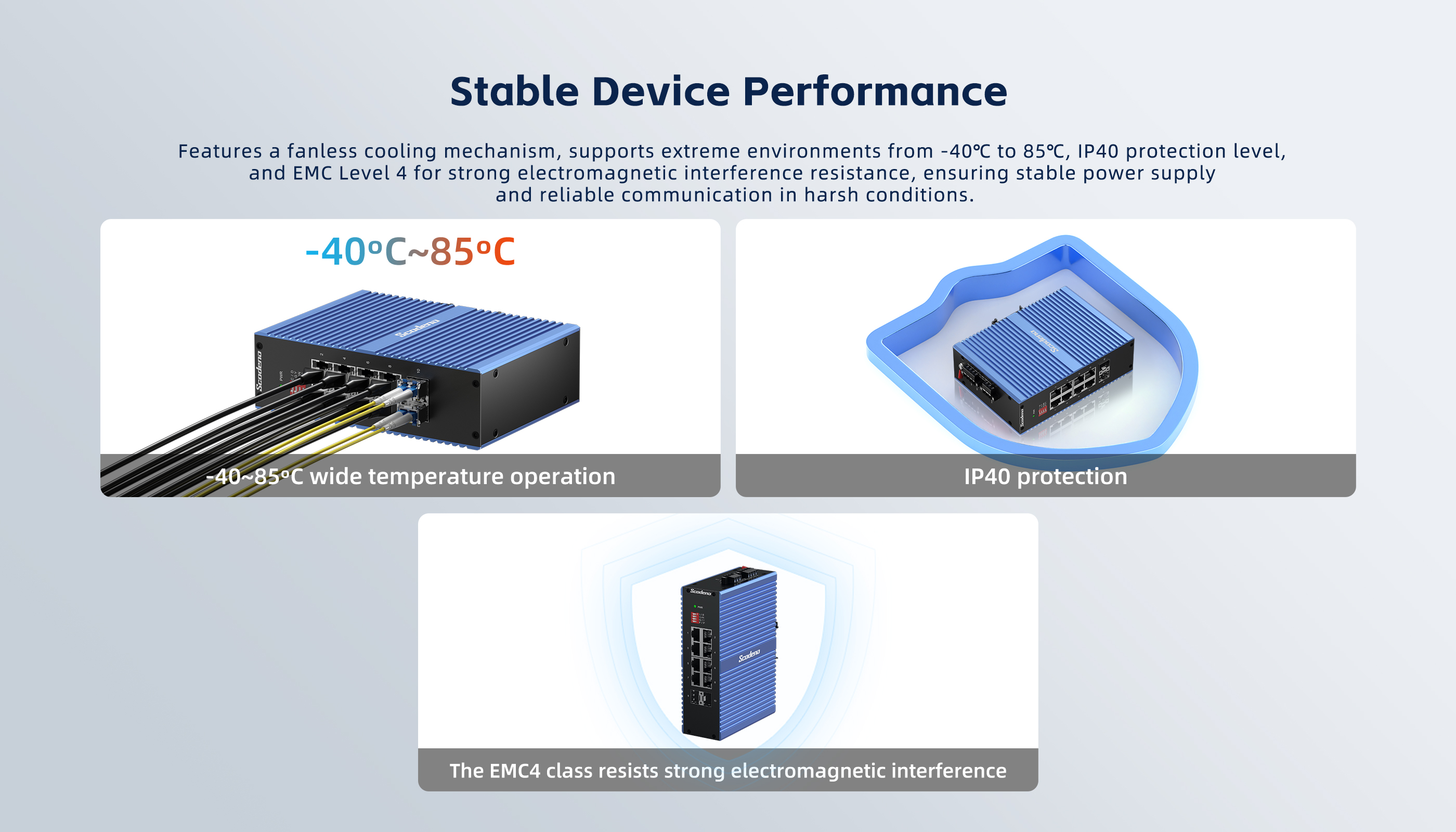

Operating temperature-40℃ ~ +85℃
Storage temperature-40℃ ~ +85℃
Relative humidity5%~95%  Non-condensing
Thermal methodsFanless design, natural heat dissipation
MTBF100,000 hour
EMC&INGRESS PROTECTION
IP LevelIP40
Surge protection of PowerIEC 61000-4-5  Level 4 (4KV/2KV)( 8/20us)
Surge protection of Ethernet portIEC 61000-4-5  Level 4 (4KV/2KV)( 10/700us)
RSIEC 61000-4-3  Level 3( 10V/m)
EFIIEC 61000-4-4  Level 3( 1V/2V)
CSIEC 61000-4-6  Level 3( 10V/m)
PFMFIEC 61000-4-8  Level 4( 30A/m)
DIPIEC 61000-4-11  Level 3( 10V)
ESDIEC 61000-4-2  Level 4( 8K/15K)
Free fall0.5m
Authentication
AuthenticationInspection reports and network access permits from the Ministry of Public Security and the Ministry of Industry and Information Technology, CE/FCC/RoHS
AccessoriesEquipment, terminals, certificate of conformity, instruction manual, power adapter (optional)
可选型号(Optional model)
XPTN-9000-65-2GX8GT-XA
2 1000M optical ports (optional SC, FC, ST, SFP)

8 10/100/1000M adaptive electrical ports (POE optional)
XPTN-9000-65-2GX8GP-XA
2 1000M optical ports (optional SC, FC, ST, SFP)

8 10/100/1000M adaptive POE electrical ports
