XPTN-9000-65-1FX4TX

XPTN-9000-65-5TX

XPTN-9000-65-2GX4TX

Input voltage: DC 12-58V

Working temperature: -40 ℃~+85 ℃

Shell: IP40 protection level, fanless design

Dialing: 4-digit special dialing function

Inspection report: CE/FCC/RoHS

Anti static: 8KV-15KV

M T B F: 100000 hours

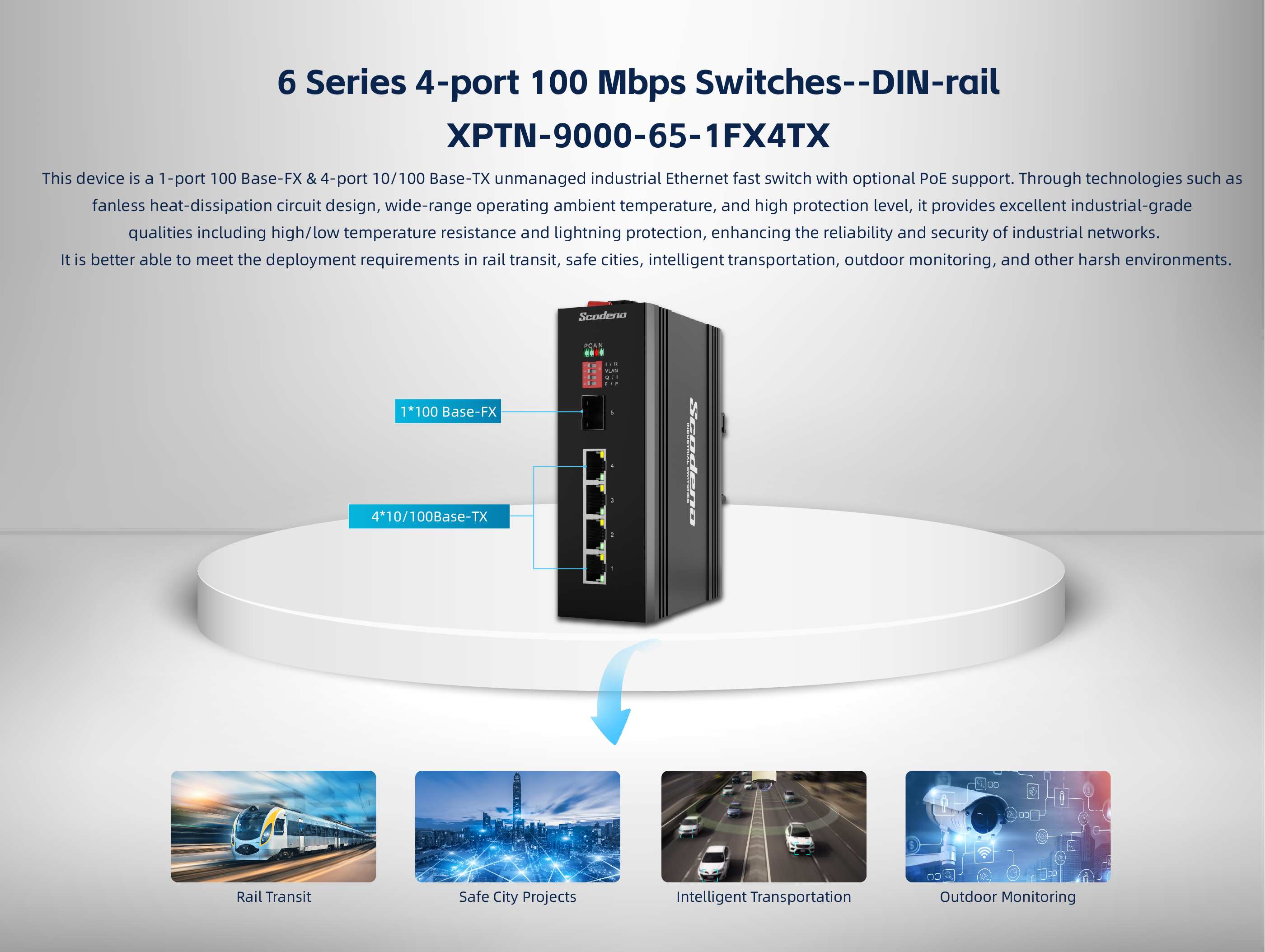

This device is a 100Mbps optical and 4 10/100 Base TX unmanaged industrial Ethernet

fast switches, supporting optional POE. Through fanless cooling circuit design, wide

range working environment temperature, high protection level and other technologies,

it provides excellent industrial grade quality such as high/low temperature resistance and

lightning protection, enhancing the reliability and security of industrial networks. It can

better meet the deployment requirements of rail transit,safe cities, intelligent transportation,

outdoor monitoring, and other harsh environments.

Consult Now Share

Overview

Parameter

Application

Files

Provider Mode Ports
Fixed port						1100 Base-FX ， 410/100 Base－TX
Power interface						Phoenix terminal, dual power redundancy
LED Indicators						PWR ，OPT ,NMC ，ALM
Dialing instructions
1 I/R						Port isolation
2 VLAN						VLAN isolation
3 Q/I						QoS
4 F/P						Flow control
Dialing instructions
1 I/R						Unconscious restart
2 VLAN						VLAN isolation
3 Q/I						Port isolation
4 F/P						VIP power supply and QoS
Cable type&Transmission distance
Twisted-pair						0-100m（ CAT5e,CAT6）
Monomode optical fiber						20/40/60/80/100KM
Multimode optical fibre						550m
Network Topology
Ring topology						Not Supported
Star topology						Support
Bus topology						Support
Tree Topology						Support
Electrical Specifications
Input voltage						Non PoE: DC 12-58V PoE: DC48-58V
Total Power consumption						Non PoE full load<6W PoE full load<126W
PoE Support Optional selection
PoE port						1-4
PoE Protocol						802.3af ，802.3at
Pin Assignment						1,2,3,6
Layer 2 Switching
Switching capacity						1.4G
Packet forwarding rate						0.744 Mpps
MAC address table						1K
Buffer						512K
Forwarding delay						<5us
MDI/MDIX						Support
Flow control						Support
Jumbo Frame						Support 2048bytes
WatchDog						Support
Port isolation						Support
Mechanical Dimensions
Product size						143X104X48mm
Installation Method						Card rail installation
Weight						About 0.45KG
Environment
Operating temperature						-40℃ ~ +85℃
Storage temperature						-40℃ ~ +85℃
Relative humidity						5%~95% non-condensing
Thermal methods						Fanless design, natural heat dissipation
MTBF						100000 hours
EMC&INGRESS PROTECTION
IP Level						IP40
Surge protection of Power						IEC 61000-4-5 Level X (6KV/4KV）（ 8/20us)
Surge protection of Ethernet port						IEC 61000-4-5 Level 4(4KV/4KV）（ 10/700us)
RS						IEC 61000-4-3 Level 3（ 10V/m）
EFI						IEC 61000-4-4 Level 3（ 1V/2V）
CS						IEC 61000-4-6 Level 3（ 10V/m）
PFMF						IEC 61000-4-8 Level 4（ 30A/m）
DIP						IEC 61000-4-11 Level 3 （ 10V）
ESD						IEC 61000-4-2 Level 4（ 8K/15K）
Free fall						0.5m
Authentication
Authentication						Inspection reports and network access permits from the Ministry of Public Security and the Ministry of Industry and Information Technology, CE/FCC/RoHS
Accessories
Accessories						Equipment, terminals, certificate of conformity, instruction manual, power adapter (optional)
Optional model
XPTN-9000-65-1FX4TX						1 100M optical port (optional SC, FC, ST, SFP),
						4 10/100M adaptive electrical ports (POE optional)

XPTN-9000-65-1FX4TX
