XPTN-9000-65-2GX4GT

l2*1000M SFP ports,4*10/100/1000M RJ45 ports,1M port buffer.

lOperating temperature : -40℃~+85℃.

lDC redundant power supply.

lFanless design, silent and energy-efficient.

lIP40 protection rating, wide temperature range, and high protection for harsh environments.

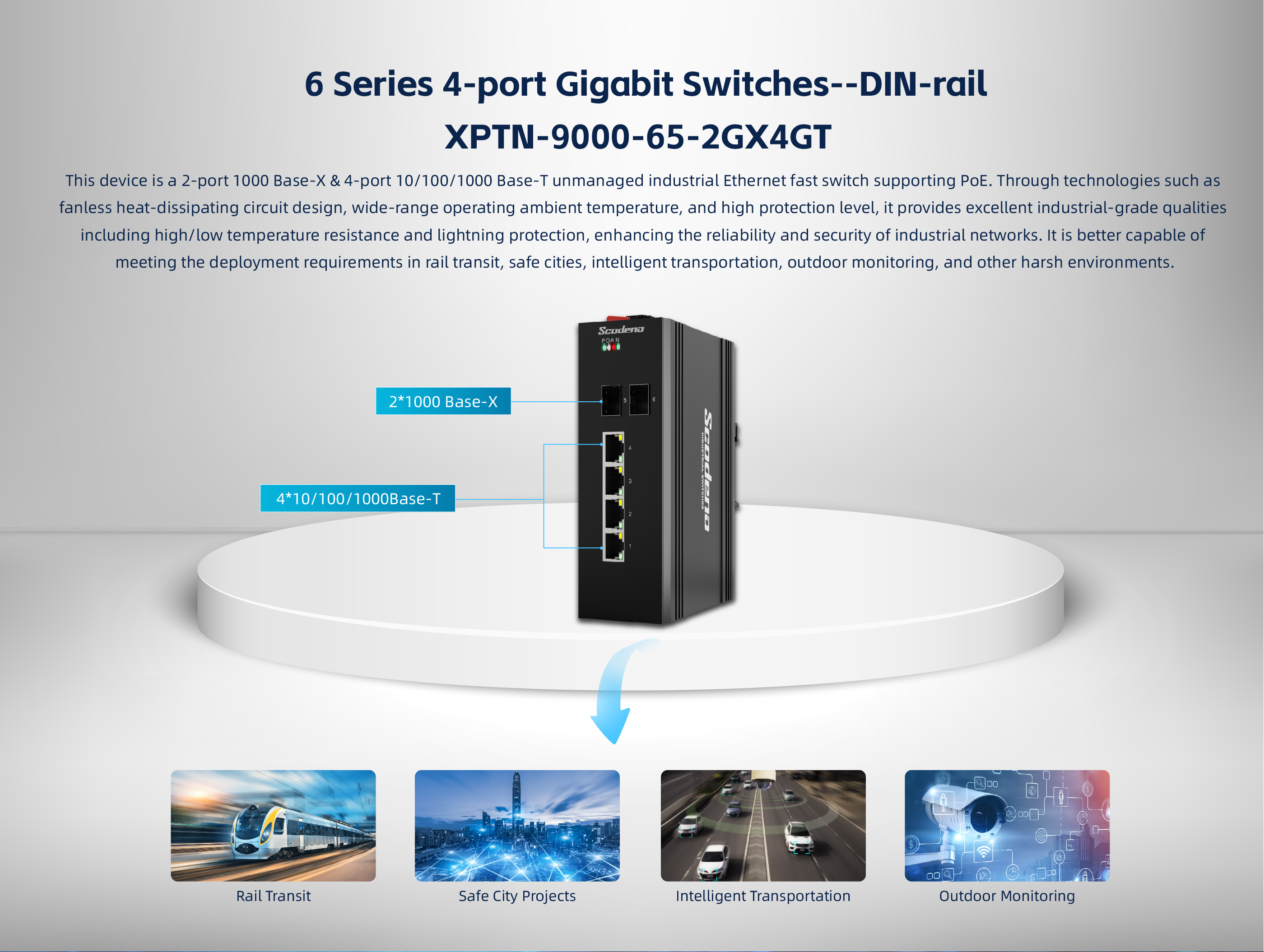

This device is a 2 Gigabit Ethernet&4 10/100/1000 Base TX unmanaged industrial Ethernet fast switch,

supporting PoE. Through fanless cooling circuit design, wide range working environment temperature,

 high protection level and other technologies, it provides excellent industrial grade quality such as high/low temperature resistance

and lightning protection; Enhanced the reliability and security of industrial networks. It can better meet the deployment requirements of rail transit,

safe cities, intelligent transportation, outdoor monitoring, and other harsh environments.



Overview
Parameter
Application
Files


Hardware Specifications

Model

XPTN-9000-65-2GX4GT

XPTN-9000-65-2GX4GP

Interface

2*1000M SFP port + 4*10/100/1000M RJ45 ports

Switching

14Gbps

Packets Forwarding Rate

10.41Mpps

MAC

8K

Port Buffer

1M

Forwarding Delay

<5us


Power Supply

Phenix terminal, DC redundant input

Input Voltage: DC12-58V

Input Voltage: DC48-58V

Empty Load Power: <6W

LED Indicators

PWR, Link/ACT


PoE


                              \

1-4 ports support PoE

PoE budget: 126W

IEEE802.3 af/at standard

PIN Sequence: 1,2+/3,6-



Environment

Working Temperature: –40 ℃ ~ 85

Storage Temperature: –40 ℃ ~ 85

Working Humidity: 5%~95% non-condensing

Storage Humidity: 5%~95% non-condensing

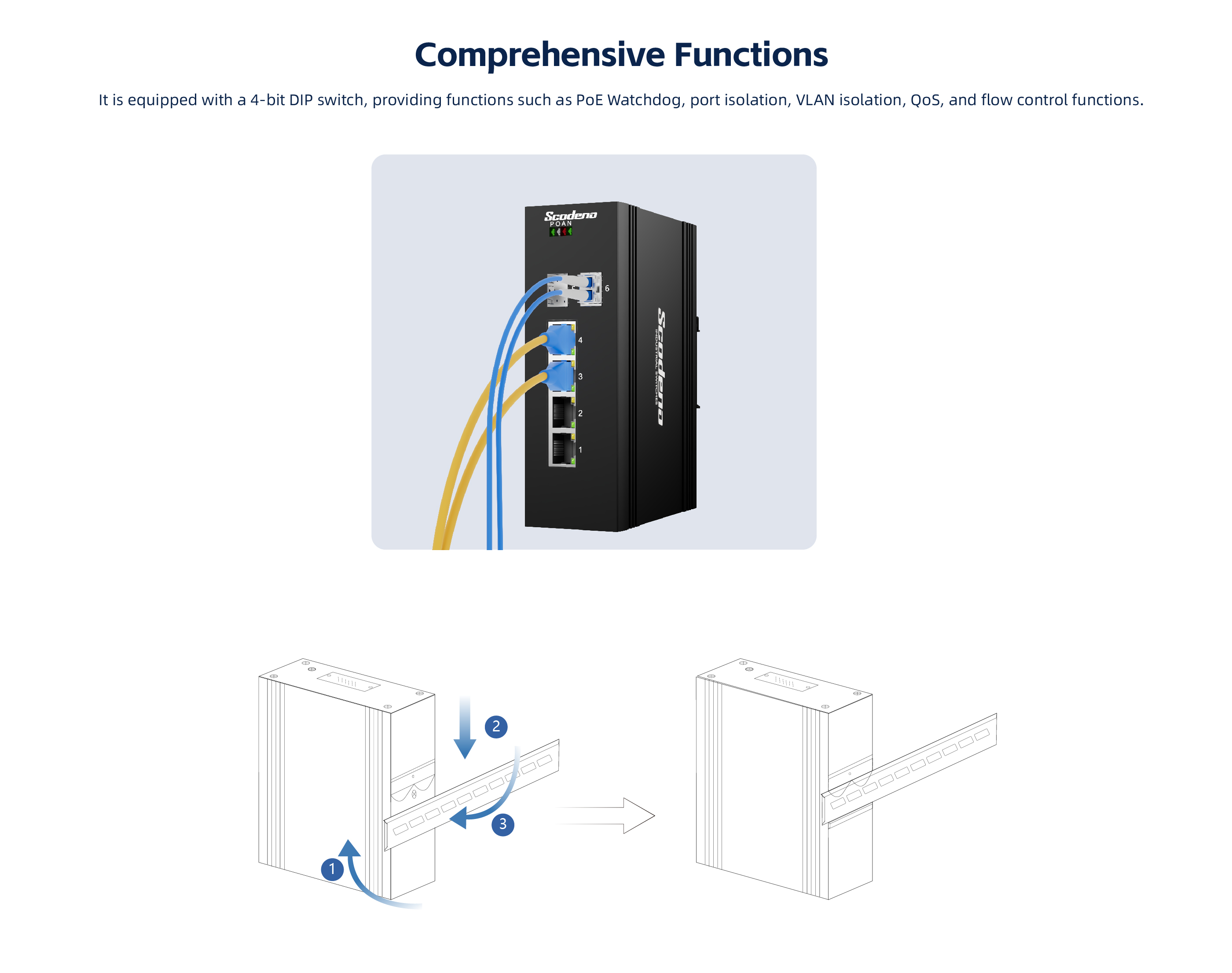

DIP Specification

Port Isolation

VLAN

QoS

Flow Control

PoE Watchdog

250m Extend

Port Isolation

VIP power supply & QoS

SIZE(W*D*H)

143*104*48mm

Weight

0.6KG

0.62KG

Installation Method

Din Rail

Certificate Compliance

CE/FCC/RoHS

MTBF

100,000 hours
