XPTN-9000-87-4GX8GC16GT-HR-V

• 4 × Gigabit SFP uplinks, 16 × Gigabit RJ45 ports and 8 × Gigabit Combo ports.

• GP-R-V variant: PoE on ports 1–24, a 396W total PoE budget and DC 48–58V input. The HR-V variant is non-PoE.

• Fanless design, IP40 protection and an operating temperature range of -40°C to +85°C.

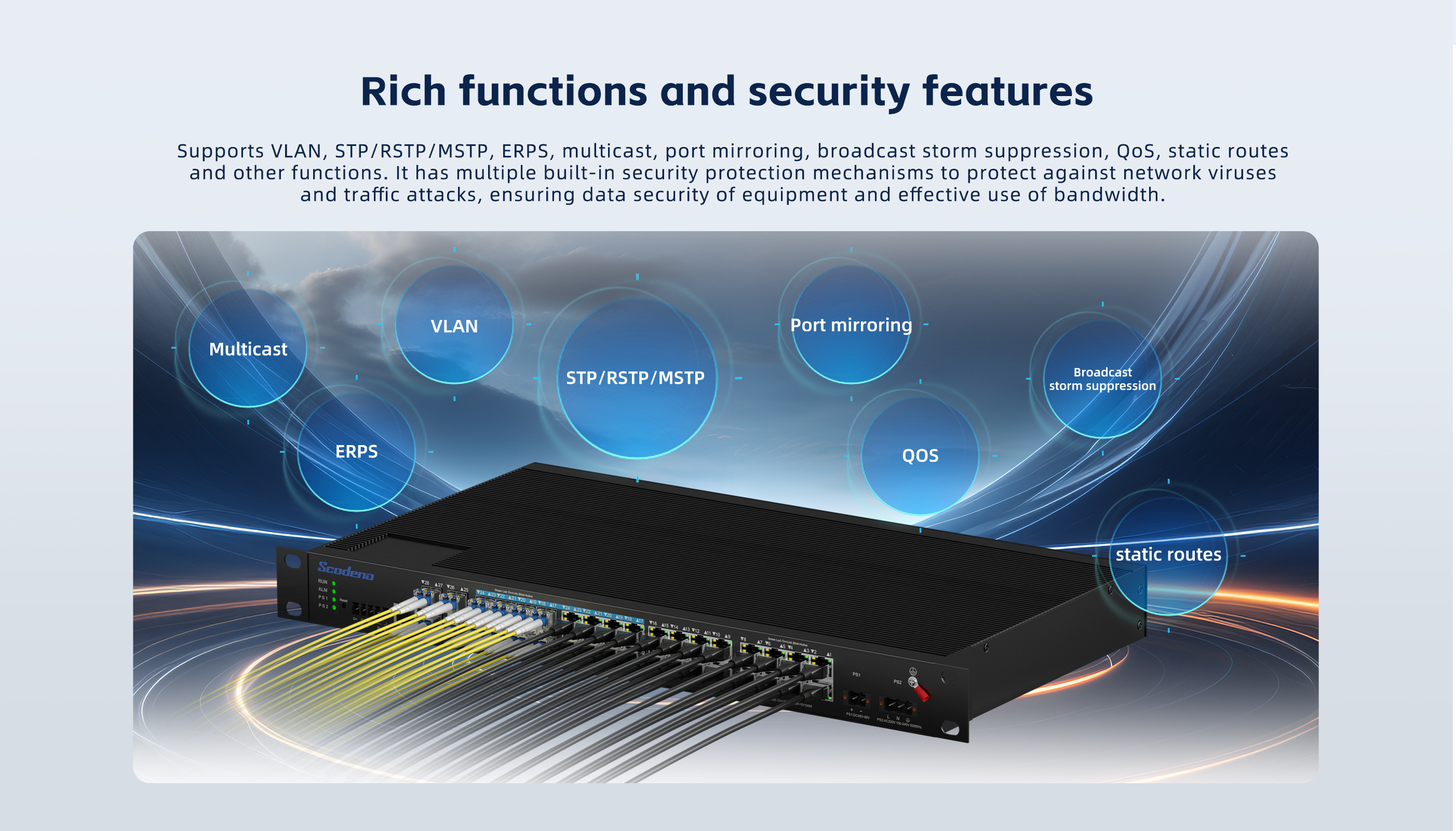

• VLANs, QoS and static IPv4/IPv6 routing for traffic management; ITU-T G.8032 ERPS for ring redundancy.

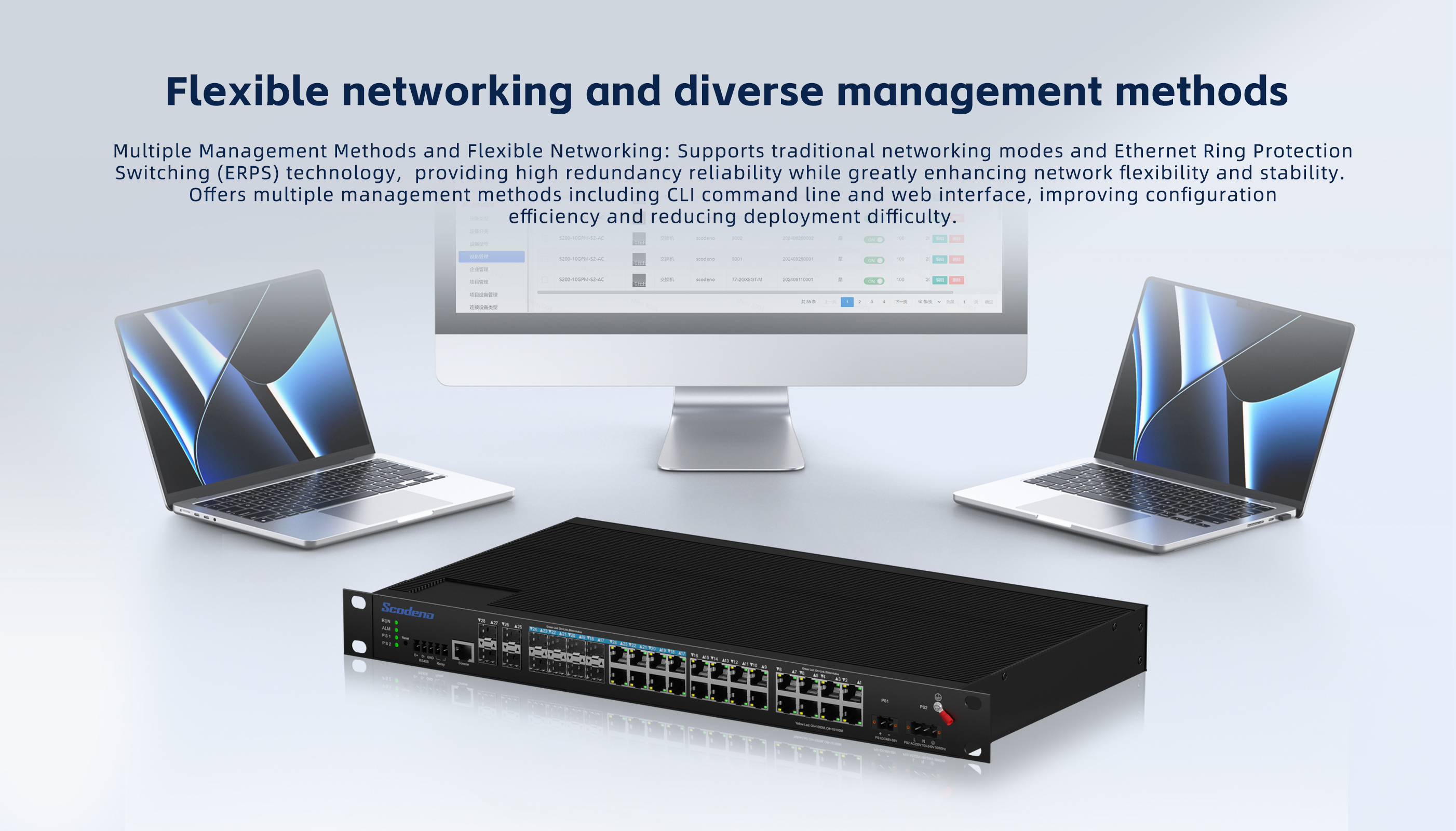

• Management through SNMP, Web, Console, CLI or Telnet/SSH, with system logs and firmware upgrade support.

This rack-mount L2+ managed industrial Ethernet switch family combines Gigabit fiber, RJ45 and Combo connectivity for industrial networks. Choose the non-PoE HR-V variant or the GP-R-V variant with IEEE 802.3af/at PoE.

Overview
Parameter
Application
Files

XPTN-9000-87-4GX8GC16GT-HR-V

This rack-mount L2+ managed industrial Ethernet switch family combines Gigabit fiber, RJ45 and Combo connectivity for industrial networks. Choose the non-PoE HR-V variant or the GP-R-V variant with IEEE 802.3af/at PoE.

XPTN-9000-87-4GX8GC16GT-HR-V industrial Ethernet switch

014 × Gigabit SFP uplinks, 16 × Gigabit RJ45 ports and 8 × Gigabit Combo ports.
02GP-R-V variant: PoE on ports 1–24, a 396W total PoE budget and DC 48–58V input. The HR-V variant is non-PoE.
03Fanless design, IP40 protection and an operating temperature range of -40°C to +85°C.
04VLANs, QoS and static IPv4/IPv6 routing for traffic management; ITU-T G.8032 ERPS for ring redundancy.
05Management through SNMP, Web, Console, CLI or Telnet/SSH, with system logs and firmware upgrade support.

Hardware Specifications


Model

XPTN-9000-87-4GX8GC16GT-HR-V

XPTN-9000-87-4GX8GC16GP-R-V

Interface

4*1000M SFP ports + 16*10/100/1000M RJ45 ports+8*1000M  Combo ports

Switching

160Gbps

Packets Forwarding Rate

95.23Mpps

MAC

16K

Port Buffer

12M

Forwarding Delay

<10us


Power Supply

Terminal block, AC+DC power supply

Input Voltage:DC12-58V/AC 100-240V 50-60HZ

Input Voltage: DC48-58V

Empty Load Power: <36W

LED Indicators

PWR,Link/ACTLED

PoE

—

1-24 ports support PoE

PoE budget: 396W

IEEE802.3 af/at standard

PIN Sequence: 1,2+/3,6-



Environment

Working Temperature: –40℃ ~ 85℃

Storage Temperature: –40℃ ~ 85℃

Working Humidity: 5%~95% non-condensing

Storage Humidity: 5%~95% non-condensing

SIZE(W*D*H)

440*245*44mm

Weight

3.6KG

3.62KG

Installation Method

Rack mounted

Certificate Compliance

CE/FCC/RoHS

MTBF

100,000 hours

Software Specifications

Model

XPTN-9000-87-4GX8GC16GT-HR-V

XPTN-9000-87-4GX8GC16GP-R-V


VLAN

Support 4K IEEE 802.1Q VLAN

Support protocol VLAN

Support GARP


LACP

Support IEEE 802.3ad

Support static LACP

Support dynamic LACP

STP

Support IEEE 802.1d STP

Support IEEE 802.1w RSTP

Support IEEE 802.1s MSTP

ERPS

Support ITUT G.8032 protocol

Port

Support Jumbo Frame

Support IEEE802.3X Flow Control

Support port statistics

Support Auto-MDI/MDIX

Multicast

Support IGMP Snooping


ACL

Support MAC Standard/Extended ACL

Support IPv4 Standard/Extended ACL

Support IPv6 Standard/Extended ACL

QoS

Support QoS Re-marking

Support Port Trust

Support Port Rate Limiting

Support Egress Queue Rate Limiting

DHCP

Support DHCP Snooping

Support DHCP Client

Support DHCP Server

L3 Route

IPv4 Management Address

IPV6 Management Address

Static IPv4 Route

Static IPv6 Route

ARP

Loopback Interface

Security

Support IEEE802.1X

Support MAC-Based IEEE802.1X

Support WEB-Based IEEE802.1X

IP Source Guard

Port Security

Port Isolation


Diagnosis


Support Console Logs

Support RAM logs

Support Flash logs

Support Port Mirroring(1:1)

Support Ping

Support Traceroute

Support Cable Test

Support Optical Module Information

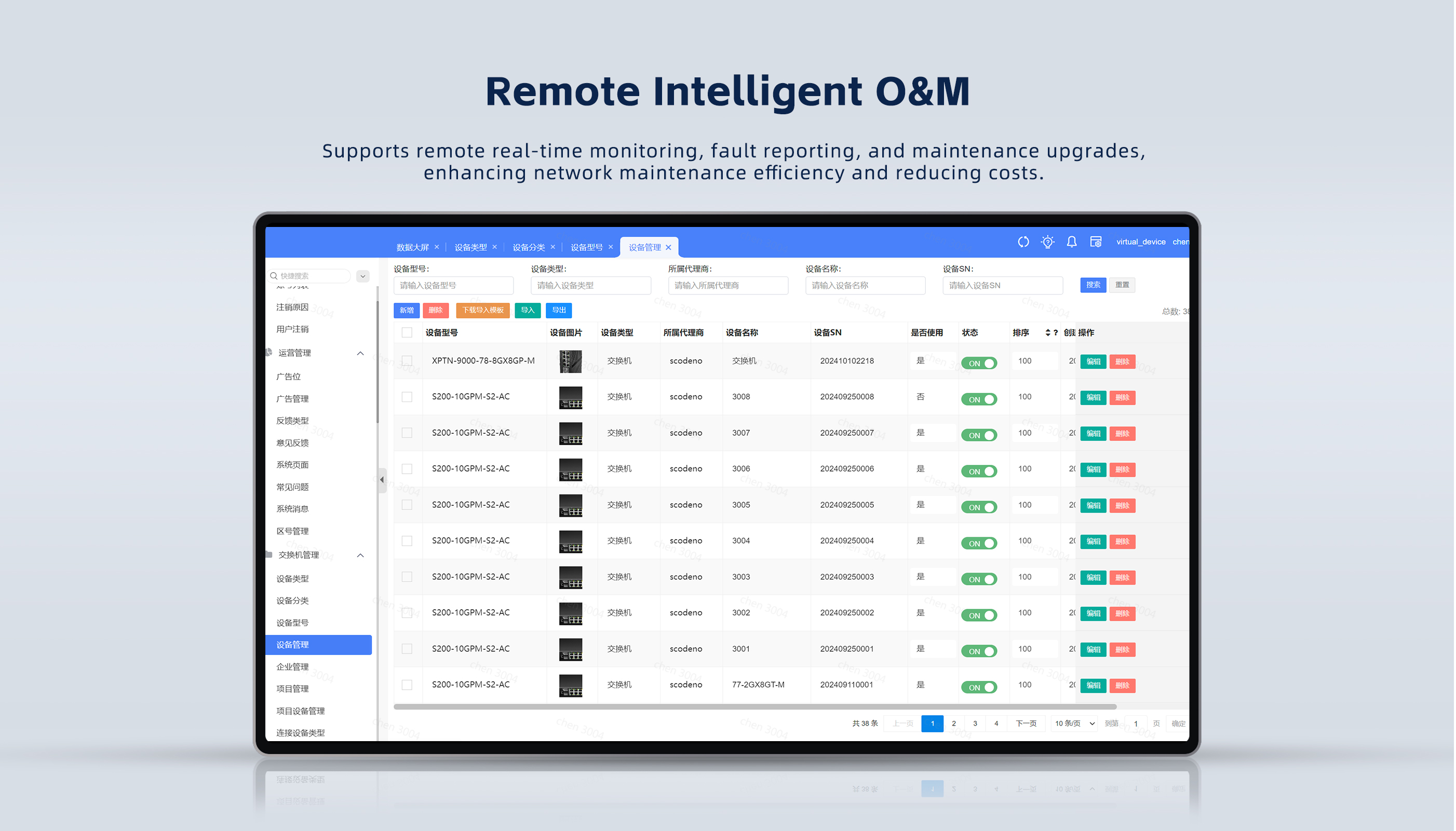

Management

Support User Management

Support System Log

Support Firmware Upgrade

Support File Upgrade

Support SNMP

Support WEB Management

Support Console

Support CLI

Support Telnet/SSH

EEE

Support IEEE802.3az
