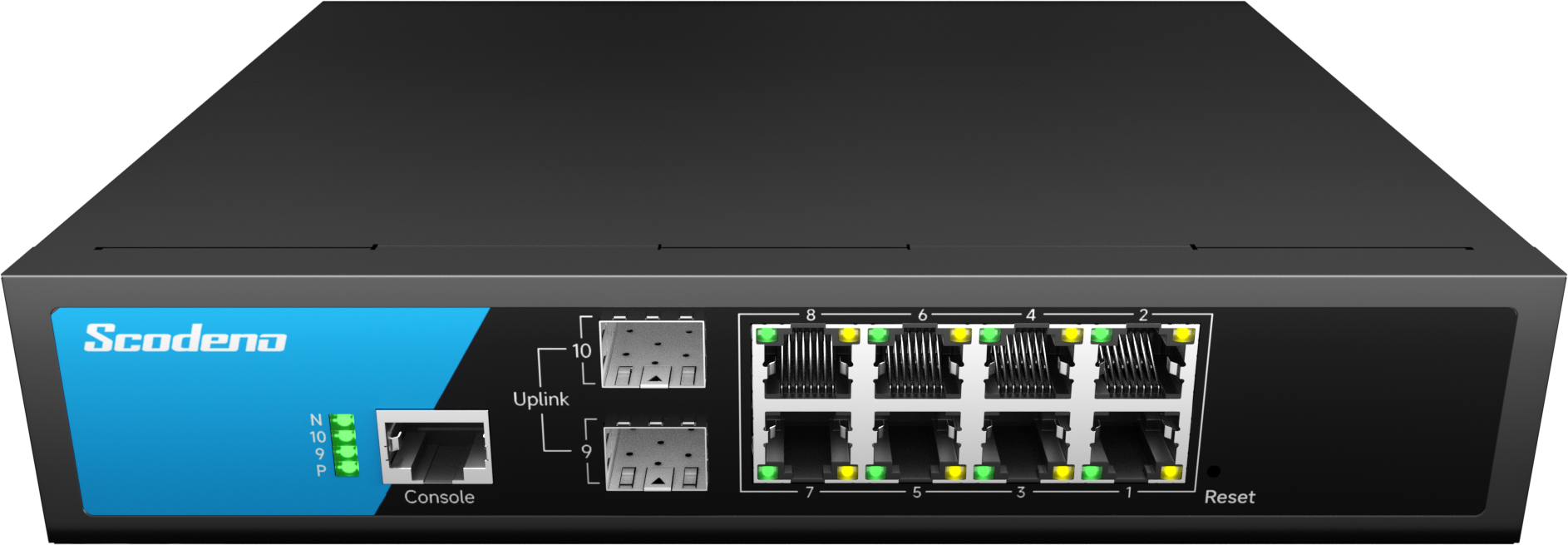

S200-10GPM-S2-AC Managed PoE Ethernet Switch

Input VoltageAC 100-240V  50/60Hz

Operating Temperature-10 ~ +50

Heat DissipationFan cooling

CertificationCCC/CE/FCC/RoHS

ESD8KV-15KV

MTBF100000H


The S200-10GPM-S2-AC 10-Port Managed PoE+ Ethernet Switch is equipped with 8x 10/100/1000BASE-T ports, 2x 1000M SFP Uplinks. 8x RJ45 Ports support both IEEE 802.3af PoE and IEEE 802.3at PoE+(up to 30W per Port) for powering attached IP phones, wireless access points, or other standards compliant PoE and PoE+ end network devices. The switch adopts the most cutting-edge Realtek chip.

This access switch delivers a compact, cost-effective solution for carrierIP MAN and enterprise networks. Based on the high-performance hardware and management platform, it supports function such as ACL, QinQ and QoS. Its simple management mode and flexible installation can meet the requirement of any scenario.


Overview
Parameter
Application
Files

1

Provider Mode Ports

Port type and quantity:

8 x 10/100/1000 Base-T+ 2x1000Base-X

Management Port

Support console

Power Supply

100-240V/AC

LED Indicators

PWR, Link/ACT LED


Network Size – length of cable

Twisted pair (TP):

0-100m(CAT5e,CAT6)

Single mode Fiber (SMF):

20/40/60/80/100KM

Multimode Fober (MMF):

550m


Network Topology

Ring topology

Support

Star topology

Support

Bus topology

Support

Tree Topology

Support

Hybrid topology

Support



Electrical Specifications

Input voltage

AC 100-240V 50/60Hz

Power consumption:

120W

Main board power

10W


PoE Support

PoE port

1-8

PoE Protocol

802.3af802.3at

Pin Assignment

1,2+; 3,6-

PoE Management

Support


Layer 2 Switching

Switching capacity

20Gbps

Packet forwarding rate

14.88Mpps

MAC address table

8K

Buffer

4.1M

Forwarding delay

<10us

MDX/MIDX

Support

VLAN

256

GVRP VLAN

Support

Protocol VLAN

Support

Voice VLAN

Support

Surveillance VLAN

Support

MAC VLAN

Support

Ethert channel/ 802 .3ad

Support

LACP

Support

Interface Speed

Support

Duplex Mode

Support

Flow Control

Support

Jumbo frame

Support

DHCP Client

Support

SNTP Client

Support

Port Statistics

Support

Protected Ports

Support

EEE

Support

Ethernet Ring Protection Switching

Support

LLDP

Support

LLDP 802.1 TLV

Support

MSTP / RSTP / STP

Support

STP BPDU Filter

Support

STP BPDU guard

Support

STP Port Fast

Support

IGMP Snooping

Support

MLD Snooping

Support

MVR

Support


Layer 3 Route

IPV4 management

Support

IPV6 management

Support

Static Routes IPv4

32

Static Routes IPv6

32

ARP

Support

Loopback Interface

Support

DHCP Server

Support

DNS Server

Support

DNS Client

Support


Convergence

ACL

Support MAC Standard/Extended ACL

Support IPV4 Standard/Extended ACL

Support IPV6 Standard/Extended ACL

QoS

Support QoS Remarking

Support Port Trust

Support Port bandwidth

Support egress queuing bandwidth

Support SPWRR

Support COSDSCPIP Priority


Management

User Management

Support

System Log

Support

Upgrade Firmware

Support

Configuration File Download/Upload

Support

SNMP

Support SNMP V1/V2/V3

WEB

Support

Console

Support

CLI

Support

Telnet/SSH

Support

RMON

Support


Security

management channel configuration

Support

AAA

Support

802.1X

Support

MAC-Based

Support

WEB-Based

Support

DoS

Support

ARP

Support

DHCP Snooping

Support

IP Source Guard

Support

Port Security

Support

Protected Ports

Support

Storm control

Support


Equipment diagnosis

Console log

Support

RMA log

Support

Flash log

Support

Port mirroring

Support 1:1 or 1:M

Ping

Support

Traceroute

Support

Copper port test

Support

SFP transceiver information

Support

UDLD protocol

Support


Environment

Operate temperature

-10ºC to 50ºC

Storage temperature

-40ºC to 85ºC

Relative humidity

10% to 90% RH

Heat Dissipation Method

Fanless, natural cooling

MTBF

100,000H


Mechanical Dimensions

Dimensions (WxHxD):

220*161*44mm

Mounting

Desktop

Weight

1kg


EMC & INGRESS PROTECTION

Surge protection of Power

6 kV (line/earth), 2 kV (line/line)

Surge protection of Ethernet

4 kV (line/earth), 2 kV (line/line)

Electrostatic discharge (ESD)

8 kV contact discharge15 kV air discharge

Free fall

0.5m


Accessories

Accessories

Device, Power cord, User manual
