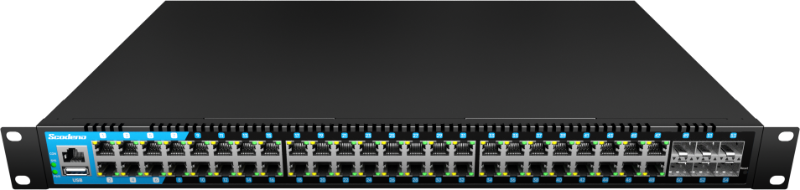

S200-54XGPM-X6-ACR Managed Ethernet PoE Switch

Input VoltageAC 100-240V  50/60Hz

Operating Temperature-10 ~ +50

Heat DissipationFanless

EnclosureIP40, Aluminum

CertificationCCC/CE/FCC/RoHS

ESD8KV-15KV

MTBF100000H


The S200-54XGPM-X6-ACR 48-Port Managed PoE Ethernet Switch is equipped with 48*10/100/1000 BASE-T ports, PoE/PoE+ support, 6*10GE SFP BASE-X Uplinks. The switch adopts the most cutting-edge Realtek chip. This access switch delivers a compact, cost-effective solution for carrier ’IP MAN and enterprise networks. Based on the high-performance hardware and management platform, it supports function such as ACL, QinQ and QoS. It’s simple management mode and flexible installation can meet the requirement of any scenario.



Overview
Parameter
Application
Files

1

Provider Mode Ports

Port type and quantity:

48x 10/100/1000 Base-TX, 6*10G SFP

Management Port

Support console

Power Supply

220V/AC

LED Indicators

PWRSYSLink/ACT LED


Network Size – length of cable

Twisted pair (TP):

NON-PoE: 0-100 mCAT5e,CAT6

PoE(1000Mbps: 0-100 mCAT5e,CAT6

PoE(10Mbps: 0-250 mCAT5e,CAT6

Single mode Fiber (SMF):

20/40/60/80/100 km

Multimode Fober (MMF):

550 m

Network Topology

Ring topology

Support

Star topology

Support

Bus topology

Support

Tree Topology

Support

Hybrid topology

Support



Electrical Specifications

Input voltage

AC 100-240V 50/60Hz

Power consumption:

720W (PoE)


PoE /POE+ Support

PoE port

1-48

PoE Standard

802.3AF802.3AT

Pin segment

12+/ 36-

PoE management

Support


Layer 2 Switching

Switching capacity

216Gbps

Packet forwarding rate

160.7Mpps

MAC address table

32 K

Buffer

16 M

Forwarding delay

<10 us

MDX/MIDX

Support

VLAN

3k

GVRP

Support

Protocol VLAN

Support

Voice VLAN

Support

Surveillance VLAN

Support

MAC VLAN

Support

Ethert channel/ 802 .3ad

Support

LACP

Support

interface Speed

Support

Duplex Mode

Support

Flow Control

Support

Jumbo frame

Support

DHCP Server

Support

DHCP Client

Support

DNS Server

Support

DNS Client

Support

SNTP Client

Support

Port Statistics

Support

Protected Ports

Support

EEE

Support

Ethernet Ring Protection Switching

Support

LLDP

Support

LLDP 802.1 TLV

Support

MSTP / RSTP / STP

Support

STP BPDU Filter

Support

STP BPDU guard

Support

STP Port Fast

Support

IGMP Snooping

Support

MLD Snooping

Support

MVR

Support


Layer 3 Route

IPV4 management

Support

IPV6 management

Support

IPV4 dynamic routing

OSPF, RIP

Static Routes IPv4

Support

Static Routes IPv6

Support

ARP

Support

Loopback Interface

Support


Convergence

ACL

Support MAC Standard/Extended ACL

Support IPV4 Standard/Extended ACL

Support IPV6 Standard/Extended ACL

QoS

Support QoS Remarking

Support Port Trust

Support Port bandwidth

Support egress queuing bandwidth

Support SPWRR

Support COS, DSCP, IP Priority


Management

User Management

Support

System Log

Support

Upgrade Firmware

Support

Configuration File Download/Upload

Support

SNMP

Support SNMP V1/V2/V3

WEB

Support

Console

Support

CLI

Support

Telnet/SSH

Support

RMON

Support


Security

management channel configuration

Support

AAA

Support

802.1X

Support

MAC-Based

Support

WEB-Based

Support

DoS

Support

ARP

Support

DHCP Snooping

Support

IP Source Guard

Support

Port Security

Support

Protected Ports

Support

storm control

Support


Equipment diagnosis

Console log

Support

RAM log

Support

Flash log

Support

Port Mirror

Support11 or 1M

Ping

Support

Traceroute

Support

Electrical Port Test

Support

SFP transceiver information

Support

UDLD protocol

Support


Environment

Temperature

Operating Temperature-10ºC to 50ºC

Storage Temperature-40ºC to 85ºC

Relative humidity

Operation Humidity10% to 90% RH

Storage Humidity5% to 90% RH

Heat Dissipation Method

Non-PoEFanless, natural dissipation

PoEfan

MTBF

100,000H


Mechanical Dimensions

Dimensions (WxHxD):

440 mm x 270 mm x 44 mm

Mounting

Standard Rack Mounted

Weight

PoE4.2 kg


EMC&INGRESS PROTECTION

Surge protection

Power line: 4 kV (line/earth), 2 kV (line/line)

Data line: 6 kV (line/earth), 2 kV (line/line)

Electrostatic discharge (ESD)

8 kV contact discharge15 kV air discharge

Free fall

0.5 m


Accessories

Accessories

Device, Power cord, User manual
